TIM Subscriber Diagnostics - Polling intern
Polling list internal tab
If a TIM with master function is selected before opening the dialog, the Polling list internal tab
displays the data of the station for the known subscribers connected to the connected TIM
over a dedicated line.

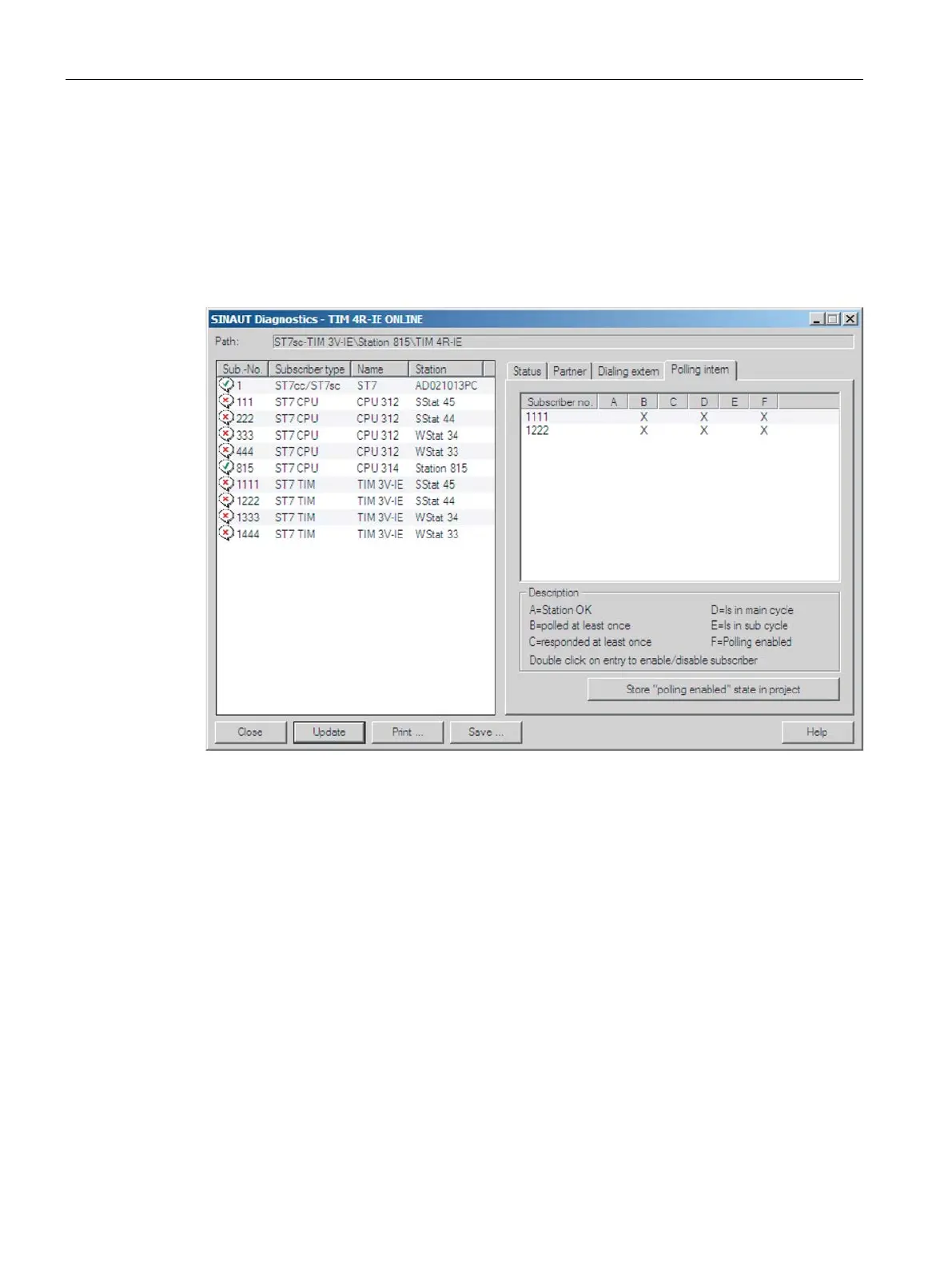

Figure 4-5 TIM subscriber diagnostics dialog, Polling list internal tab
By double-clicking on a subscriber in the polling list, the Disable/Enable subscribers dialog
opens in which the configured and current enable status of the selected subscriber is
displayed from the perspective of the master TIM. The current enable status can be
changed.
If you change the state to Disable in this dialog, the configured state is adopted again next
time the master TIM is reset.
The following functions are available only for the TIM 4R-IE:
● The settings for enabling subscribers are stored permanently.
● Using the button below the list, you save the current enable state in the STEP 7 project of
the connected PG/PC.
