Siemens SIMATIC TeleControl DNP3 - TIM Subscriber Diagnostics - Status Tab

Diagnostics
4.5 SINAUT special diagnostics
Configuration - DNP3
Configuration Manual, 11/2018, C79000-G8976-C508-01
147
4.5.3.2
TIM Subscriber Diagnostics - Status tab
Status tab
The Status tab displays the following information on the subscriber selected on the left in the
list of known subscribers from the perspective of the connected TIM module:
● In the General field:
– Reachability of the known subscriber. Entries indicating problems are highlighted in
color.
– Any connection disruptions
– Information on gateways to the known subscriber (subscriber local/remote)
● In the Connection field:
– Interface of the connection
– Type of connection
– Connection enable
– Information on calling
– Status of data communication
● In the Special field:
– Information on the operation of the send buffer of the known subscriber

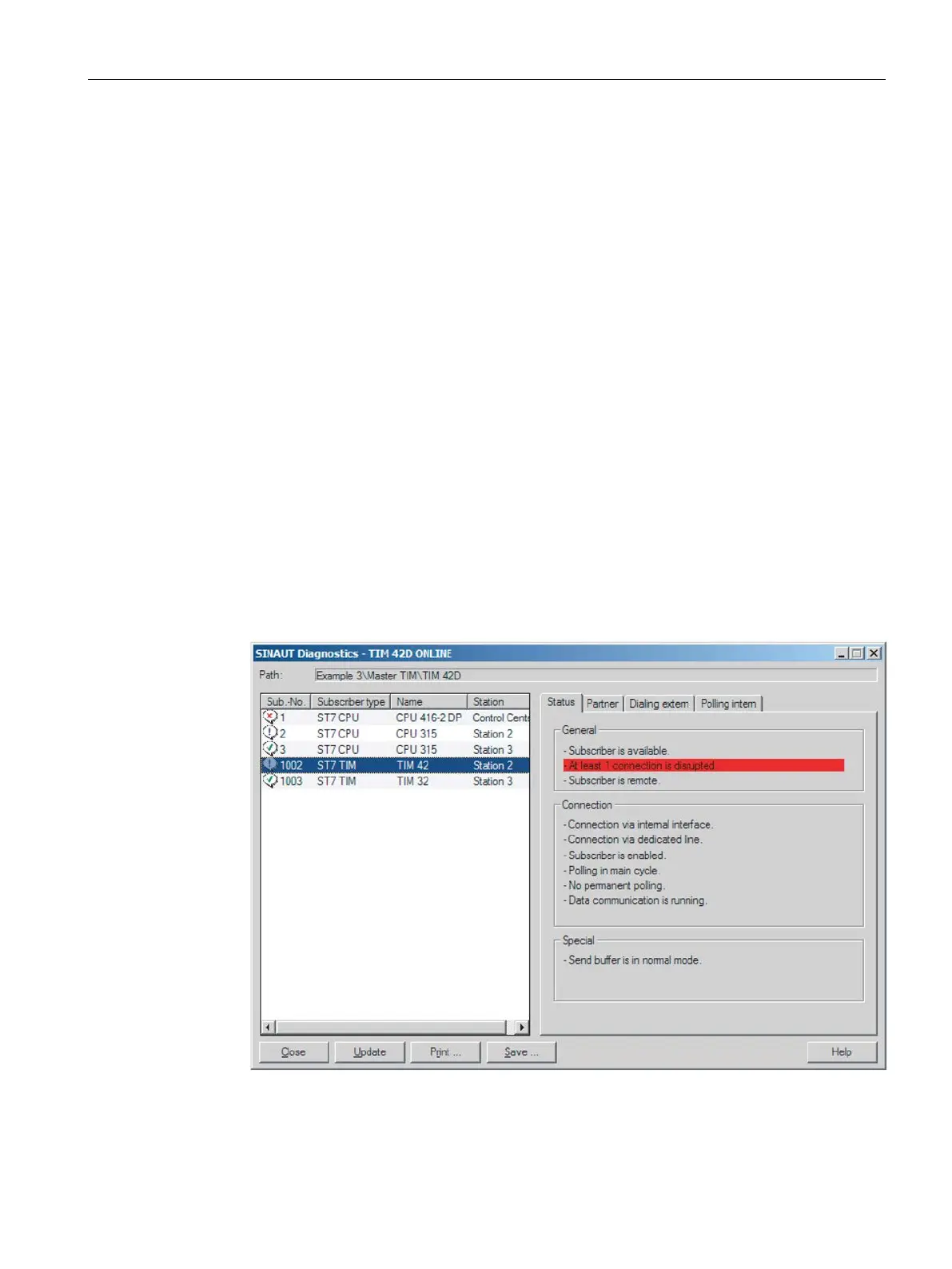

Figure 4-2 TIM subscriber diagnostics dialog, Status tab
