Diagnostics
4.5 SINAUT special diagnostics
Configuration - DNP3
Configuration Manual, 11/2018, C79000-G8976-C508-01
143
4.5.2.10
TIM diagnostics - MSC Communication tab
MSC communication tab
This tab exists only for a TIM 4R-IE as MSC master station.

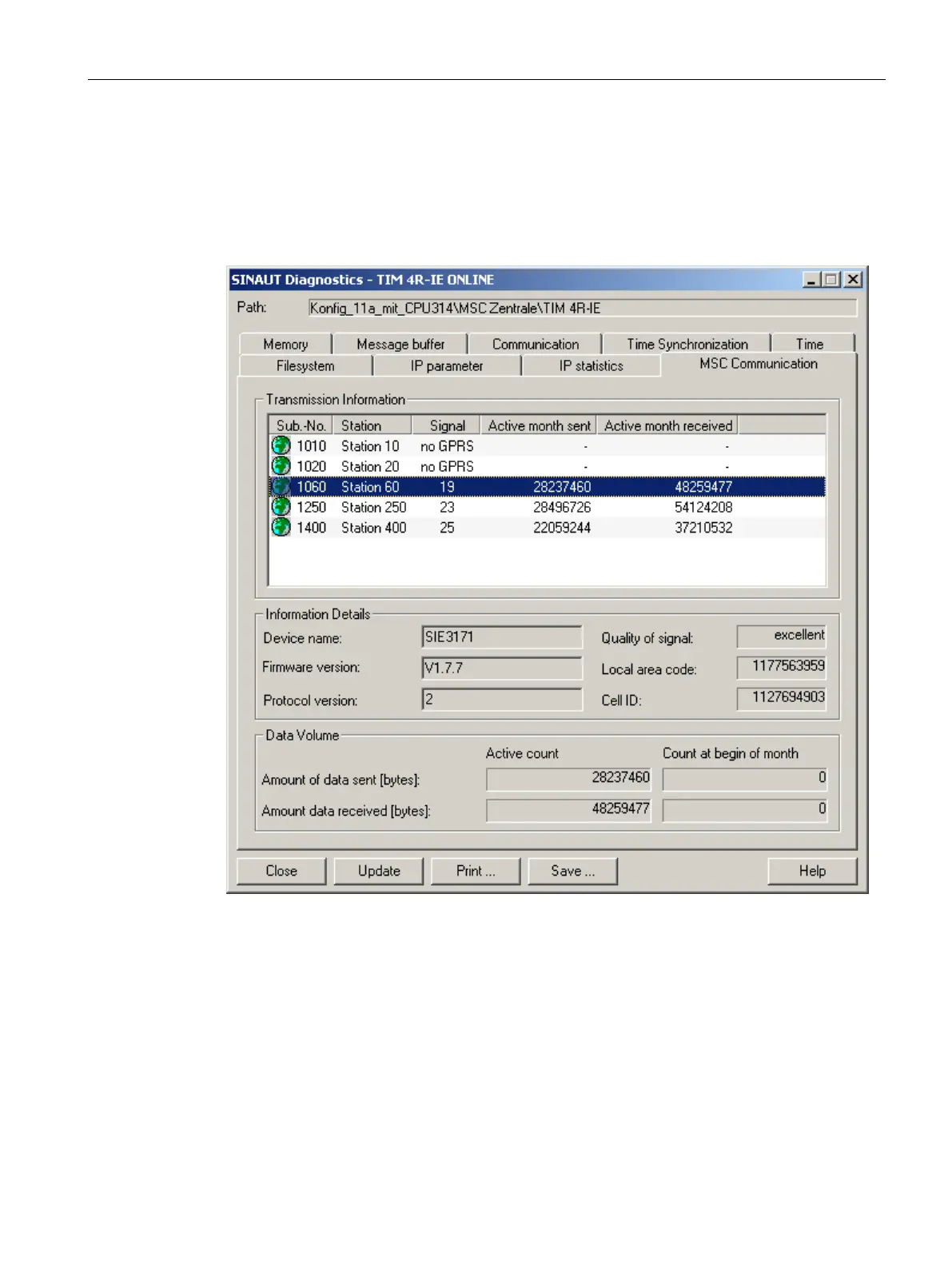

Figure 4-1 SINAUT diagnostics dialog, MSC communication tab
