TD7onTIM diagnostics
4.5.4.1
TD7onTIM Diagnostics - functions
Description of the functions
Note
The TD7onTIM diagnostics function is available only for TD7onTIM
-
capable TIM modules on
which parameters were set for the TD7onTIM software (for example TIM
3V-IE).
TD7onTIM diagnostics provides information on the status of the data transmission of the
TD7onTIM software package of the TIM module selected in the SINAUT subscriber list.

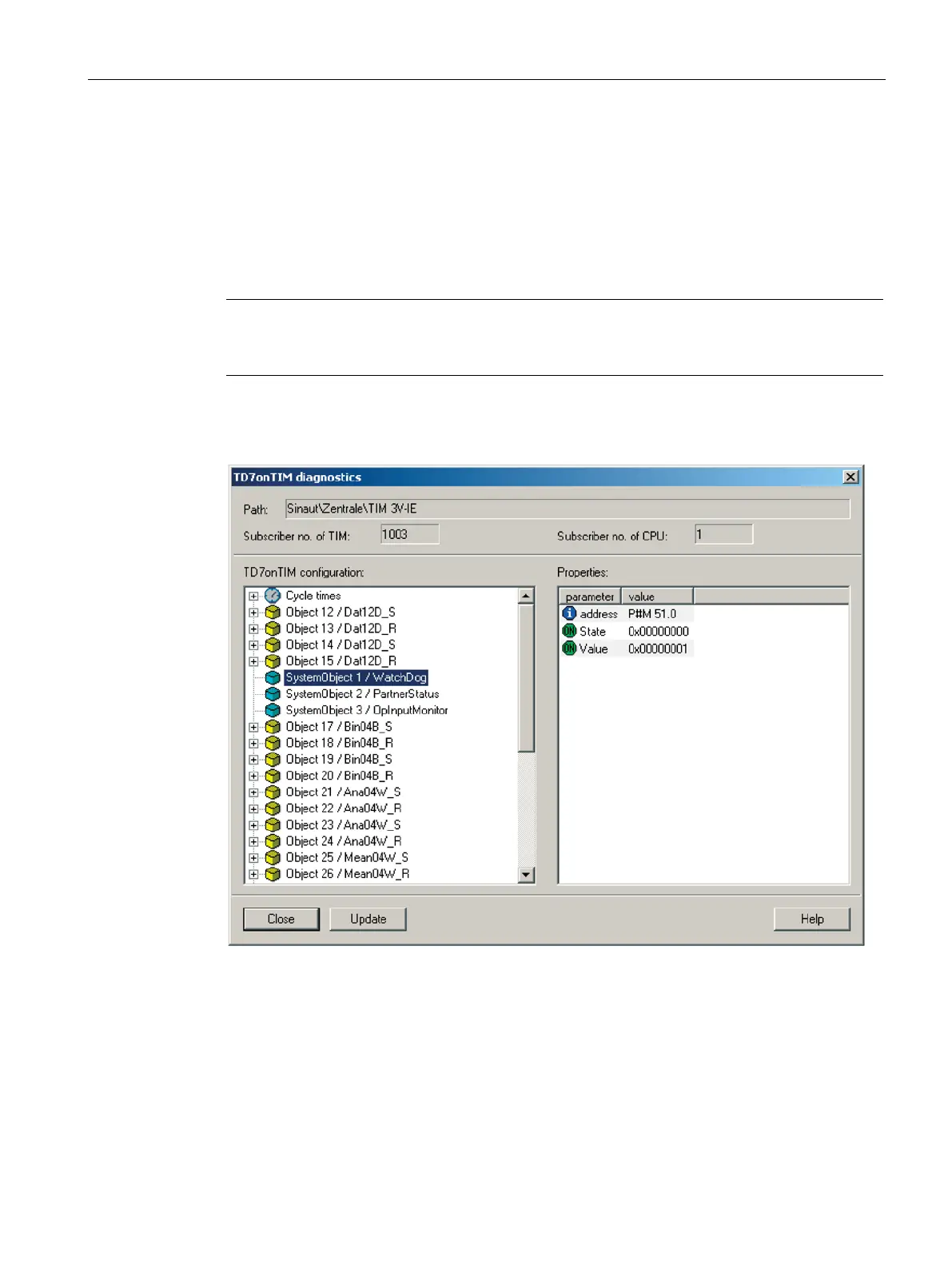

Figure 4-6 TD7onTIM diagnostics dialog with system object parameters based on the example of
WatchDog
In keeping with the parameter assignment of the TD7onTIM, the diagnostic functions are
displayed for the following objects:
● Status of system objects
● Status of data objects
● Status of the input and output channels
