WBM of the TIM 1531 IRC
C.3 General functions of the WBM
Configuration - DNP3
168 Configuration Manual, 11/2018, C79000-G8976-C508-01
Connection to the Web server of the TIM
Follow the steps below to connect the PC to the Web server of the TIM:
1. Open the Web browser.
2. Enter the address (IP address / host name) of the TIM (or the router) in the address line
of the Web browser either via the HTTP or HTTPS protocol:
– http://<Address>
– https://<Address>
When selecting the protocol, make sure that it is released in the configuration of the TIM
("Web server" tab).
With HTTPS connections via the Internet when you log in the first time, a warning can
appear that the Web page is not secure or that the certificate is not trustworthy. If you are
sure that you have entered the correct address, ignore the message. If necessary add the
connection to the exceptions (depending on the Web browser).
The logon window of the TIM opens.
3. In the "User name" input box, enter the name of a user or administrator configured in
STEP 7.
The rights assigned in "Global security settings" of the STEP 7 project apply.
4. Enter the corresponding password in the "Password" input box.
5. Click the "Log in" button.
The Web server opens with the start page:
General functions of the WBM
You set the WBM language with the setting of the browser being used.
The following languages are supported:
● German
● English

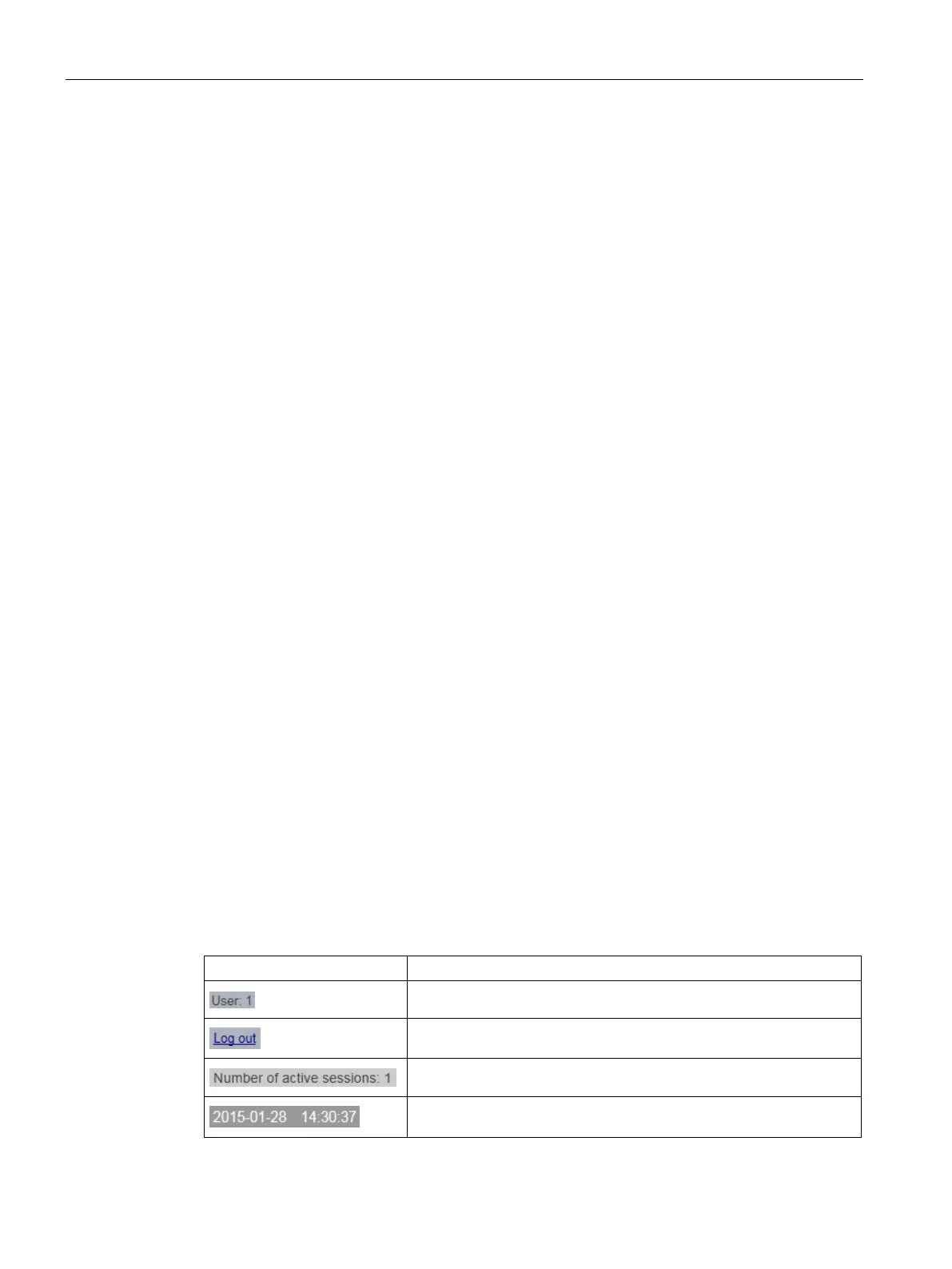

Displays and symbols in the title bar
The displays and symbols in the WBM title bar have the following meaning:
Name of the currently logged in user
User logout
Number of connections to a PC
Date and time of the last page update of the WBM in local time of the
TIM (yyyy-mm-dd hh:mm:ss)
