Diagnostics
4.6 Processing status of the messages (e-mail)
Configuration - DNP3
Configuration Manual, 11/2018, C79000-G8976-C508-01
153

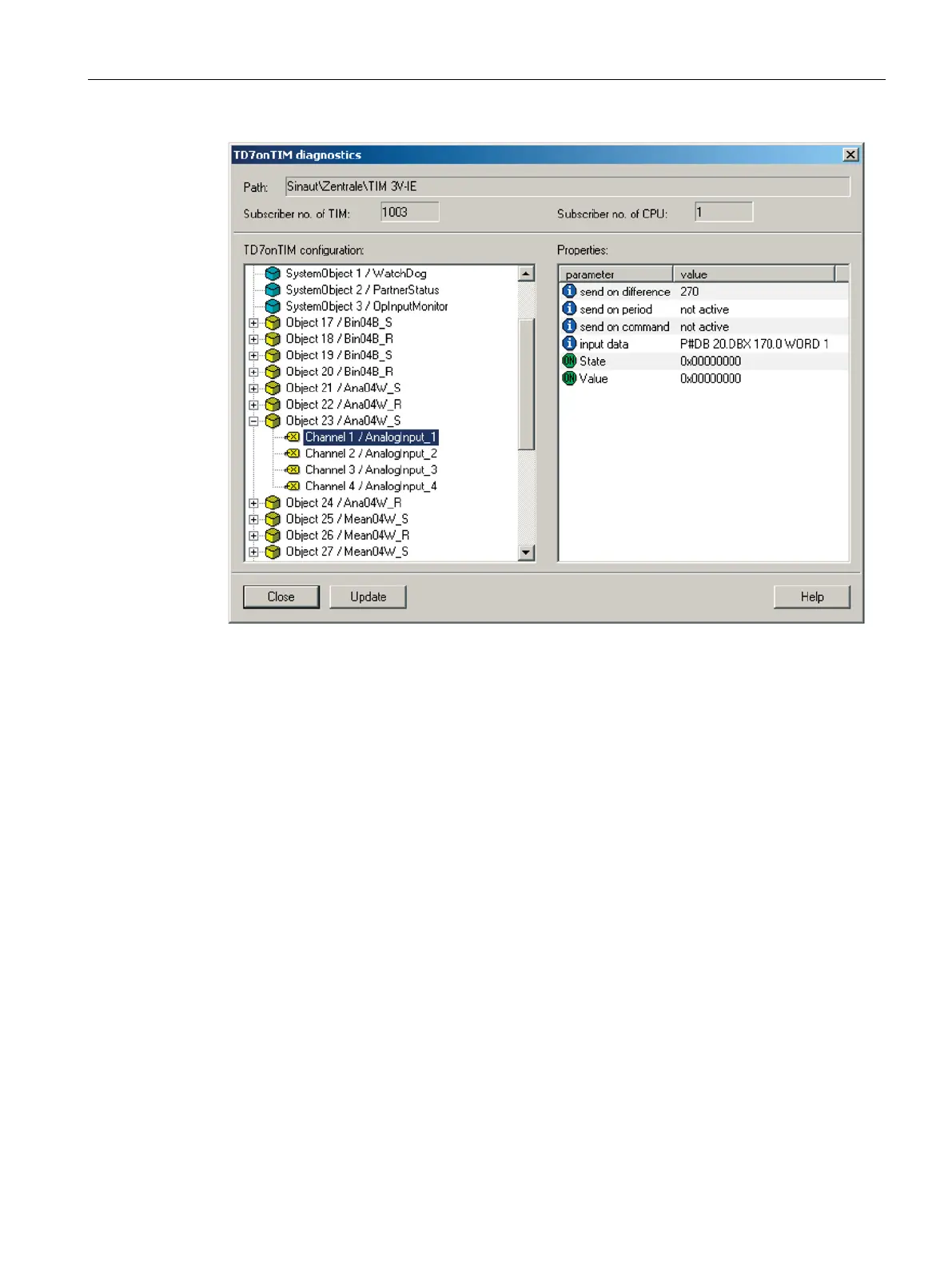

Figure 4-7 TD7onTIM diagnostics dialog with channel parameters based on the example of the
Send analog value channel
Processing status of the messages (e-mail)
Processing status of messages
If this option is enabled in the "Trigger" tab of the message configuration of STEP 7, a status
is output on the CP that provides information about the processing status of the sent
message. The status is written to a PLC tag of the type DWORD. Select this tag via the "PLC
tag for processing status" box.
