WBM of the TIM 1531 IRC
C.4 Start page
Configuration - DNP3
170 Configuration Manual, 11/2018, C79000-G8976-C508-01
Start page

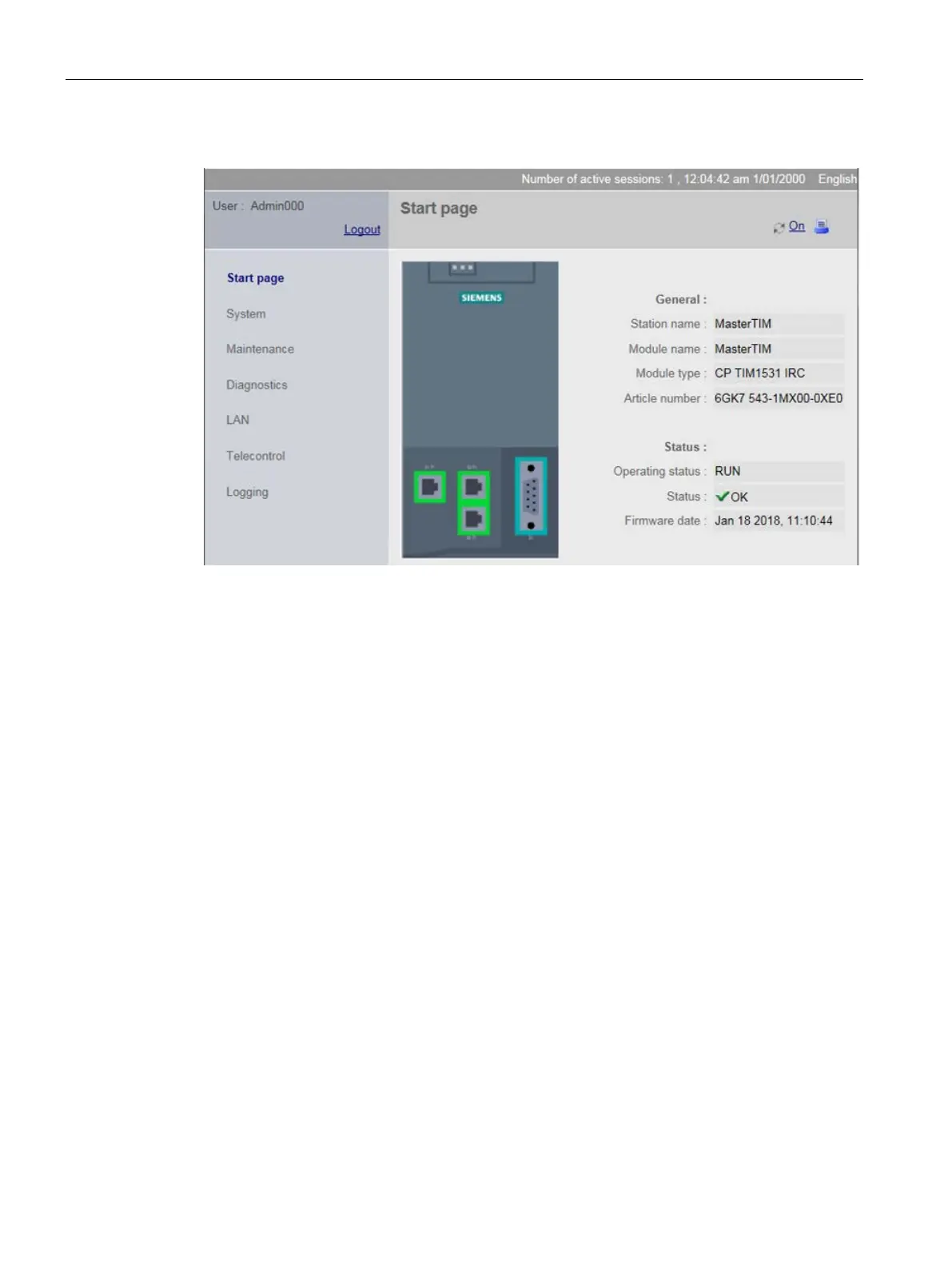

Figure C-1 Start page of the WBM
The page shows general data of the module.
General
●
Station name
Parameter configured in STEP 7
●
Module name
Parameter configured in STEP 7
●
Module type
●
Article number
Status
●
Operating status
Current operating status of the TIM
●
Status
Status of the firmware startup of the TIM:
– TIM started up free of errors
– Startup aborted with error
●
Firmware date
Date the firmware currently being used was generted
Format: MMM DD YYYY, hh:mm:ss
