Configuration in STEP 7
5.6 Configuring networks and network nodes in STEP 7 / NetPro
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
103
● Operating mode:
This parameter cannot be configured for DNP3 and has no significance.
● Extra transmission time:
This parameter cannot be set for DNP3 and has no significance.
● Number of spontaneous messages:
This parameter cannot be configured for DNP3 and has no significance.
● Limit for locked messages:
This parameter cannot be configured for DNP3 and has no significance.
The Dedicated Line tab contains special parameters required only when using dedicated
lines.

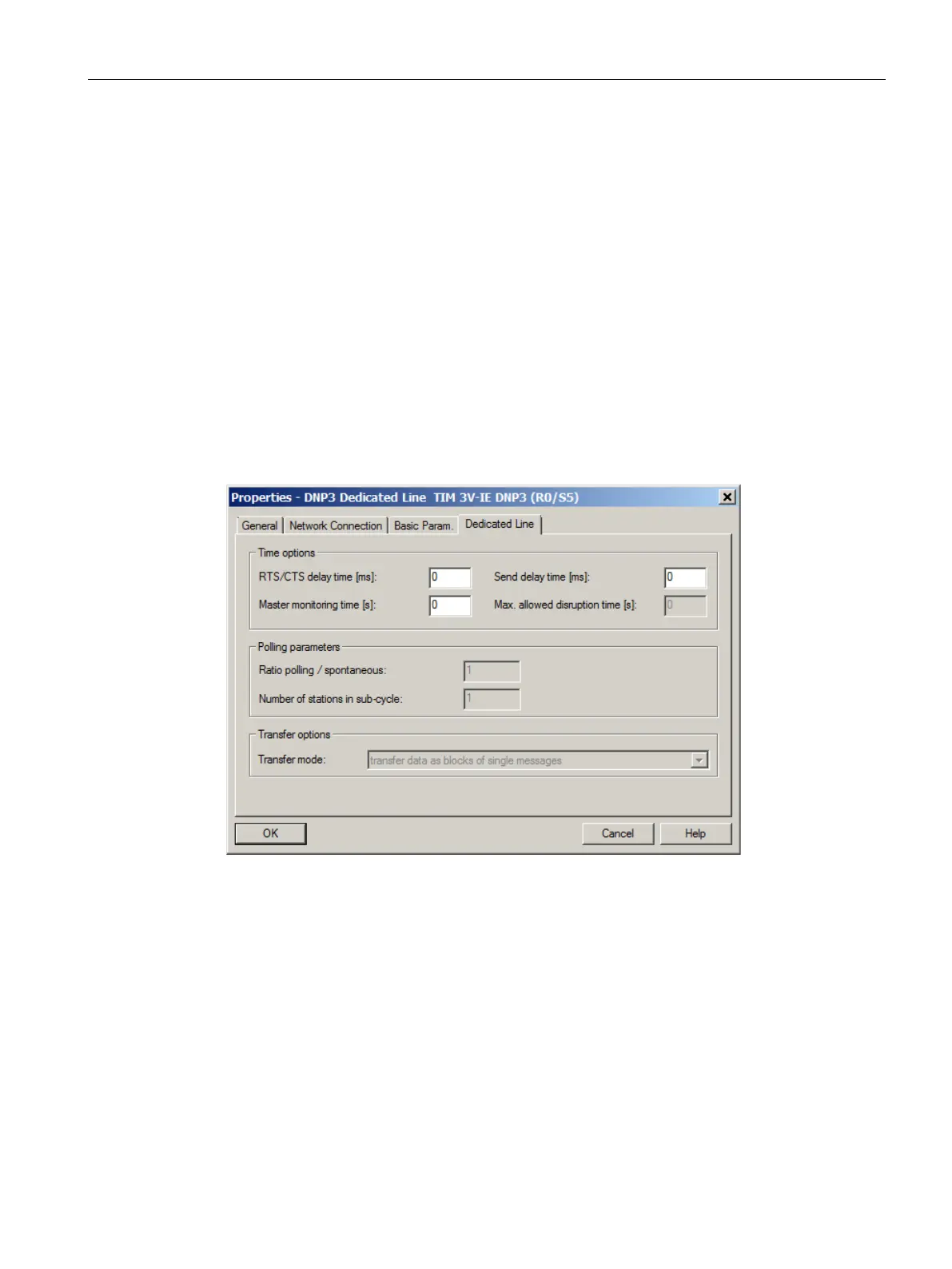

Image 5-18 Properties - DNP3 Dedicated Line TIM dialog, Dedicated Line tab
The parameters for dedicated lines include:
