Installation and commissioning
4.1 Installation guide
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
61

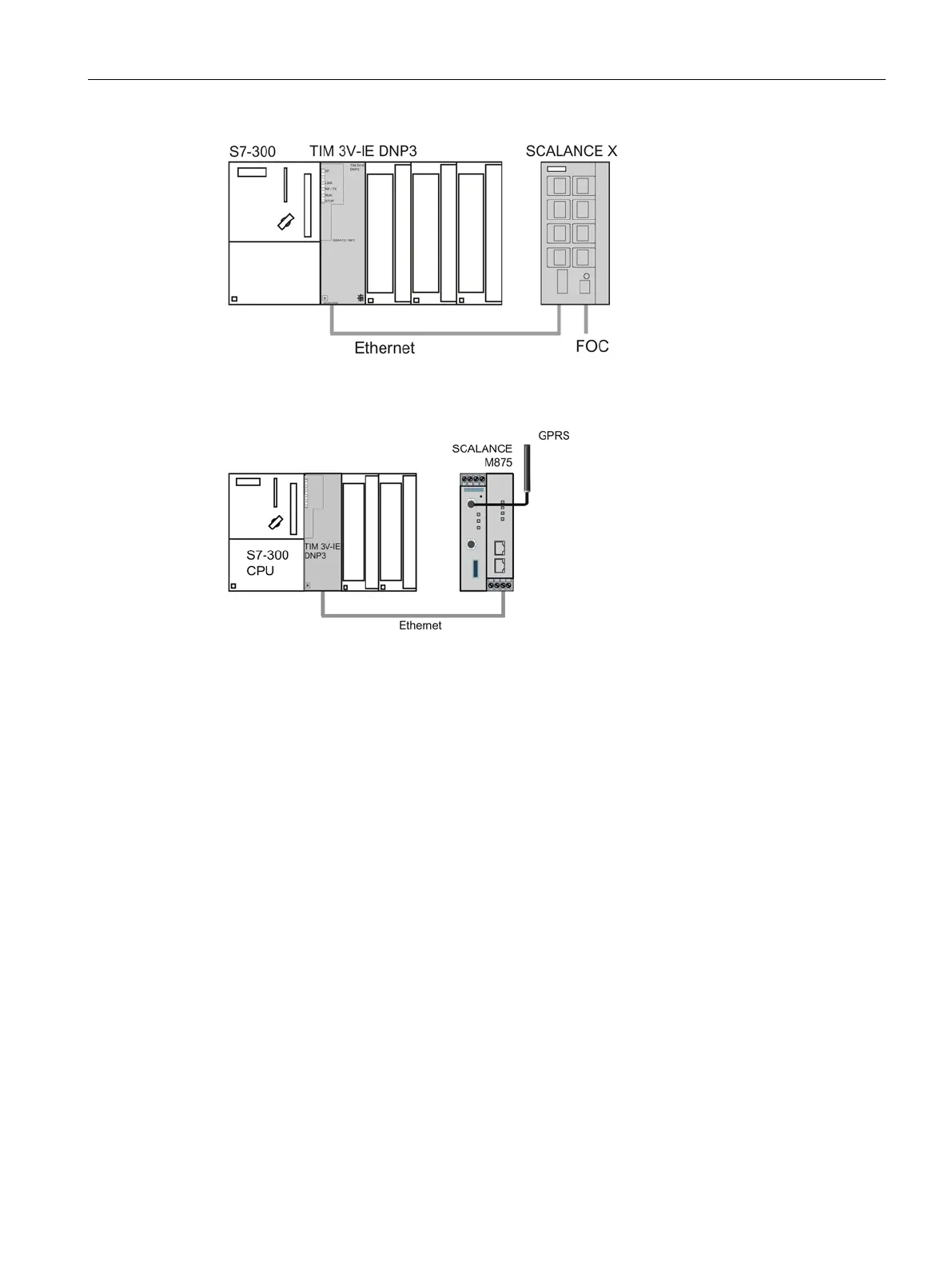

Image 4-3 SIMATIC S7-300 with TIM 3V-IE DNP3 connected to a fiber-optic cable via a
SCALANCE X-200
Image 4-4 SIMATIC S7-300 with TIM 3V-IE DNP3, 1 GPRS access via SCALANCE M875
4.1.3
Installation of a stand-alone TIM 4R-IE DNP3
Installation
When installed separately, the TIM is normally installed on a separate S7-300 standard rail,
when necessary along with a power supply module to supply the TIM with 24 V. The bus
module connector that ships with each TIM is not required here, because the TIM and
modem are only connected together via a 6NH7701-xxx connecting cable.
