LEDs and connectors
3.2 TIM 4R-IE DNP3
TIM DNP3
56 System Manual, 12/2015, C79000-G8976-C253-04

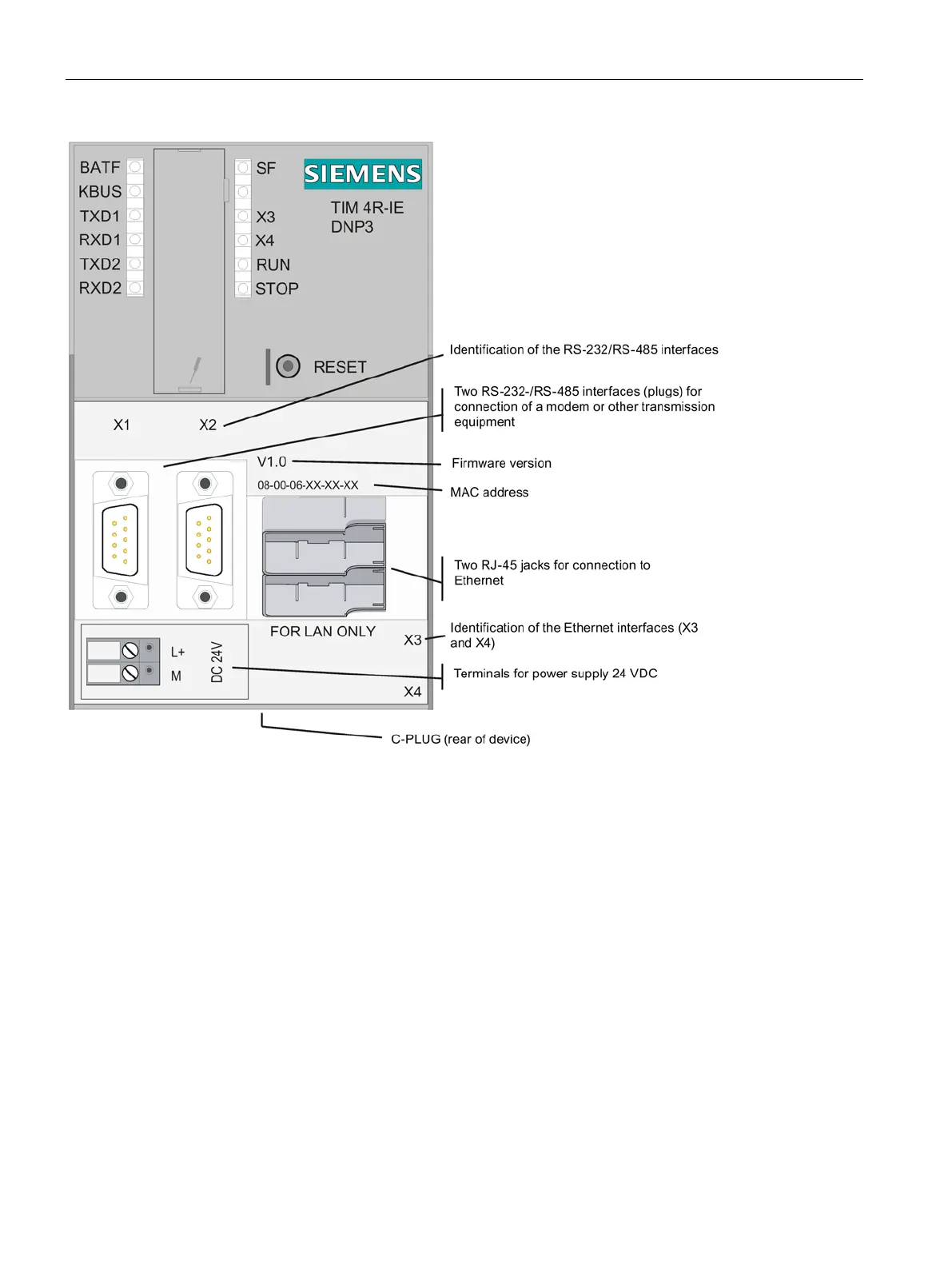

Image 3-4 Front view of the TIM 4R-IE DNP3 with front panel removed
On the rear of the housing, there is an opening for the optional C-PLUG. The configuration
data of the TIM 4R-IE DNP3 can be stored on the C-PLUG. If service is required, a
standalone TIM can be replaced without needing a PG.
3.2.2
LEDs of the TIM 4R-IE DNP3
The following table summarizes the meaning of the LEDs during normal operation. The
display during startup is explained in the section "Startup activities of the TIM 4R-IE DNP3
(Page 73)".
