Siemens SIMATIC TIM 3V-IE DNP3 User Manual

TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
77
Configuration in STEP 7
5
5.1
Overview
5.1.1
The SINAUT configuration software in the SIMATIC world
The SINAUT configuration software is used to configure and assign parameters for the
specific properties of telecontrol systems. With this software, the user can implement and set
the parameters for the telecontrol components in a STEP 7 project.

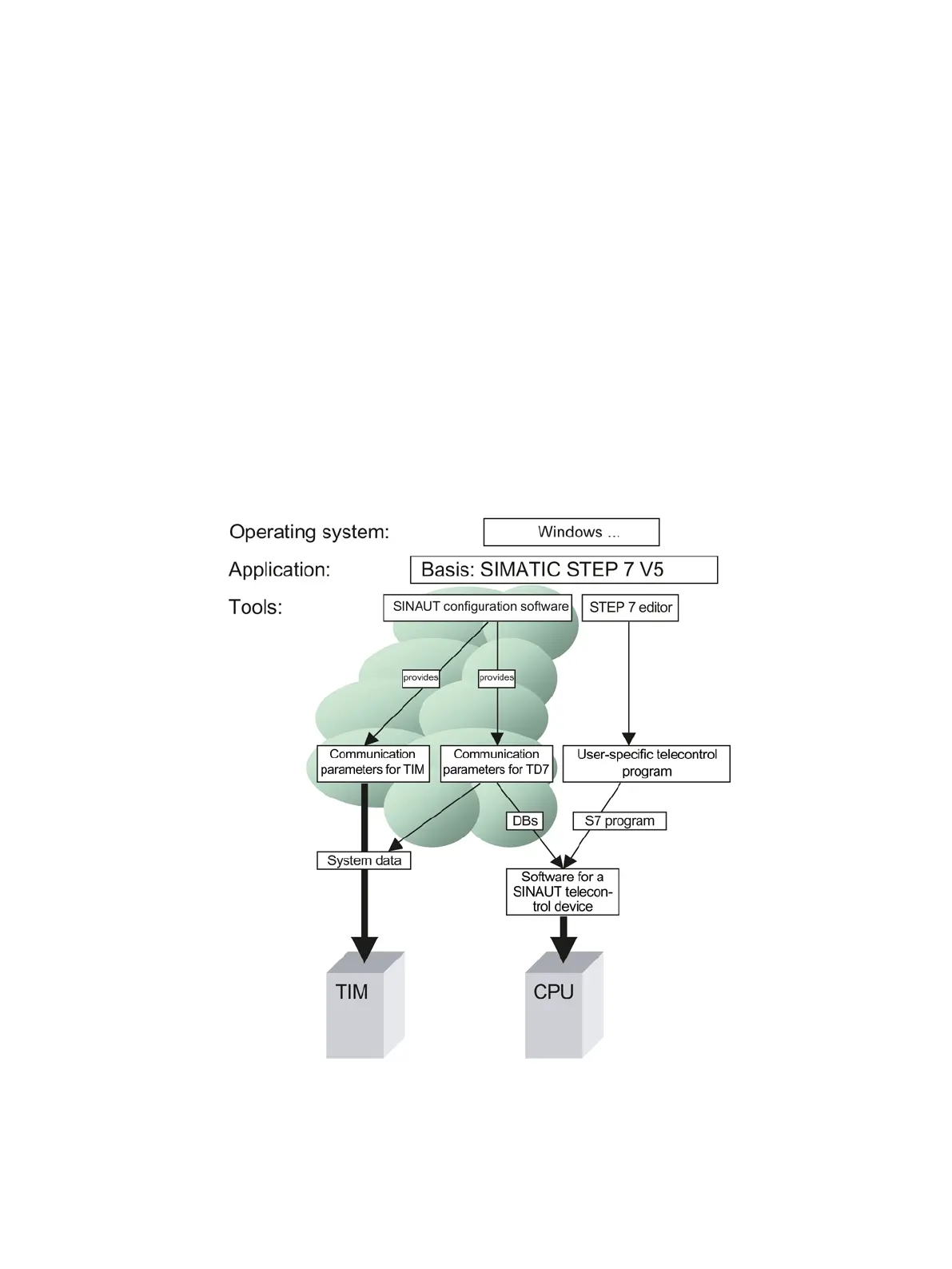

The following figure shows where the SINAUT configuration software fits into the overall
system of the SIMATIC world. The areas with the "cloud" behind them are covered by the
SINAUT configuration software.
Image 5-1 The SINAUT configuration software within the overall system
The STEP 7 package provides the tools for configuring LANs.
