Siemens SIMATIC TIM 3V-IE DNP3 - Connecting Cables for WAN Attachment with LTOP

Accessories
A.3 Connecting cables
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
325

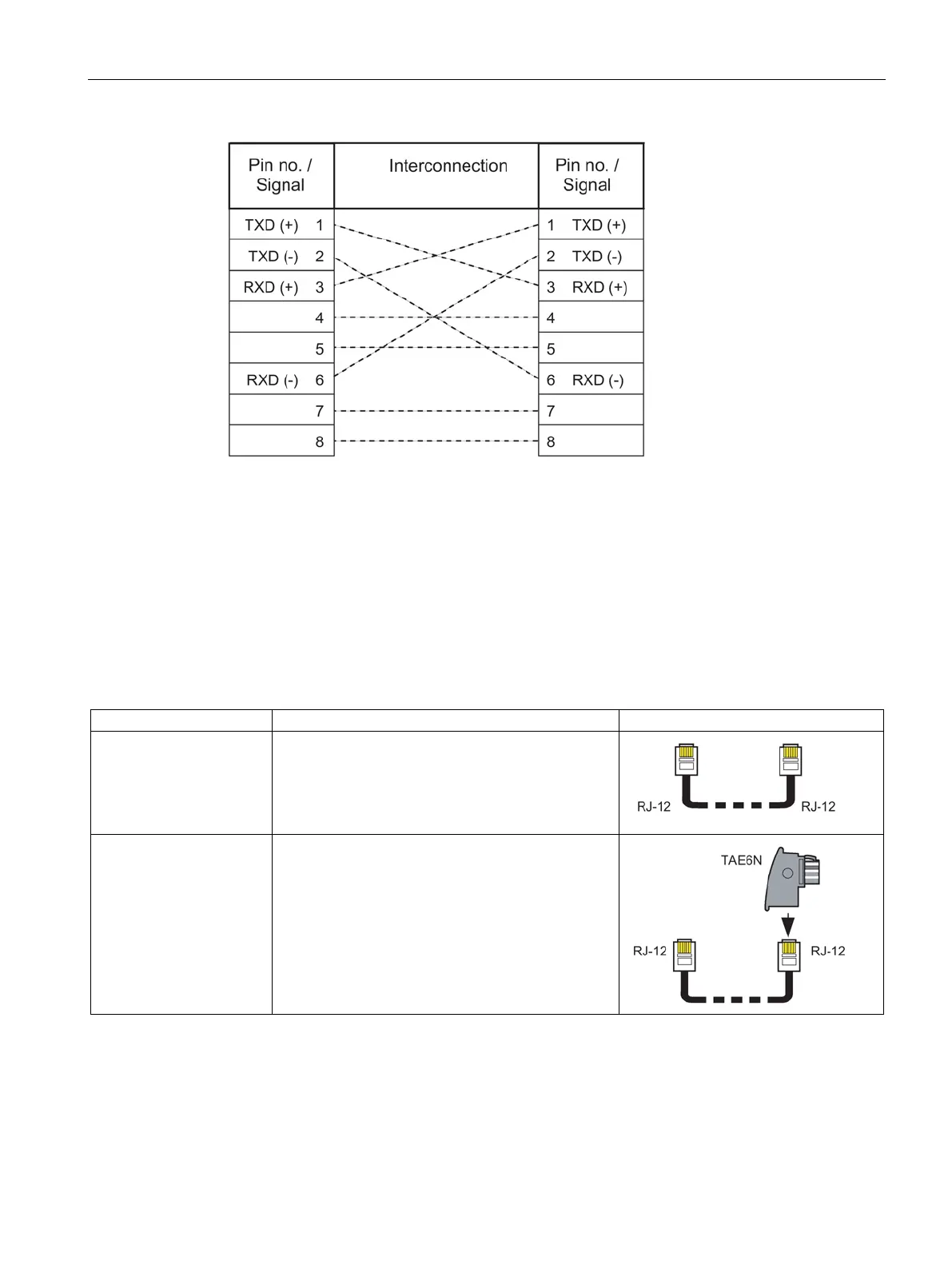

Image A-8 Pinout of a crossover Ethernet RJ-45 cable
The cable must be suitable for the 10Base-TX or 100Base-TX specification.
A.3.2
Connecting cables for WAN attachment with LTOP
A 6NH7700-xxx connecting cable ships with every MD2 / MD3 modem. This can be used to
connect the modem to the relevant WAN network.
Table A- 2 WAN connecting cables
Order no.
Description
Illustration
6NH7700-2AR60 Connecting cable with 2 x RJ-12 plugs for connection to an
MD2 modem (RJ-12) with an LTOP overvoltage protection
module (RJ-12).
Cable length 6 m
6NH7700-3BR60 Connecting cable with 2 x RJ-12 Western plug and snap-
on TAE6N plug to connect an MD3 modem (RJ-12) to a
telephone jack (TAE6N) or an LTOP overvoltage protection
module (RJ-12) if the MD3 modem is being operated as a
dedicated line modem.
Cable length 6 m
With DNP3, the TAE6N plug is not required.
