Network structures and configurations
2.6 Configuration variants with classic and IP-based WAN
TIM DNP3
48 System Manual, 12/2015, C79000-G8976-C253-04
2.6
Configuration variants with classic and IP-based WAN
Dedicated line configurations

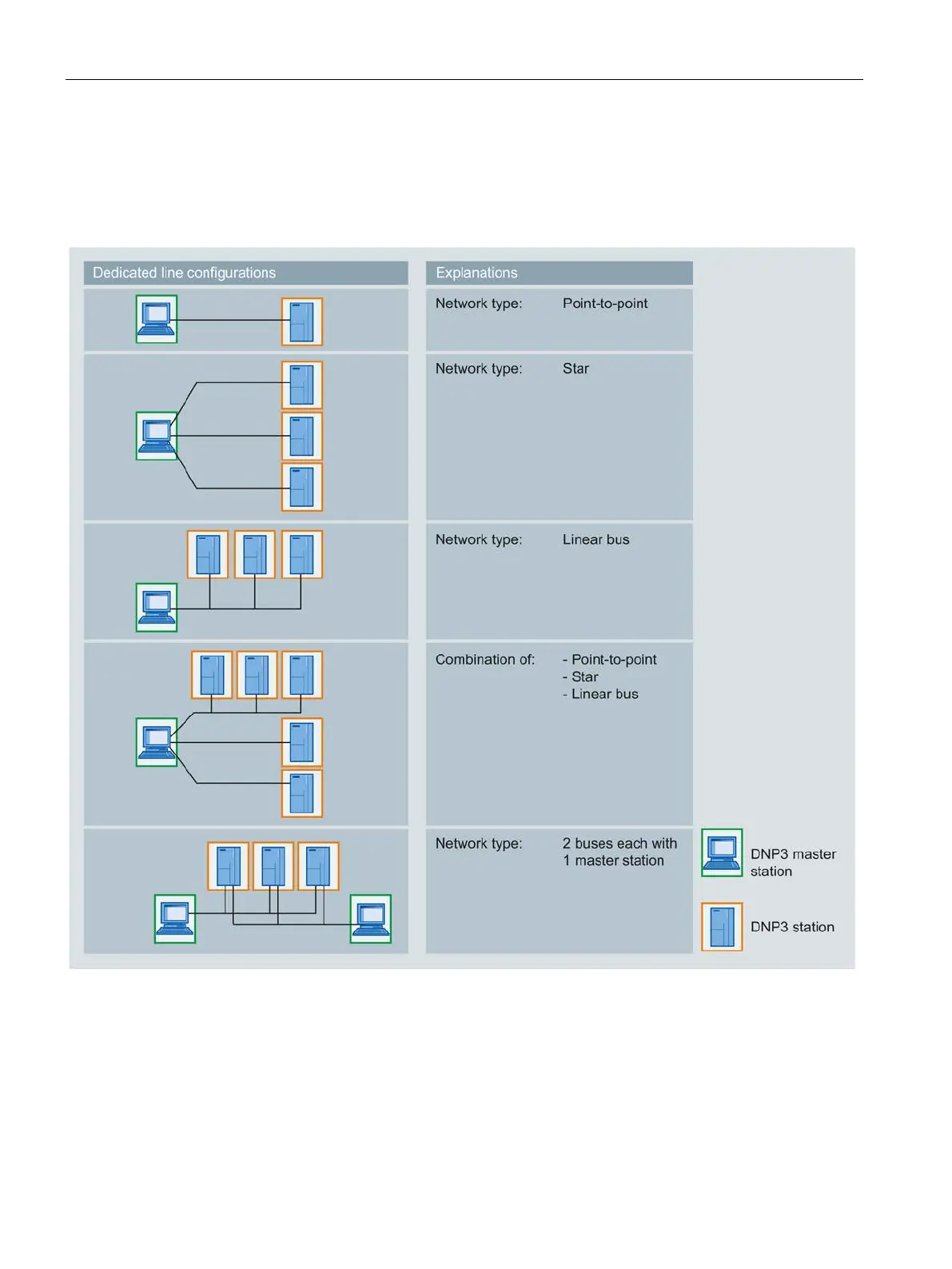

Image 2-6 Examples of dedicated line configurations
