3.2 TIM 4R-IE DNP3
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
55
3.2
TIM 4R-IE DNP3
3.2.1
Display elements, connectors and buttons

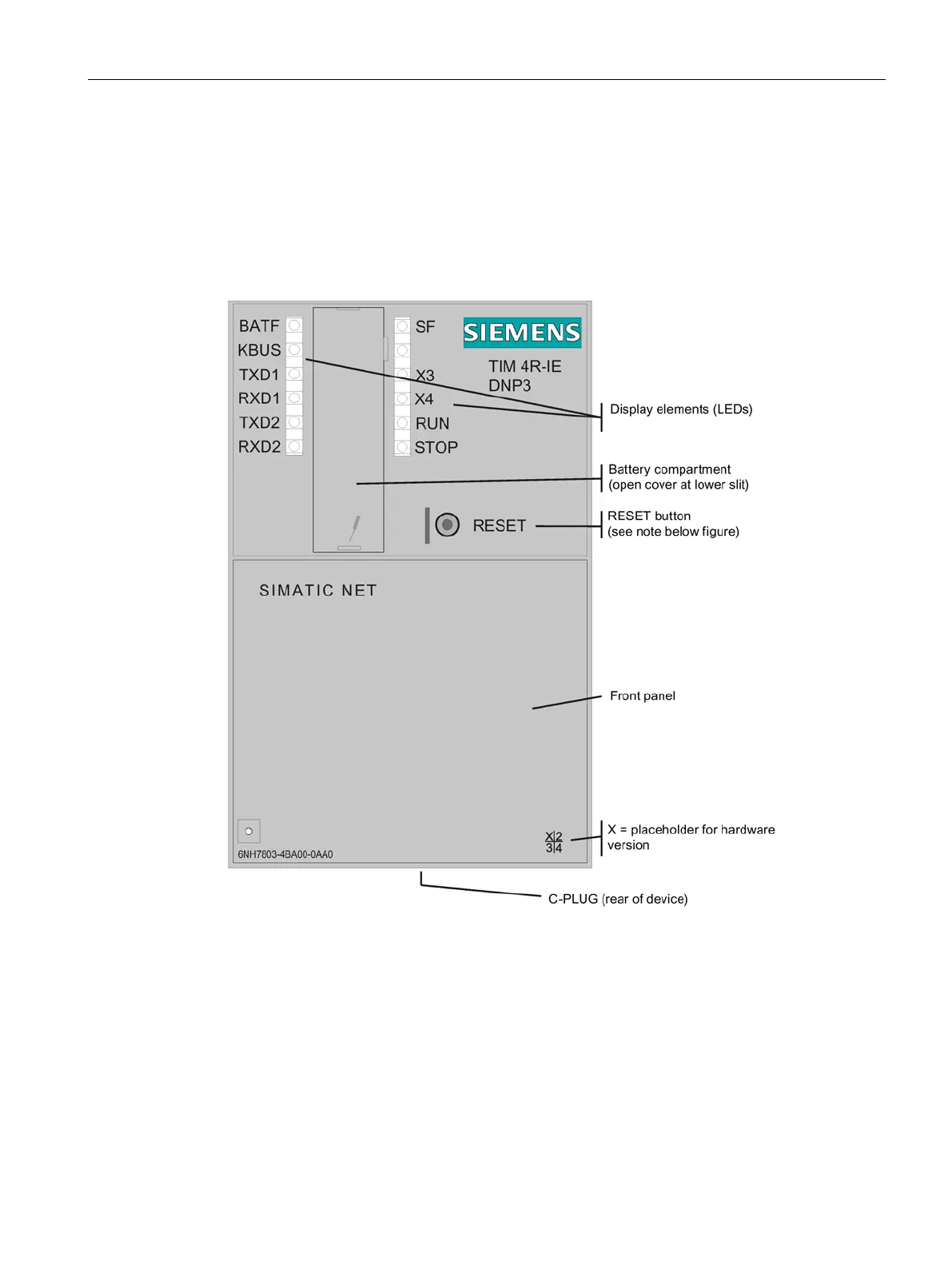

Image 3-3 Front view of the TIM 4R-IE DNP3 with closed front panel
For information on the RESET button, refer to "Default startup" in the section Startup
activities of the TIM 4R-IE DNP3 (Page 73).
