The SINAUT Configuration Tool
6.6 TD7onTIM
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
175
6.6.6
Parameters specific to the destination subscribers
Core statement
Each TIM with TD7onTIM can exchange data with one or more partners, known as
destination subscribers. Which subscribers in the project can be destination subscribers
depends on the connection configuration. There, you specify which TIM with TD7onTIM will
have a connection to which subscriber in the network.
The destination subscriber of a DNP3 station is always a DNP3 master station.
Several settings are required for each of the possible destination subscribers that apply to
data traffic between the TD7onTIM of a project and this subscriber.
To set the parameters specific to destination subscribers, open the TD7 on TIM directory and
select the "All Destination Subscribers" directory. The list displays all potential destination
subscribers of the TD7-compliant TIM modules.
Destination subscribers are:
● SIMATIC S7 CPU modules
● SIMATIC PCS 7 control centers (DNP3 master stations)

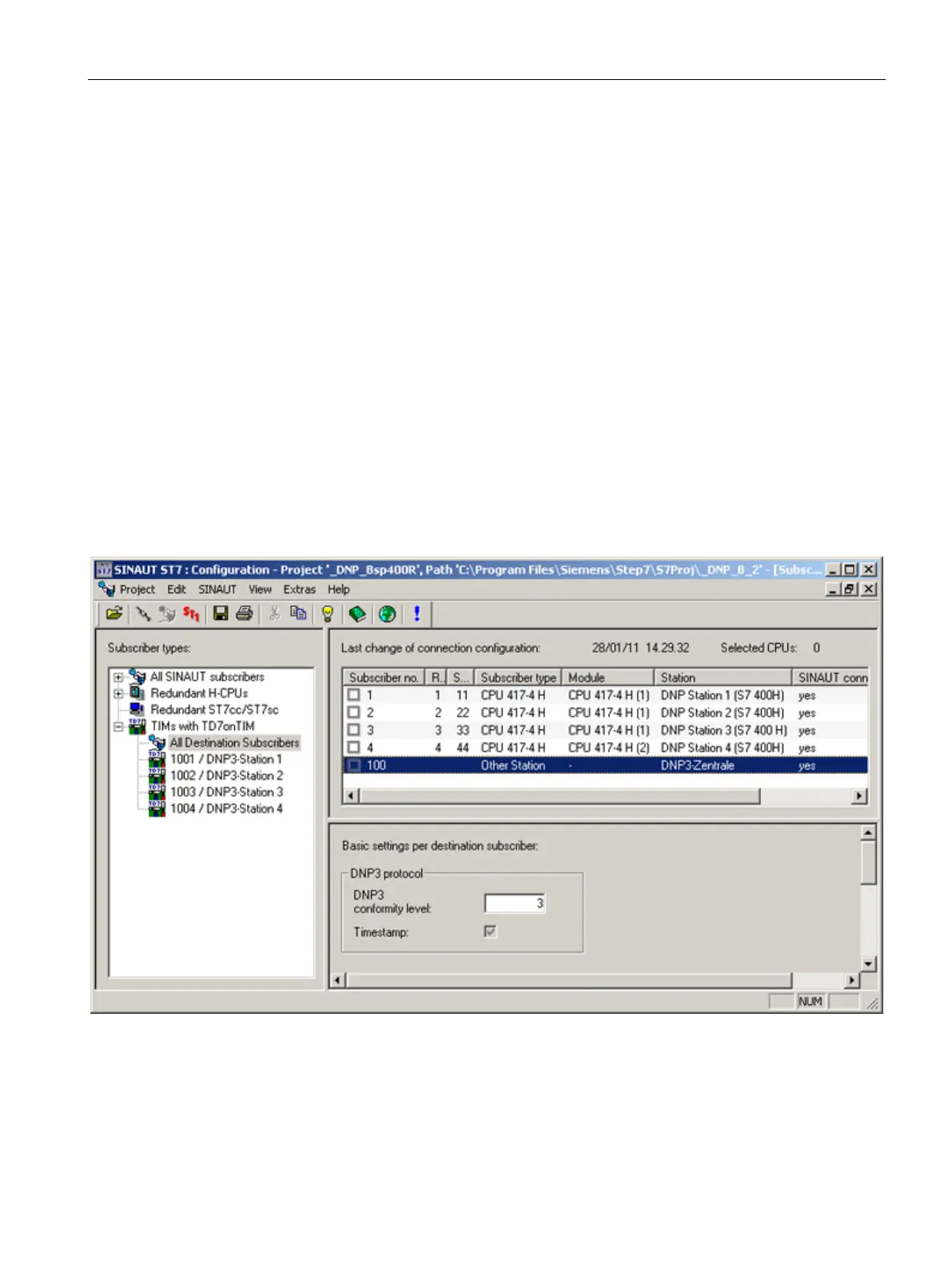

Image 6-13 Directory tree, subscriber list, and parameter area with destination subscriber-specific parameters of a DNP3
master station as destination subscriber
The parameter area of the selected destination subscriber opens below the subscriber list.
The parameters to be entered here are valid in terms of communication with the configured
communications partners (destination subscribers) for all TD7-compliant TIM modules of the
