The SINAUT Configuration Tool
6.3 Startup and operation
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
141
● SINAUT ST1 ...
This tool is not required for DNP3 systems.

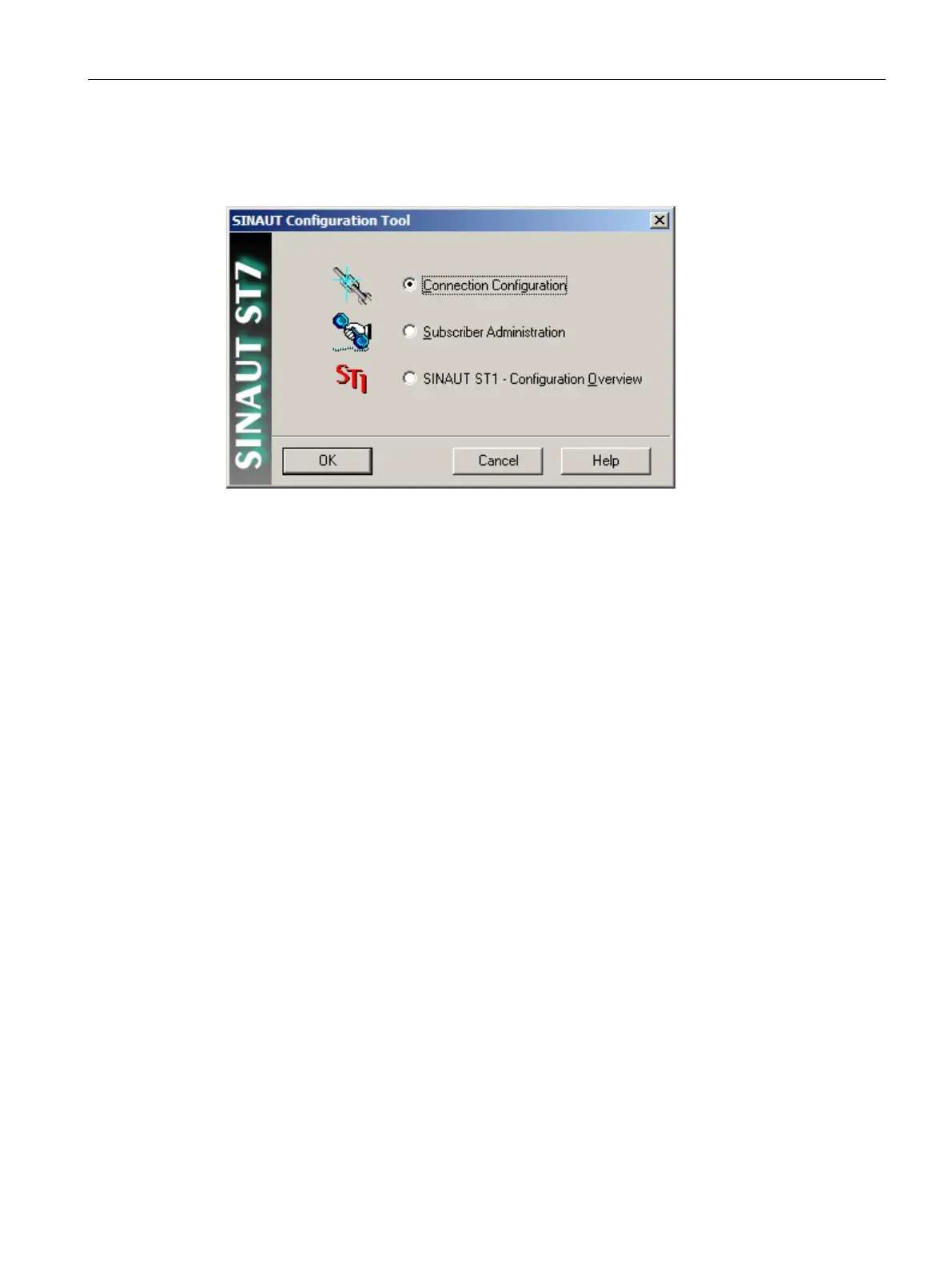

Image 6-1 Selection dialog of the SINAUT Configuration Tool
To create the configuration, first select the Connection Configuration option.
Changing between the tools
When the SINAUT Configuration Tool is open, you can change between the three functions
using:
● The "SINAUT"... menu
● The corresponding buttons in the toolbar
● The following function keys:
– F3 for Connection Configuration
– F4 for Subscriber Administration
Operator input
The SINAUT configuration software fits into the familiar Windows sequences. Functions such
as window technology, menu bar, toolbar or the online help for the dialogs correspond to the
Windows or STEP 7 standard.
Select a graphic object by clicking it once with the left mouse button.
Further functions for this object are then available over the menu bar, over the buttons of the
toolbar or often over a context menu that opens when you select an object with the right
mouse button.
Buttons in the properties dialogs have the following functions:
●
OK
Applies the entries made and closes the dialog.
