The SINAUT Configuration Tool
6.6 TD7onTIM
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
195

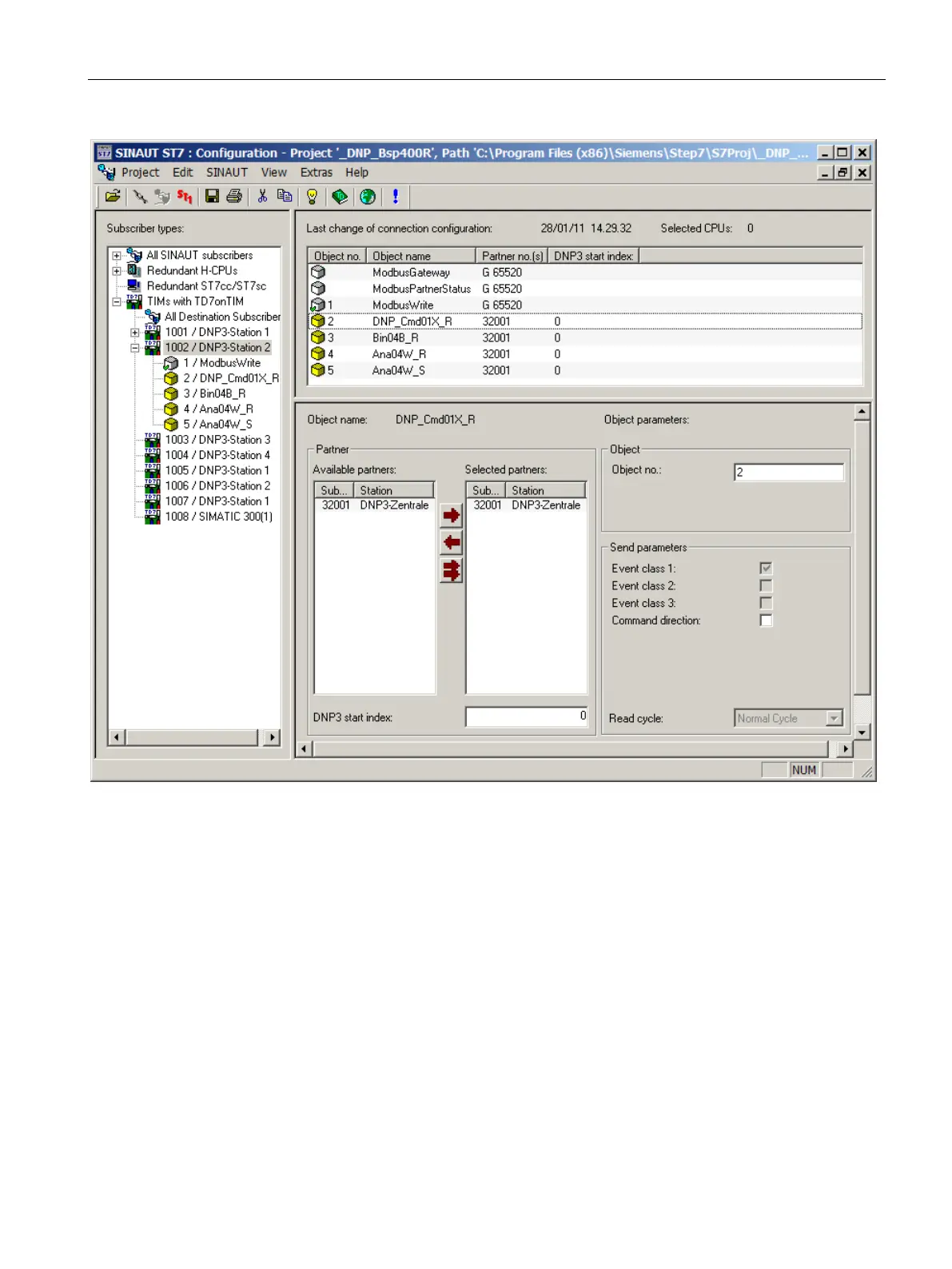

Image 6-18 Subscriber administration with the parameter assignment dialog of a data object
Note
In the subscriber management, if a TIM is selected with TD7onTIM with the system object
“ModbusGateway“, in the object list in the column “Partner no.” with the Modbus objects, the
gateway number is displayed preceded by “G”.
Parameters in the "Object" box
Name:
Object no.
Range of va
l-
ues:
1 ... 32000
Explanation:
The object number is assigned consecutively and uniquely by the configur
a-
tion tool. As long as this uniqueness is retained, you can change
the value
as necessary. This value serves only as a criterion for the internal organiz
a-
tion of the objects.
