Accessories
A.3 Connecting cables
TIM DNP3
322 System Manual, 12/2015, C79000-G8976-C253-04
Connecting cable only for the TIM 4R-IE DNP3
Table A- 1 Connecting cable for the serial interface of the TIM 4R-IE DNP3
6NH7701-4DL Cable for connecting a TIM 4R-IE DNP3 (RS-485) with
multiple SINAUT DNP3 dedicated line modems of the type
MD2 or MD3 (RS-485) connected in parallel.
Cable length 1.5 m
Structure of the connecting cables for WAN attachment
The following figures show the assembly of the connecting cables.

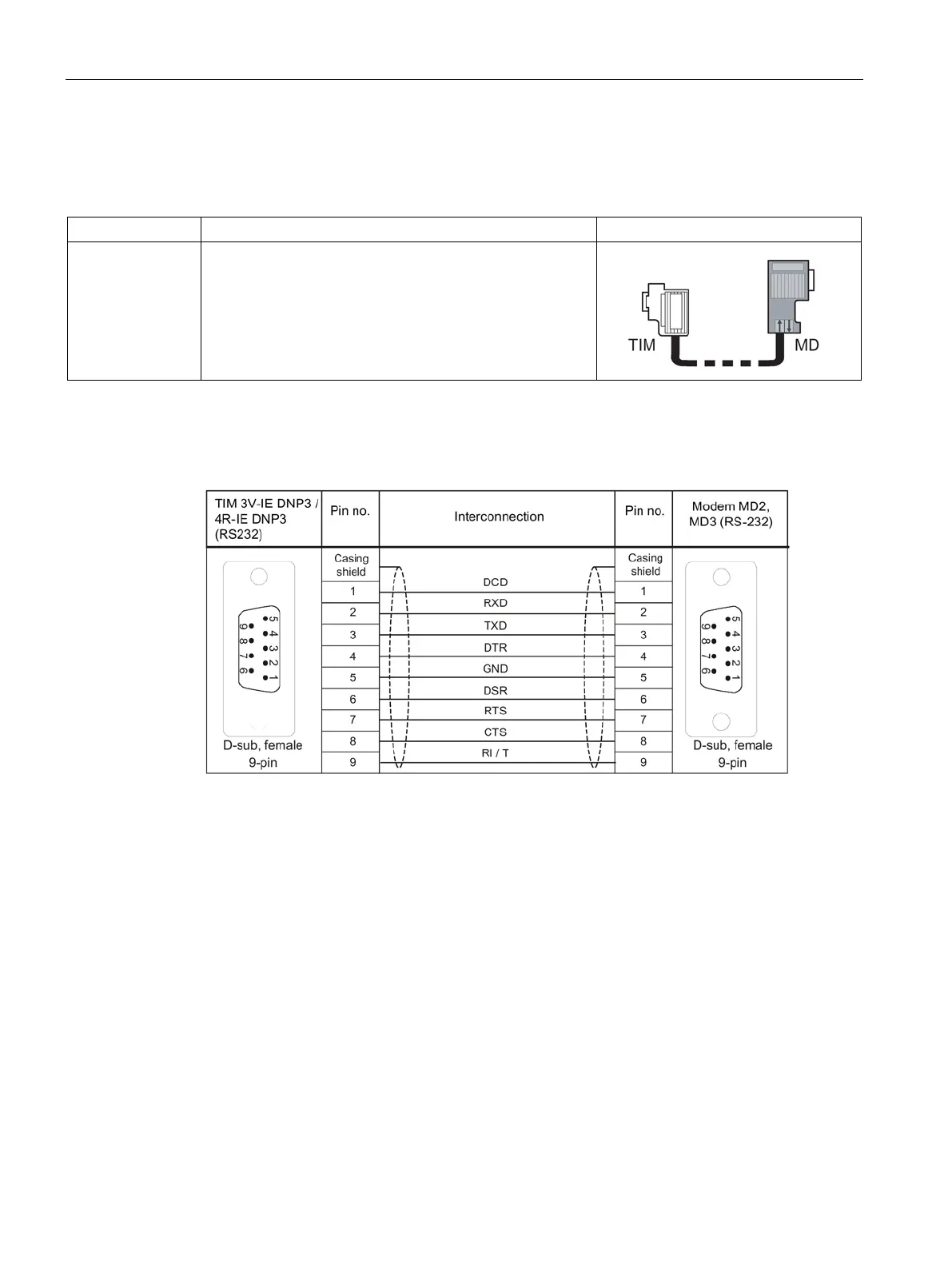

Image A-3 Assembly of the standard connecting cable 6NH7701-4AL
