10
10.2 LAN Communication
119Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012

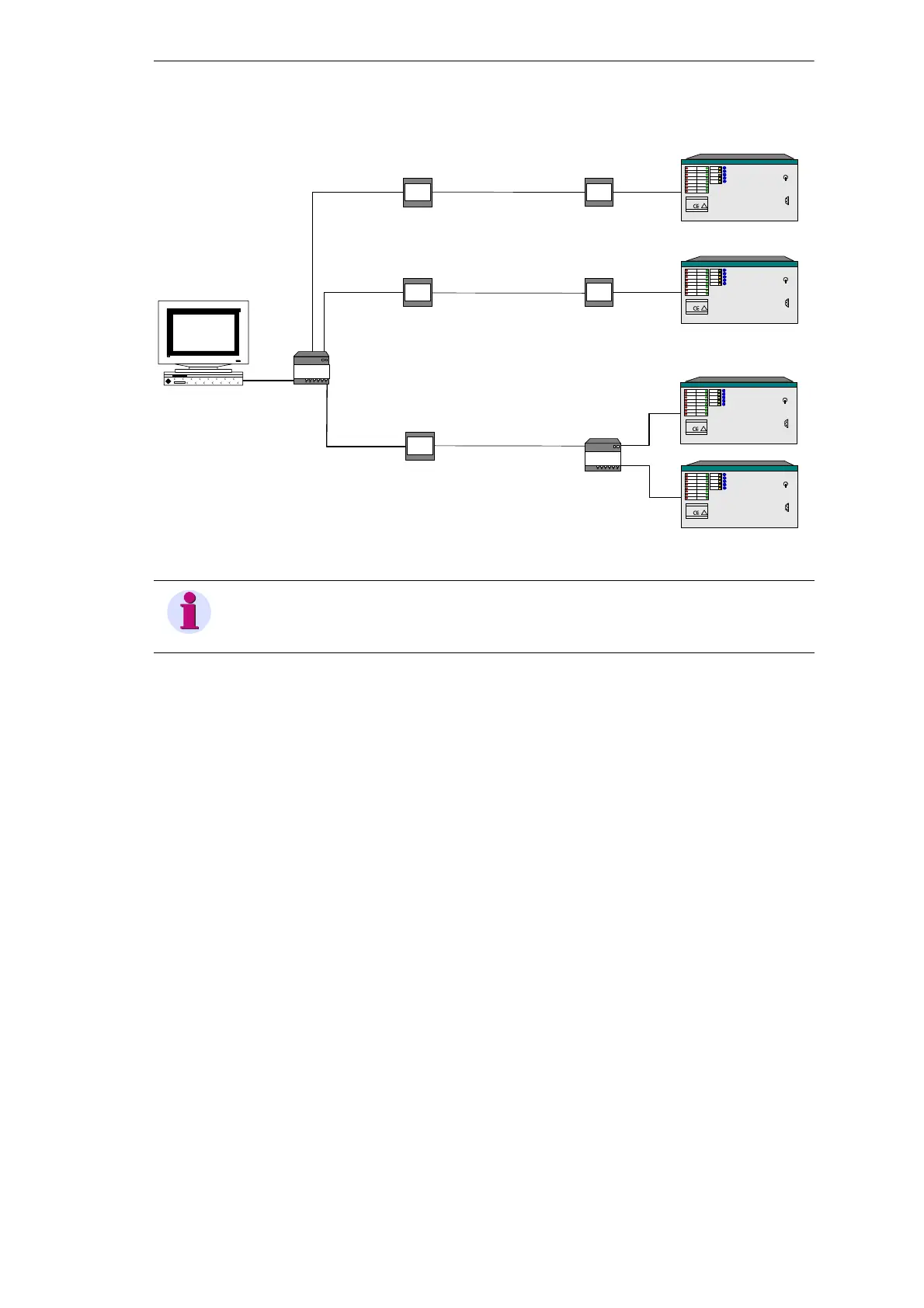

Figure 10-3 Connection example with hub and FO transceiver with evaluation PC and SIMEAS R-PMU
Cable lengths
In order to minimize signal faults the following cable lengths should not be exceeded:
 Twisted Pair between PC and Hub: 20 m
 Twisted Pair between Hub and router: 20 m
 Twisted Pair between router and SIMEAS R-PMU: 20 m
 Twisted Pair between Hub and SIMEAS R-PMU: 20 m
 FO cable (fibre 62,5 / 125 µm) between routers: 1,500 m
 FO cable (fibre 62,5 / 125 µm) between router and Hub: 1,500 m
Note
The accessories of the SIMEAS R-PMU have a baud rate of 10 Mbit/s because they are based on the
10BaseT/FL standard.
Transceiver
LW L
<-->
10 BaseT
s
SIMEAS R
ZE 8716
Made in Germany
AA -J6 50000002
24 -80V - / 30VA
!
SIEMENS
s
SIMEAS R
ZE 8716
Mad e in Germany
AA -J6 500000 02
24 -80V - / 30VA
!
SIEMENS
Transceiver
LW L
<-->
10 BaseT
FO cable
FO cable
PC
Twisted
Pair
Twisted
Pair
Twisted
Pair
Simeas
HUB
SIEMENS
HUB 6x
Twisted
Pair
FO cable
Umsetzer
LW L
<-->
10 BaseT
Twisted
Pair
Transceiver
LW L
<-->
10 BaseT
s
SIMEAS R
ZE 8716
Mad e in Germany
AA -J6 500000 02
24 -80V - / 30VA
!
SIEMENS
Twisted
Pair
s
SIMEAS R
ZE 8716
Mad e in Germany
AA -J6 500000 02
24 -80V - / 30VA
!
SIEMENS
Transceiver
LW L
<-->
10 BaseT
Simeas
HUB
SIEMENS
HUB 6x
Twisted
Pair
