12.12 Transient Analog Recorder (TAR)
162 Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
12.12 Transient Analog Recorder (TAR)
12.12.1 Time settings
First of all, select the dialog Transient Analog Recorder to set the time parameters for the
device.

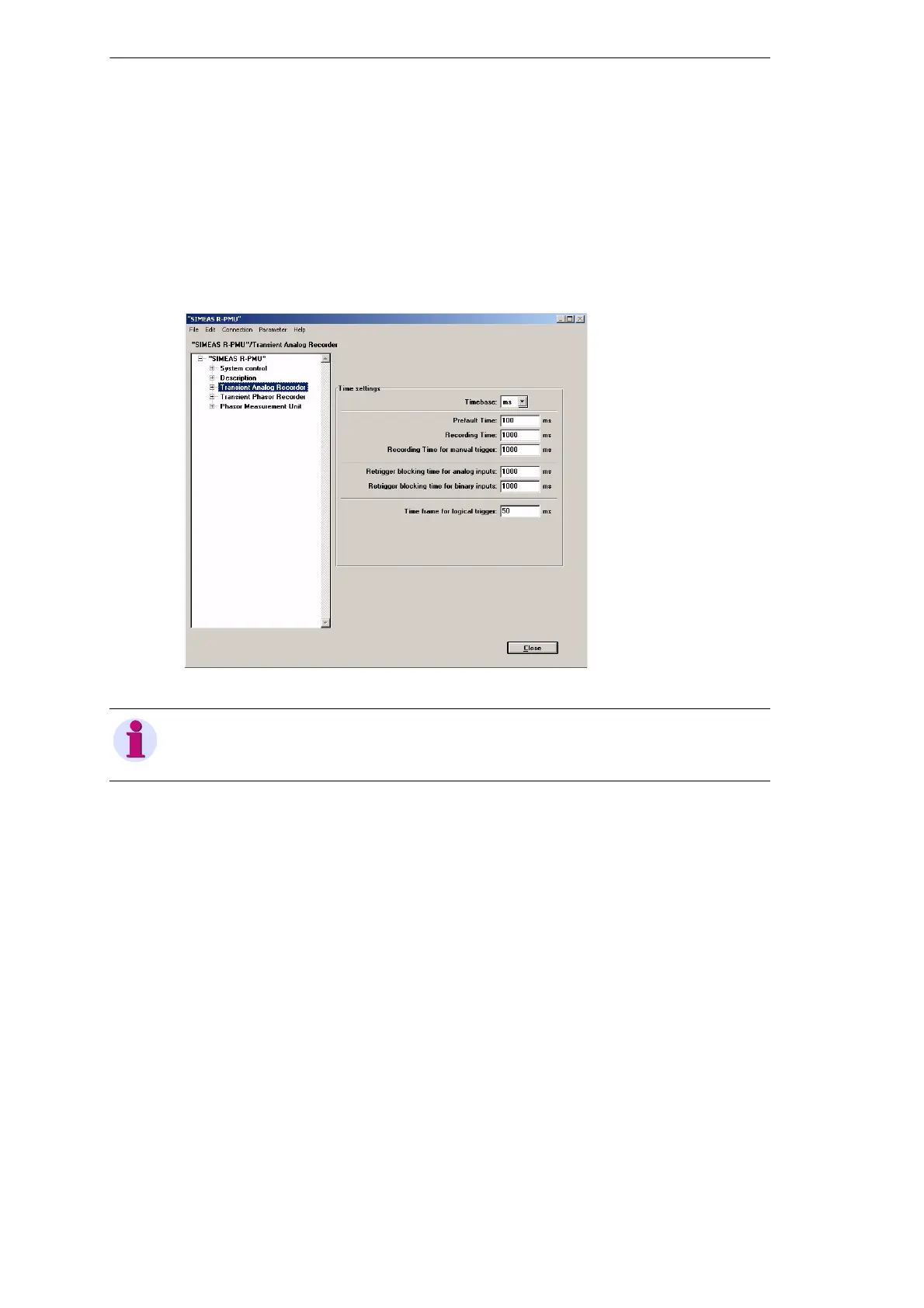

Figure 12-26 Transient Analog Recorder, time settings
Select the dimension of the run times to be set from the drop-down menu of the Timebase
box.
For reasons of clarity, all times are displayed in the same unit of time. When the unit of time
is changed, all times will be readjusted.
Enter the recording time of the events preceding the fault in the Prefault Time box.
Define the length of a record starting from a specific trigger time in the Recording Time box.
Enter the recording time for a manual trigger in the Recording Time for manual trigger box.
In the Retrigger blocking time for analog inputs you can enter the blocking time for analog
channels. During this period, no other trigger condition is recognized for this channel.
In the Retrigger blocking time for binary inputs you can enter the blocking time for binary
channels. During this period, no other trigger condition is recognized for this channel.
In the Time frame for logical trigger box, you can enter the interval during which the
conditions for logical operations must be met.
Note
A time must be entered in every input field.
