15.2 Housing Versions

218 Digital Fault Recorder, SIMEAS R-PMU, Manual

E50417-H1076-C360-A5, Release 10.2012

15.2.5 Surface Mounting; ZE 8/16

7KE6000-0_0.emf

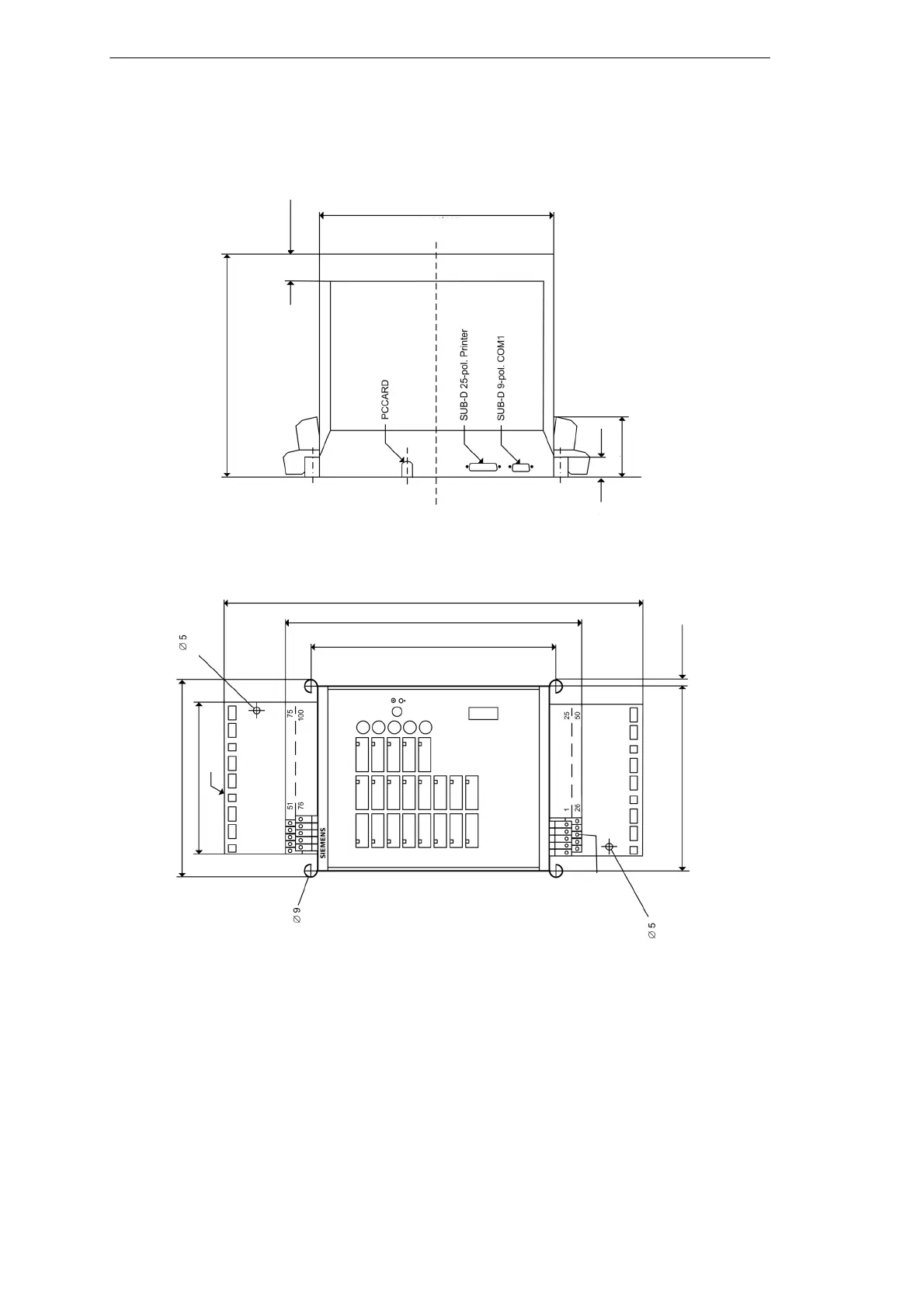

Figure 15-6 Dimensional drawing, surface mounting; ZE 8/16

For earthing

Terminal 28

Earthing terminal

Metal shield

Use stud bolts or M6 screws for mounting the device to the

panel.

If M8 stud bolts are already provided (e.g., when replacing

devices), use slotted round nuts according to DIN 546).

235.00 mm

185.00 mm

220.00 mm 7.50 mm

71.00 mm

27.00 mm

266.00 mm

29.50 mm

260.00 mm

280.00 mm

344.00 mm

485.00 mm
