12.1 General
132 Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
12.1 General
The evaluation and parameterization program OSCOP P is a program package for the
transmission, archiving and output of measured value files that have been recorded using
different SIEMENS quality recorders or digital protection devices. It features extensive functions
and calculation algorithms for the analysis and evaluation of processes in the system.
The parameters for the digital fault recorder SIMEAS R-PMU are set in the OSCOP P module
Parameterize device. You define the device functions, configuration, channel assignment,
signal outputs, calculation parameters, interfaces, fault recording functions, print functions etc.
Before you can do this, you must have created the SIMEAS R-PMU device in the
Parameterize PC module.
For further information regarding this topic and the other OSCOP P modules, please refer to the
OSCOP P manual.
Parameterization
Proceed as follows to parameterize your SIMEAS R-PMU:
Click Siemens Energy → OSCOP P → Parameterize Devices in the Windows Start menu
to start the Parameterize device module.
Password query
Enter your password in the Access authority request dialog box.

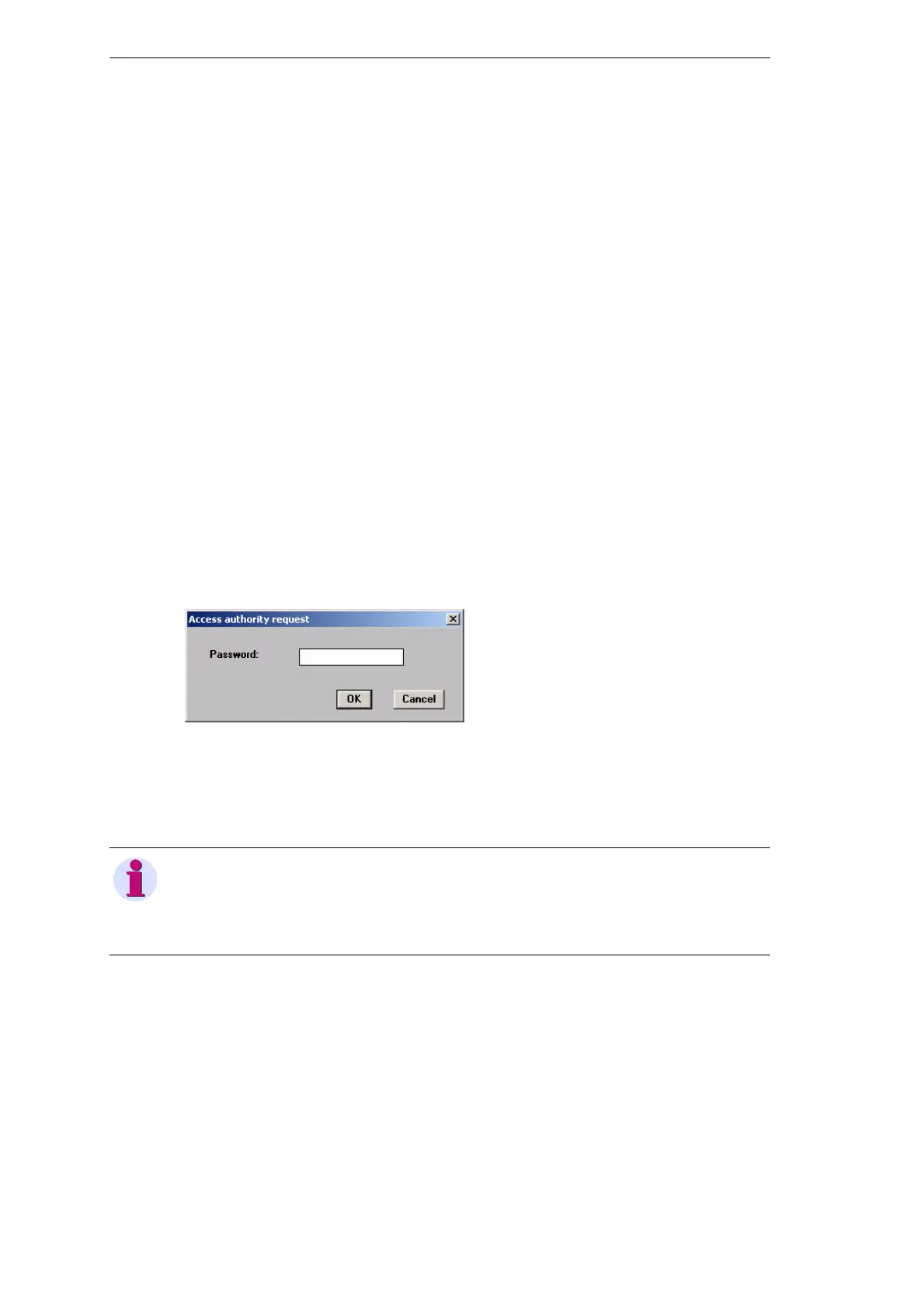

Figure 12-1 Authorization request
Confirm the entered password with OK.
If your password is not authorized, the message Wrong password appears.
Correct your entry and confirm again.
Selecting Device
In the basic dialog box, select the SIMEAS R-PMU that you have created before in the
Parameterize PC module.
Click OK. The dialog for setting the SIMEAS R-PMU parameters opens. The status boxes on
the right side of the dialog box describe the device design and contain information on the
firmware version.
Note
• The number of retries is not limited.
• When calling up the module for the first time, enter the standard password OSCOP.
• Please make sure you enter the character sequence in capitals.
