12.6 Device Function
The Device Function menu item contains the Continuous Recorder and Fault Recorder tabs.
Here you can define the device functions to be used or the measured values to be recorded with
the device. Furthermore, you can allocate storage space to each function.
Continuous recorder
Select the Continuous Recorder tab.

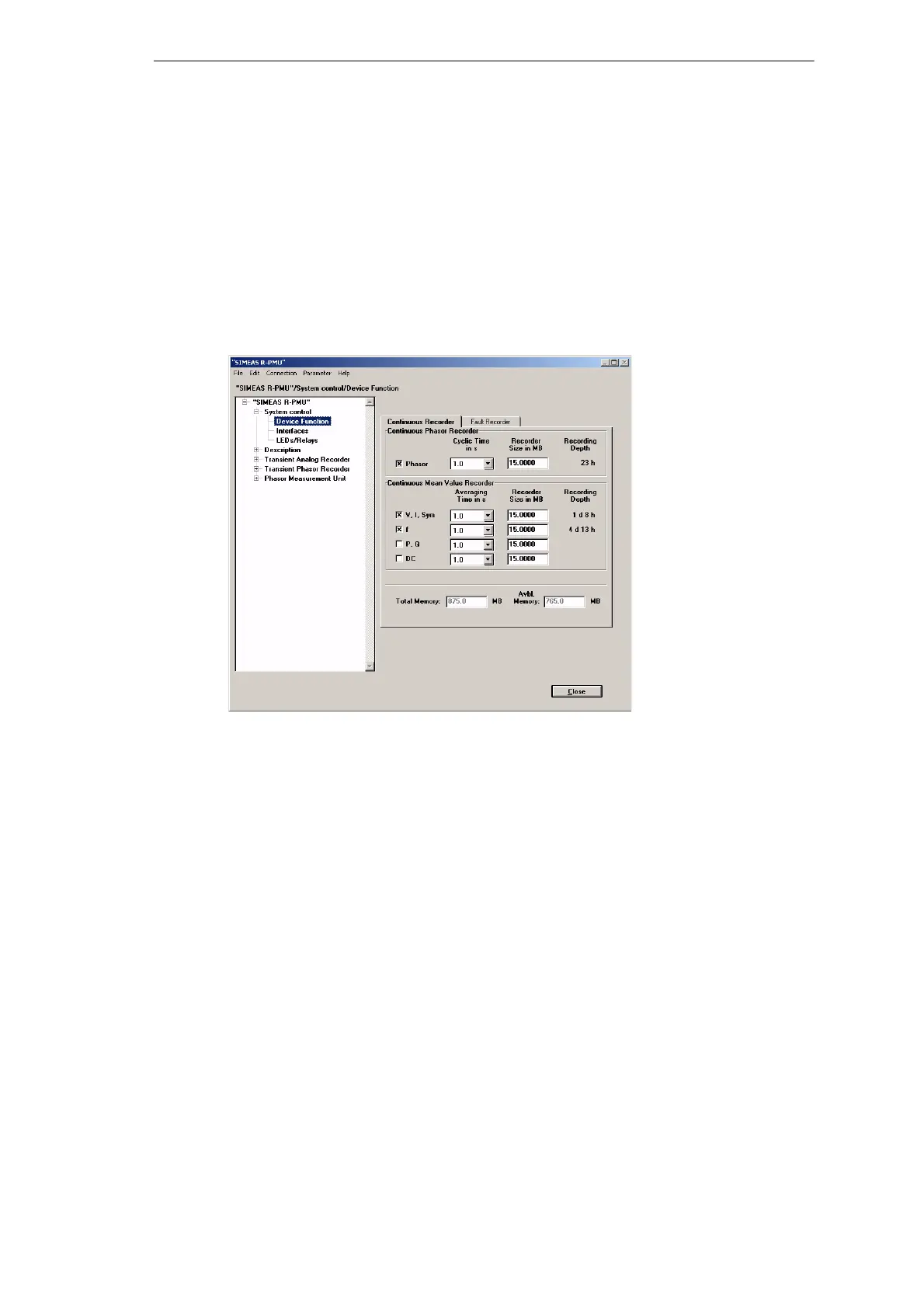

Figure 12-12 Device Function, Continuous Recorder tab
Activate the Phasor checkbox in the Continuous Recorder menu item to switch on the
continuous recorder for complex phasors and frequencies.
The Cycle Time in s defines the frequency of data recording.
The Recorder Size in MB defines the size of the physical memory area for the
Continuous Phasor Recorder (CPR).
Furthermore, you can parameterize the following long-term recorders under Continuous
Mean Value Recorder:
V, I, Sym
Continuous mean value recorder (CRR) and symmetrical components
f
Continuous mean value recorder for frequencies (CFR)
P, Q
Continuous mean value recorder for active and reactive power (CQR)
DC
Continuous mean value recorder for process variables (CDR)
Check the appropriate checkbox to select the function and enter the averaging times (in s)
and the allocated memory space in the corresponding boxes.
Averaging Time in s
Period of time (in seconds) during which a mean value is calculated and stored in the
memory.
