12.12 Transient Analog Recorder (TAR)
165Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
12.12.4 Network and Cross Triggers
You can use the External/Network tab to set the behavior of the Transient Analog Recorder
(TAR) with regard to the network and cross trigger function.
The network trigger checkboxes are only selectable if you have enabled the LAN interface under
Interfaces
→ LAN Interface previously.

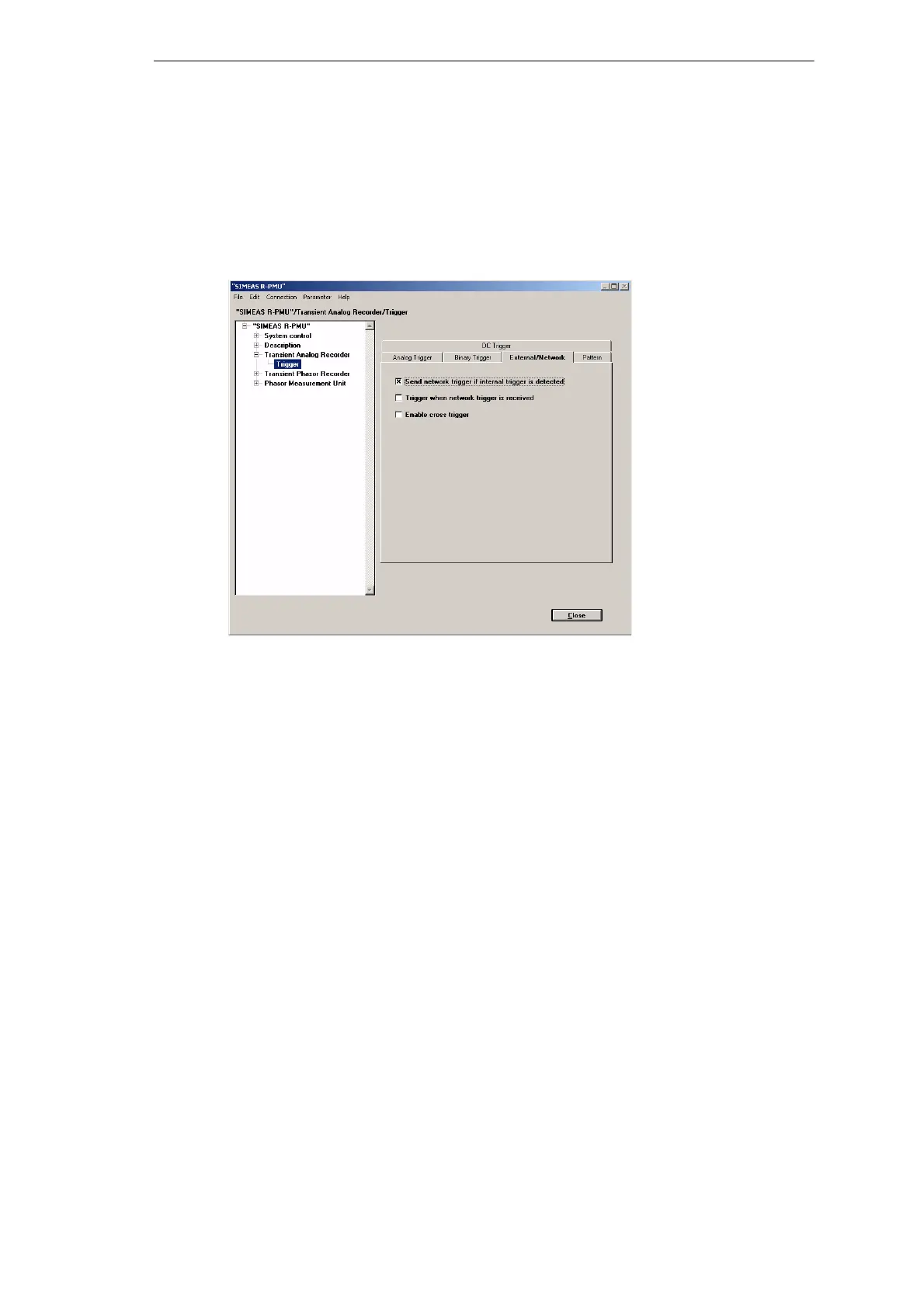

Figure 12-29 TAR, External/Network tab

Select by checking the appropriate checkbox(es) whether the Transient Analog Recorder
(TAR) is to trigger a network trigger via the LAN, or whether the recorder itself is to trigger
when a network trigger is received via the LAN.
 Select by checking the Enable cross trigger checkbox whether the Transient Analog
Recorder (TAR) is to also trigger when the Transient Phasor Recorder has been triggered.
