12.12.2 Analog Triggers
All measurement inputs of VCDAUs, VDAUs and CDAUs can be used as analog trigger values.

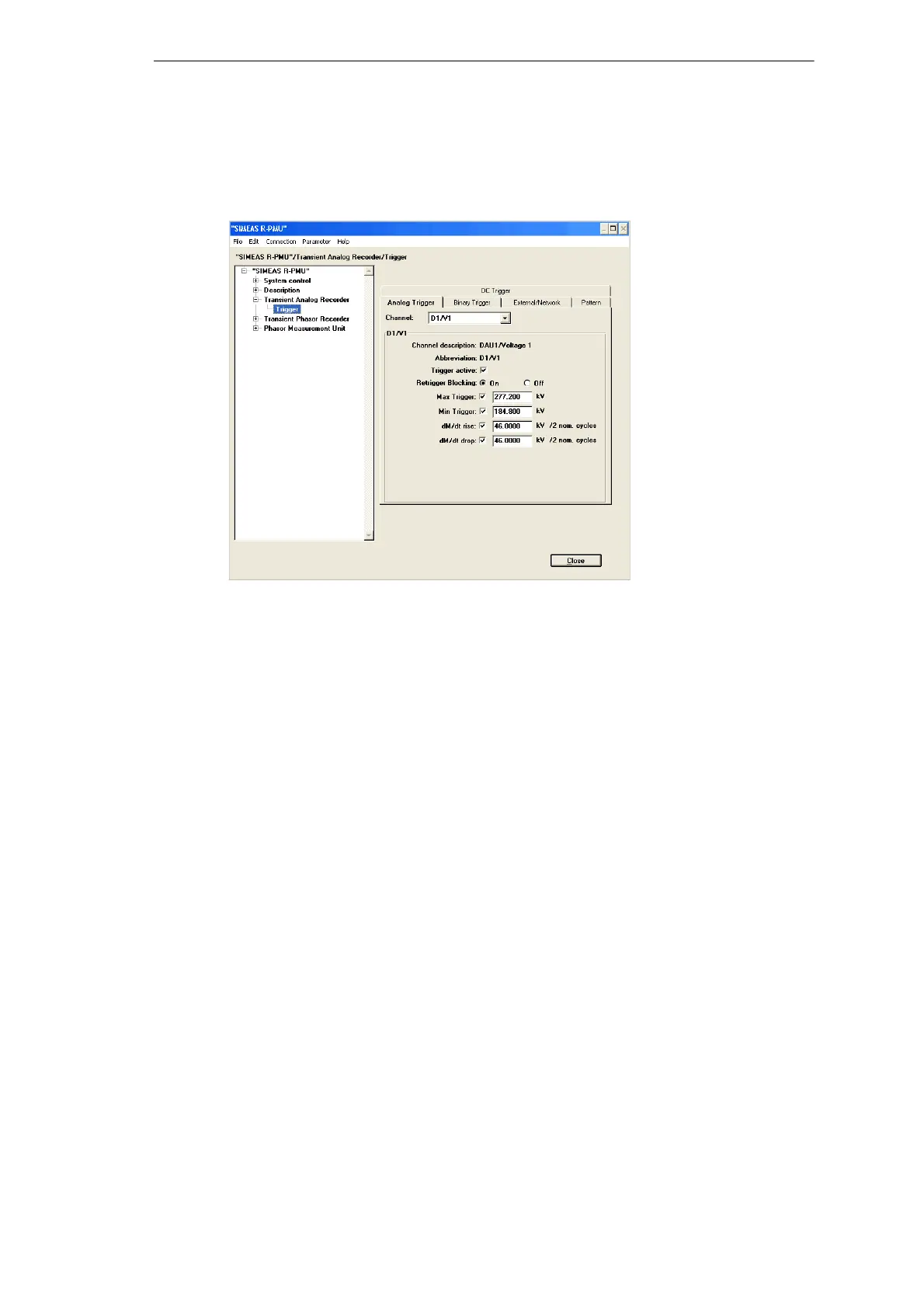

Figure 12-27 TAR, Analog Trigger tab
Select the channel from the drop-down menu of the Channel box.
The Channel description and the Abbreviation that you have parameterized before are
displayed in the parameter box of the channel.
Activate the trigger function of the channel by checking the Trigger active checkbox.
Activate or deactivate the Retrigger Blocking by clicking the appropriate radio button.
Activate the required trigger functions of the channel by checking the appropriate checkbox
Max Trigger, Min Trigger, etc.
In the fields Max Trigger or Min Trigger enter the primary values, for which a recording is to
be generated.
Set the value dM (delta of nominal value) for the Gradient trigger in the dM/dt rise or dM/dt
drop boxes. The timebase dt is permanently set to the double of the cycle. If the current rms
value exceeds the maximum or minimum limit value, there will be the corresponding gradient
triggering. A Gradient trigger cannot be set for positive, negative and zero-sequence
channels.
