12.13 Transient Phasor Recorder (TPR)
170 Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
12.13.3 Binary Triggers
All binary inputs of VCDAUs, VDAUs, CDAUs, DDAUs and BDAUs modules can be used as
binary trigger values.

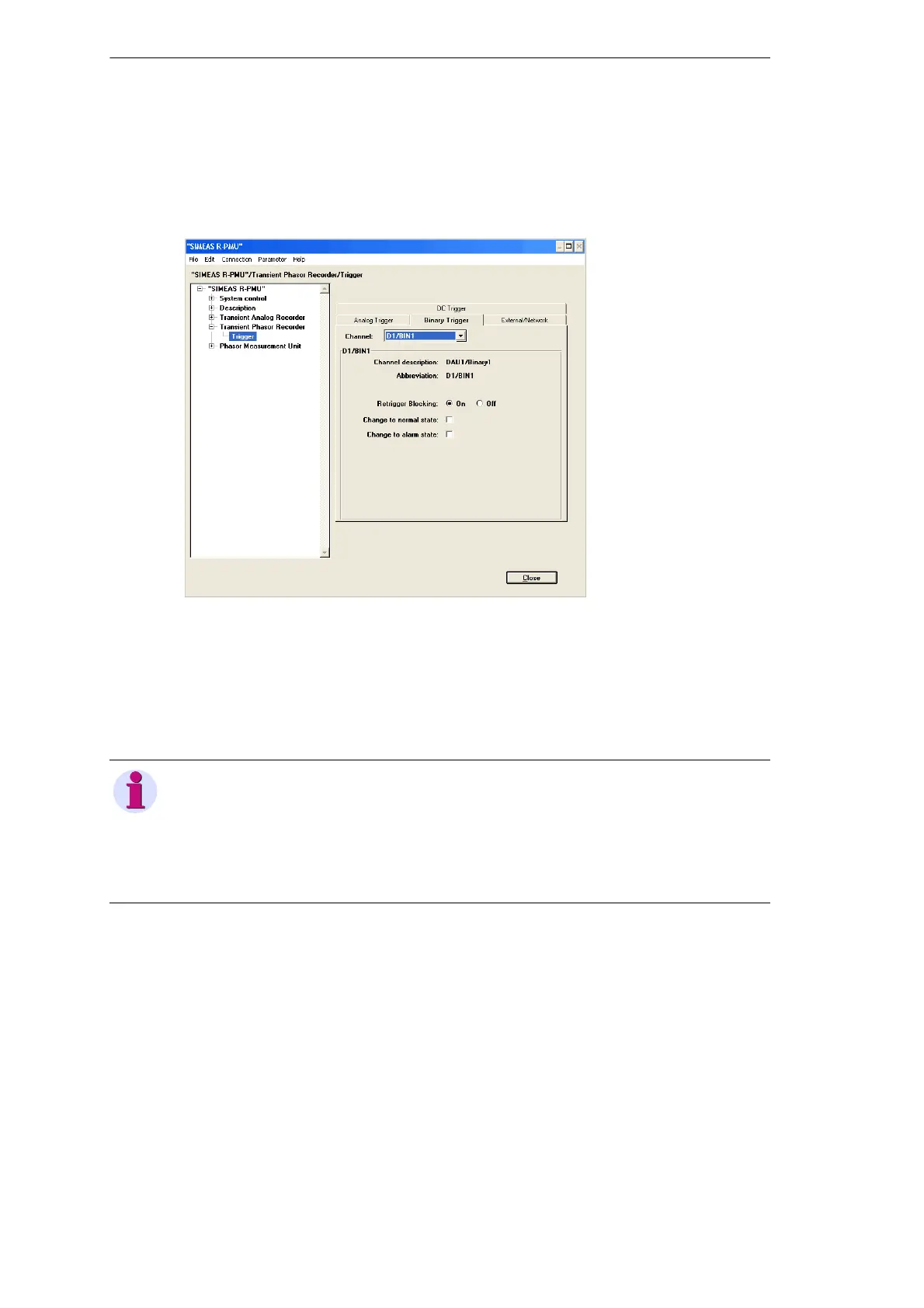

Figure 12-34 TPR, Binary Trigger tab

Select the channel from the drop-down menu of the Channel box.
The Channel description and the Abbreviation that you have parameterized before are
displayed in the parameter box of the channel.
 Activate or deactivate the Retrigger Blocking by clicking the appropriate radio button.
 Activate the checkboxes Change to normal state and/or Change to alarm state.
Note
Change to alarm state means: A normally open contact (connected to an input parameterized
as normally open contact) is closed or a normally closed contact (connected to an input param-
eterized as normally closed contact) is opened.
Change to normal state means: A normally open contact (connected to an input parameterized
as normally open contact) returns to open or a normally closed contact (connected to an input
parameterized as normally closed contact) returns to closed.
