12.11.2 Analog Channels
The Analog Channels tab is provided for VCDAU, VDAU and CDAU modules.

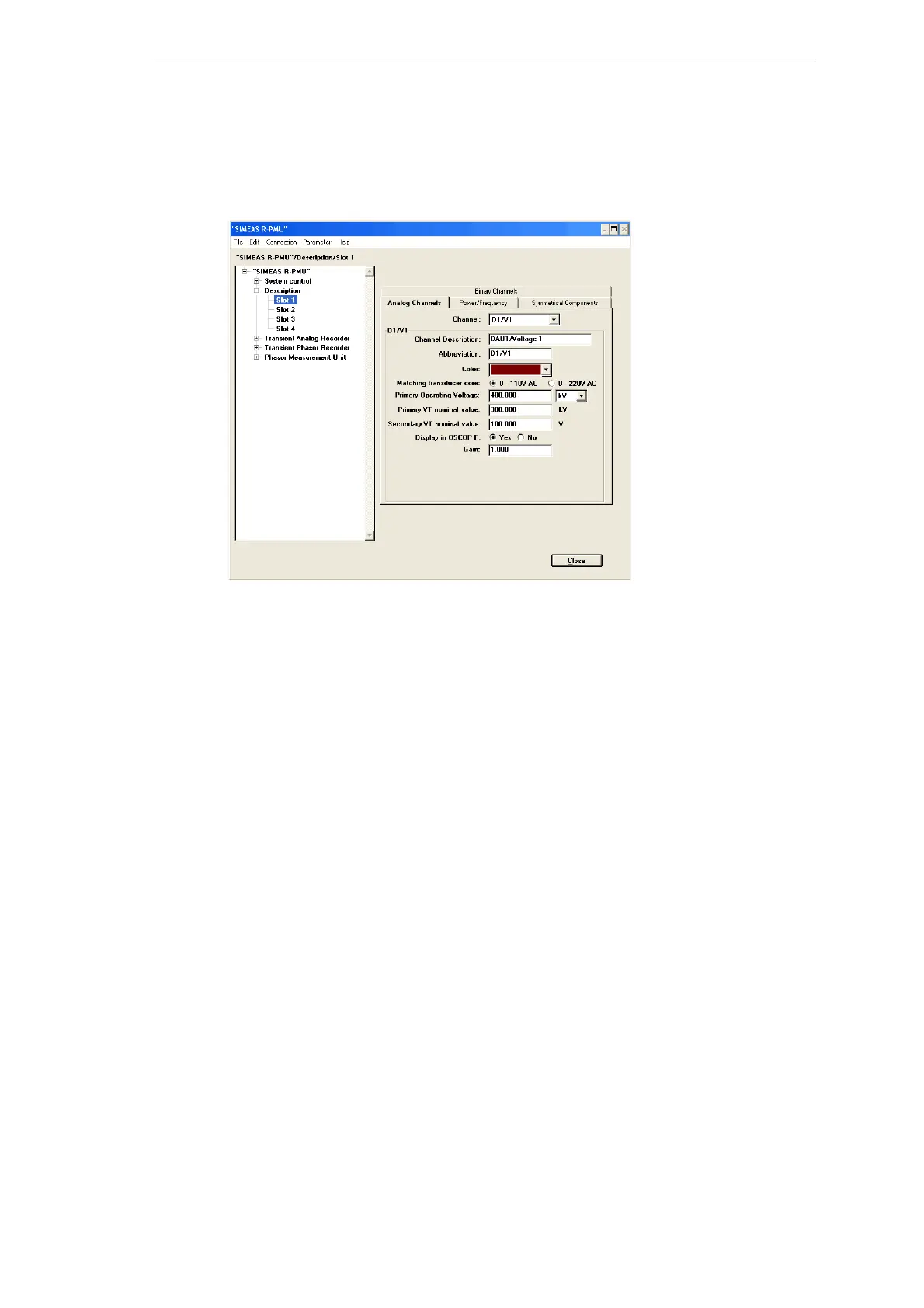

Figure 12-22 Analog Channels tab
You can parameterize the following channels depending on the DAU type:
Select one of the 8 channels from the drop-down menu of the Channel box.
Change the Channel Description and Abbreviation and select a Color (if necessary).
Select with Matching Transducer Core the input voltage range for the VCDAU or VDAU.
Select the input voltage range for the VDAU or VCDAU under Primary Operating Voltage.
Enter the nominal voltage as phase-to-phase voltage and select the primary dimension of the
measured values (e. g. kV).
Enter the transformation ratio of the transducer in the Primary VT nominal value and
Secondary VT nominal value and select the appropriate primary-side dimension of the
measured value unit from the drop-down menu.
The following reference values are valid for the connection of the measuring signals:
Star Phase-to-ground values
Delta Phase-to-phase values
Monophase/1-phase Phase values
3-phase Phase currents
VCDAU
Voltages V1 to V4 and currents I1 to I4
VDAU
Voltages V1 to V8
CDAU
Currents I1 to I8
