14.3 Extending the Existing Hardware

206 Digital Fault Recorder, SIMEAS R-PMU, Manual

E50417-H1076-C360-A5, Release 10.2012

14.3.4.2 Printer

To connect the printer, proceed as follows:

1. Switch the SIMEAS R-PMU off using switch S1.

2. Connect the printer connecting cable to the parallel interface PRINTER (LPT 1) at the rear

panel of the SIMEAS R-PMU (25-pin socket).

3. Connect the cable to the printer.

4. Connect the supply voltage to the printer.

5. Switch the printer on.

6. Switch the SIMEAS R-PMU on using switch S1.

7. Connect the notebook to the service interface COM S at the front side of the SIMEAS R-

PMU.

8. Enable the local print output using the OSCOP P system program. For detailed information

regarding the parameterization, please refer to Chapter 12.

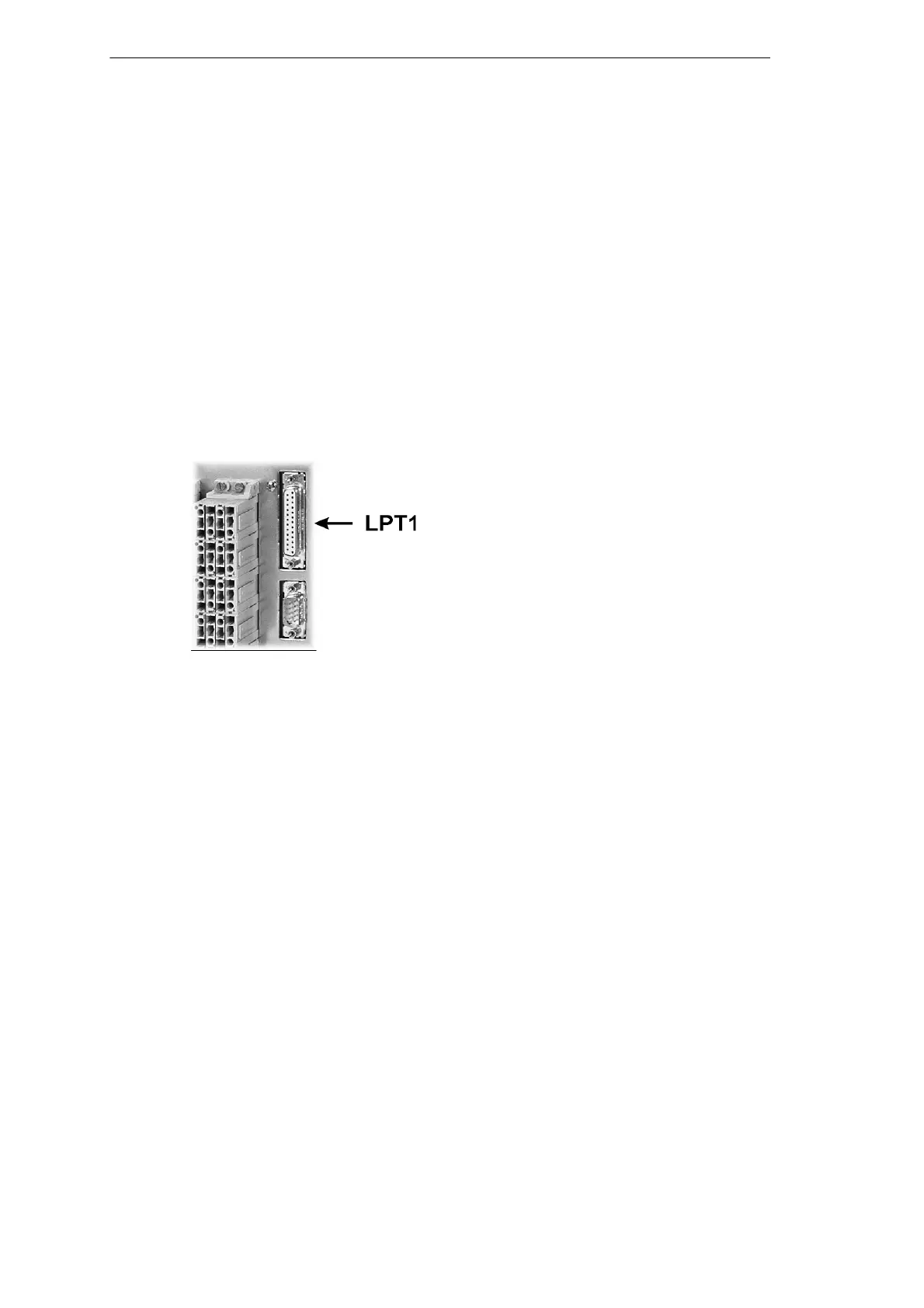

Figure 14-7 LPT 1 interface
