15.2 Housing Versions

219Digital Fault Recorder, SIMEAS R-PMU, Manual

E50417-H1076-C360-A5, Release 10.2012

15.2.6 Surface Mounting; ZE 32/64

7KE6000-1_0.emf

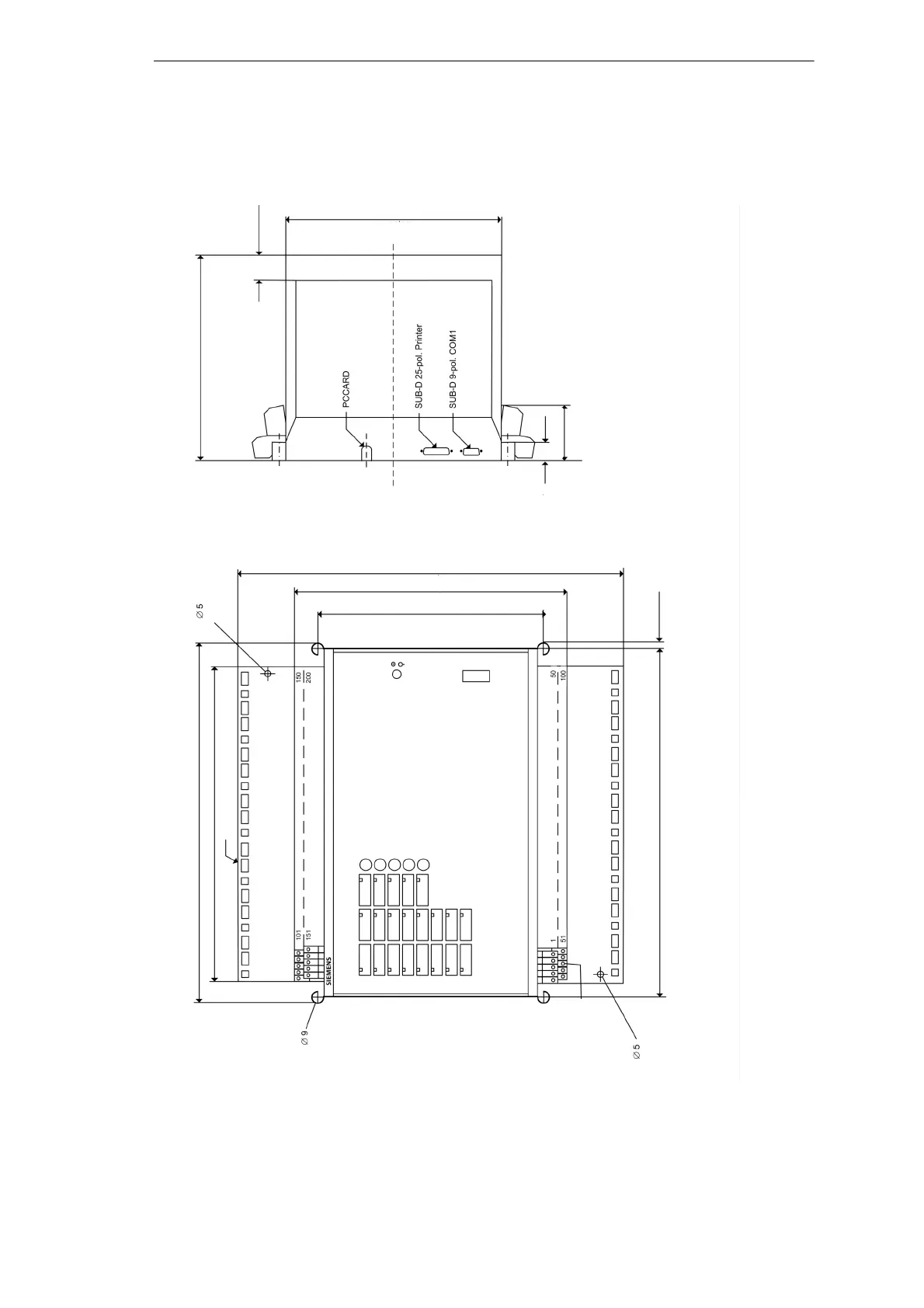

Figure 15-7 Dimensional drawing, surface mounting; ZE 32/64

280.00 mm

344.00 mm

485.00 mm

For earthing

Metal shield

For earthing

Terminal 53

Earthing terminal

459.00 mm

410.00 mm

444.00 mm

Use stud bolts or M6 screws for mounting the device to

the panel.

If M8 stud bolts are already provided (e.g., when

replacing devices), use slotted round nuts according to

DIN 546)

7.50 mm

71.00 mm

27.00 mm

266.00 mm

29.50 mm

260.00 mm
