4.6 Control Panel
30 Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
4.6 Control Panel
21 LEDs are located at the front side of the SIMEAS R-PMU. These are used for the display of
operating conditions and faults.
Five keys in the control panel (right side) can be used to execute simple commands such as
resetting group alarms, setting operating modes and starting the manual recording of fault
records.
Fault messages are indicated by red LEDs (boxes 1 to 8) and operational conditions by green
LEDs (boxes 9 to 16).
With the OSCOP P, the default settings for indicating the messages can be adjusted depending
on the user requirements.

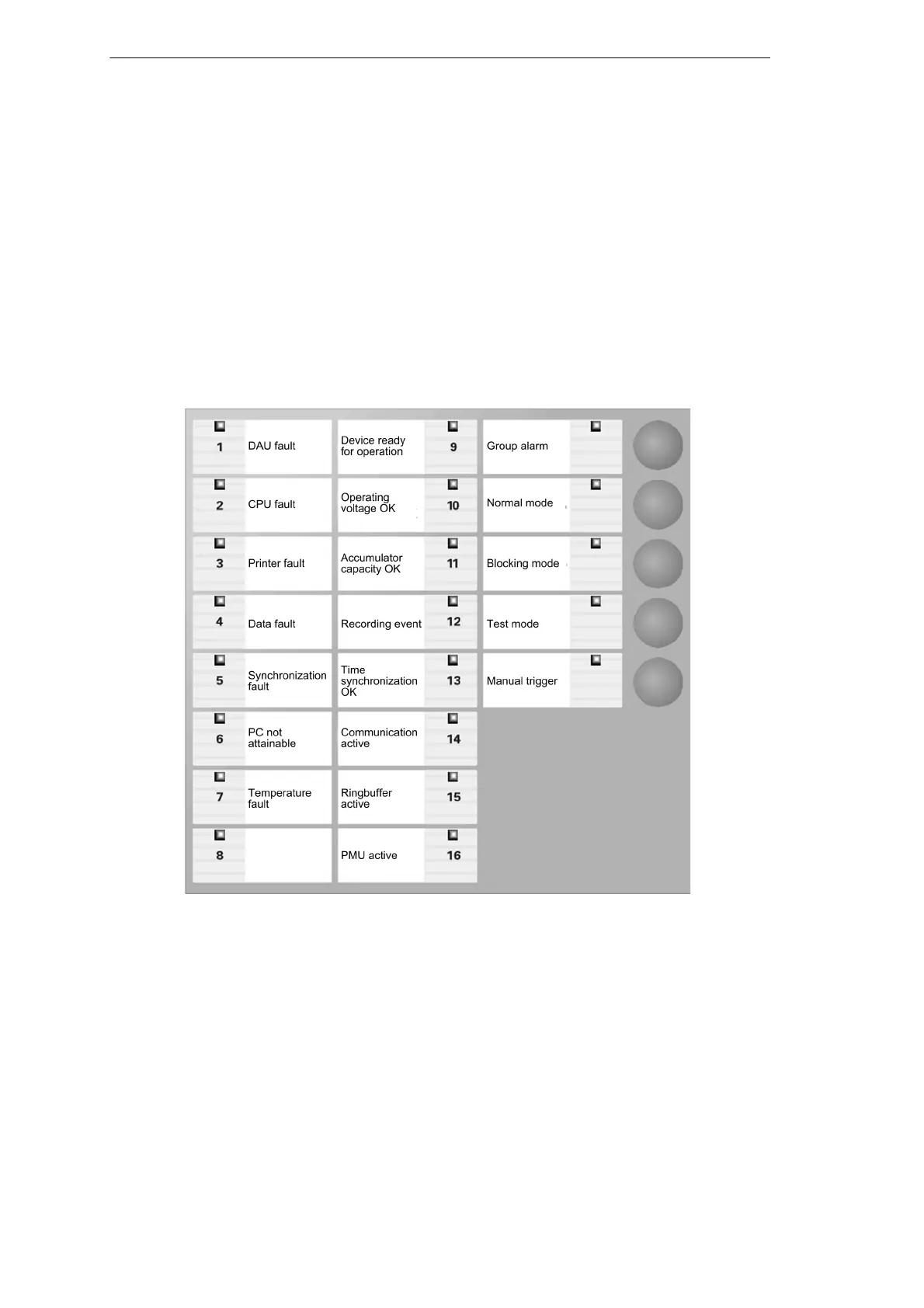

Figure 4-4 Control panel
