12.13 Transient Phasor Recorder (TPR)
171Digital Fault Recorder, SIMEAS R-PMU, Manual
E50417-H1076-C360-A5, Release 10.2012
12.13.4 Network and Cross Triggers
You can use the External/Network tab to set the behavior of the Transient Phasor Recorder with
regard to the network and cross trigger function.
The External/Network tab is only shown if you have previously selected Network as interface
type under Interfaces
→ LAN interface.

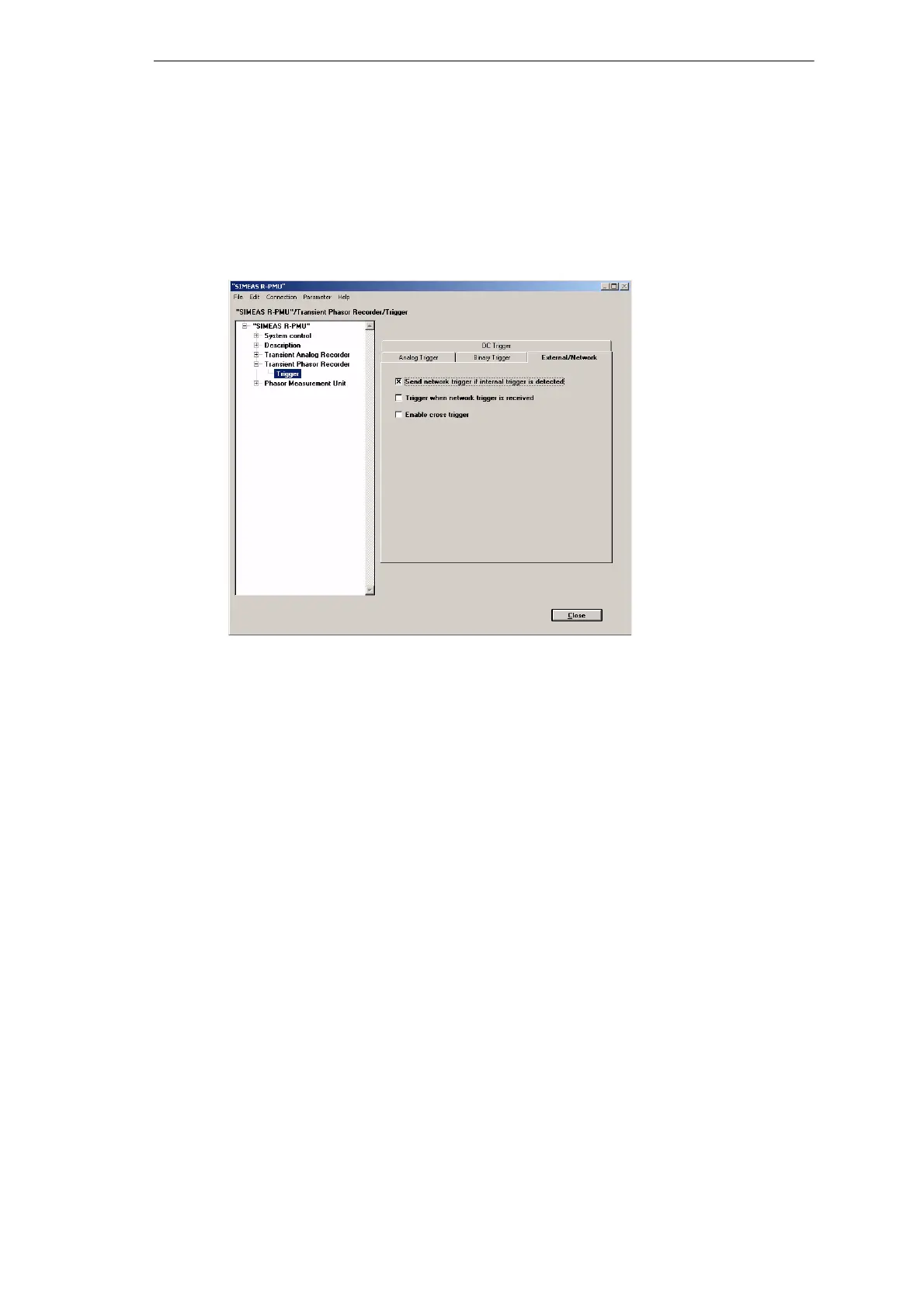

Figure 12-35 TPR, External/Network tab

Select by checking the appropriate checkbox(es) whether the TPR is to trigger a network
trigger via the LAN, or whether the Transient Phasor Recorder (TPR) itself is to trigger when
a network trigger is received via the LAN.
 Select by checking the Enable cross trigger checkbox whether the Transient Phasor
Recorder (TPR) is also to trigger when the Transient Analog Recorder (TAR) has been
triggered.
