5.2 Star Connection

36 Digital Fault Recorder, SIMEAS R-PMU, Manual

E50417-H1076-C360-A5, Release 10.2012

5.2 Star Connection

The figures below show examples of star connection.

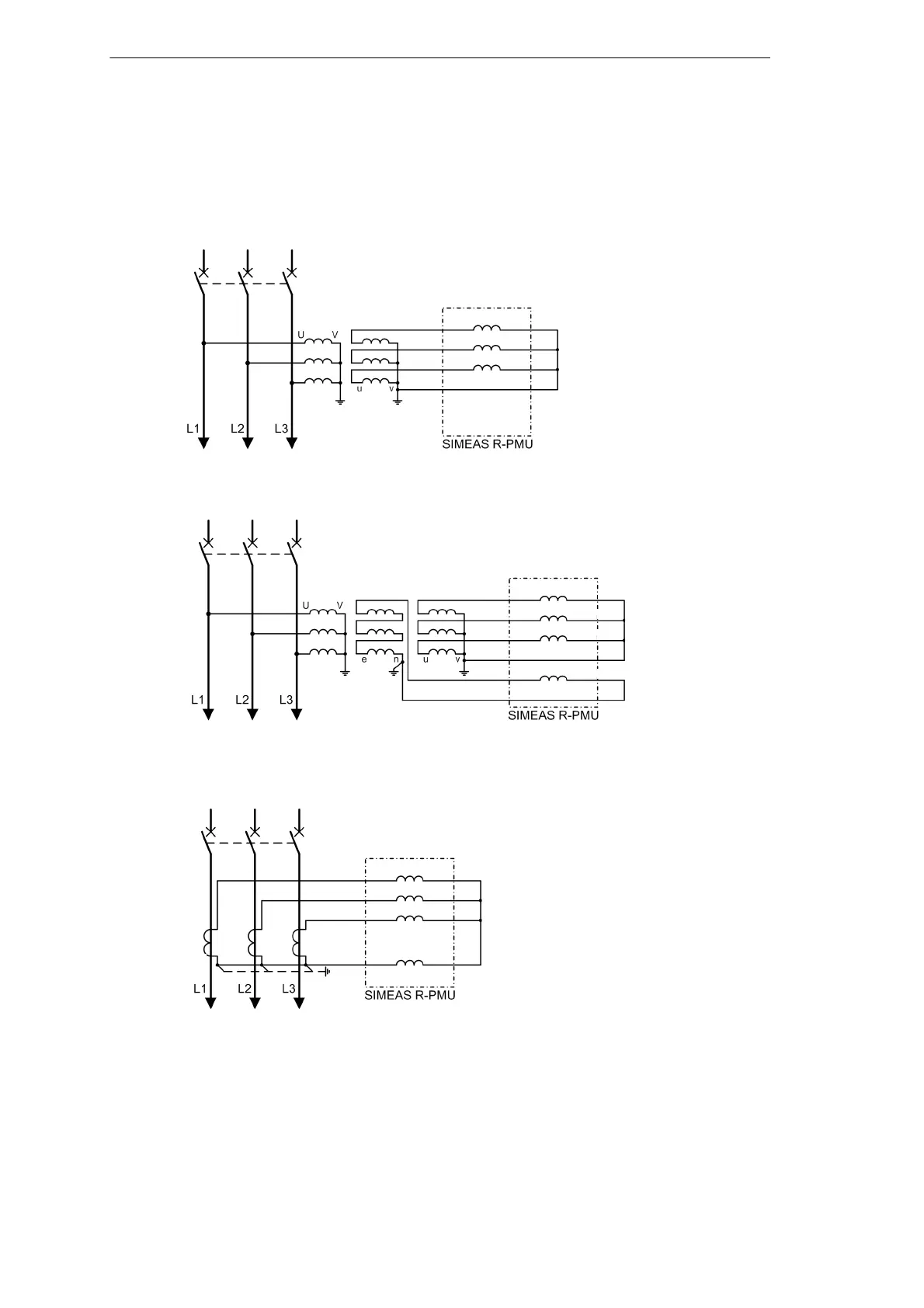

Figure 5-1 Connecting the voltage transformers for measuring the phase voltages

Figure 5-2 Connecting the voltage transformers for measuring the phase voltages with additional

summation transformer

Figure 5-3 Connecting the current transformers with star point, measuring 3

1D3

2D3

3D3

1D1

2D1

3D1

1D3

2D3

3D3

1D1

2D1

3D1

4D3

4D1

1D1

2D1

3D1

4D2

1D2

2D2

3D2

4D1
