14.3 Extending the Existing Hardware

200 Digital Fault Recorder, SIMEAS R-PMU, Manual

E50417-H1076-C360-A5, Release 10.2012

16. Connect the measuring signals to the new adapters.

17. Apply the supply voltage to the device.

18. Switch the device on using switch S1.

19. Connect a notebook to the service interface COM S at the front of the device for

parameterization.

20. Enable the new module using the OSCOP P system program and set the parameters for the

individual channels. For detailed information regarding the parameterization, please refer to

Chapter 12.

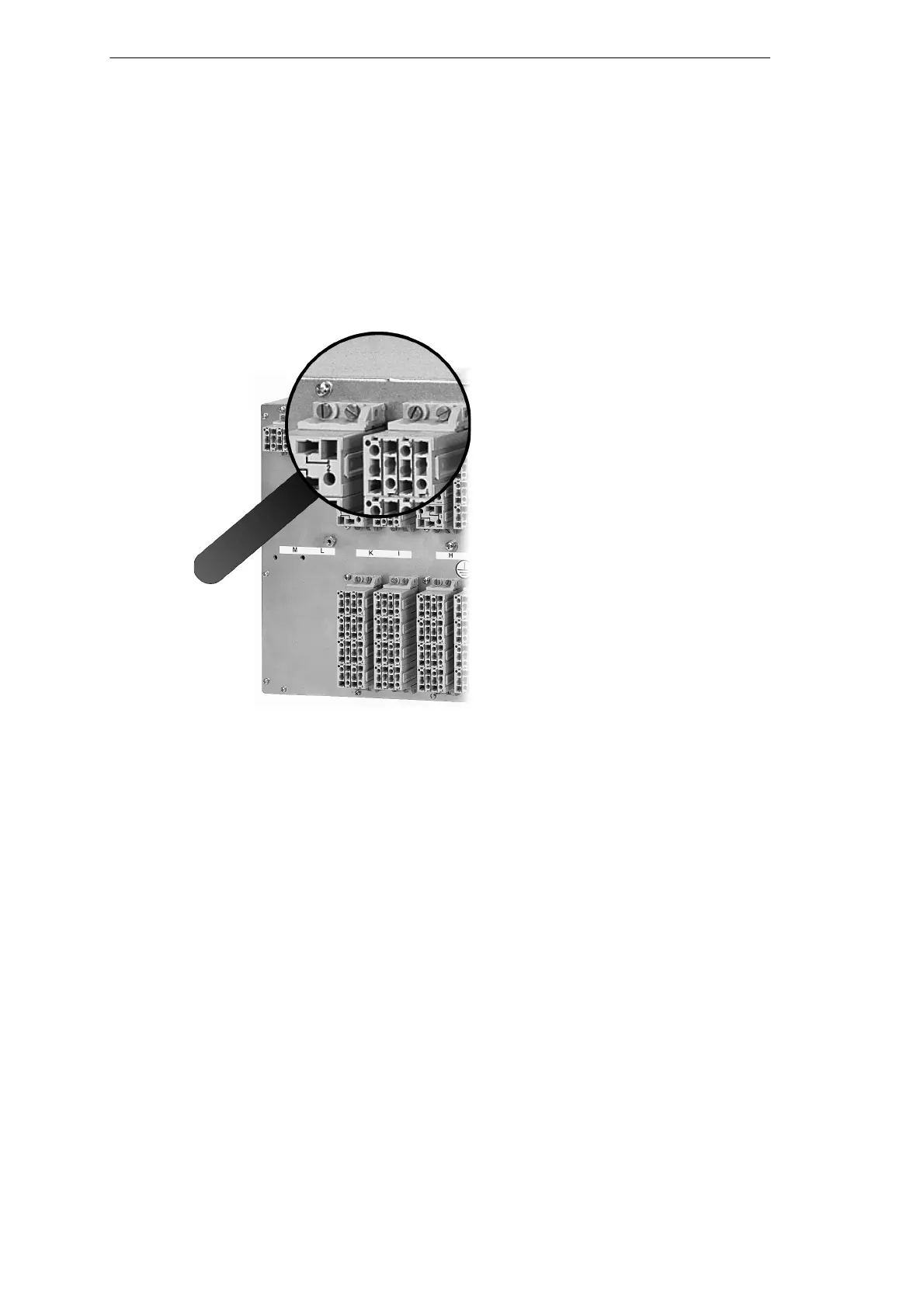

Figure 14-2 View of the adapters
