5.2 ”SIMODRIVE 611 universal HRS” control board
5-113
© Siemens AG 2008 All Rights Reserved
SIMODRIVE 611 Configuration Manual (PJU) – 05/2008 Edition
5.2.1 Control board for 1 or 2 axes
The following 2–axis control boards are available:
Mounting slot for
S Optional TERMINAL module
or
S Optional PROFIBUS DP module
Memory module
S Firmware
S User data
Pulse interface
The following applies to retaining screws:
Tighten (to establish a good shield contact)
max. torque = 0.8 Nm
2–axis for encoders with sin/cos 1Vpp or
2–axis for resolvers
(refer to Table 5-7)
Equipment bus
Display and operator unit
S Interfaces
S Terminals
S Switches
For plug connections:
Plug connectors with the same number of pins must be
appropriately coded so that they cannot be interchanged (refer to
the index entry ”Coding the mini connectors”).
X302

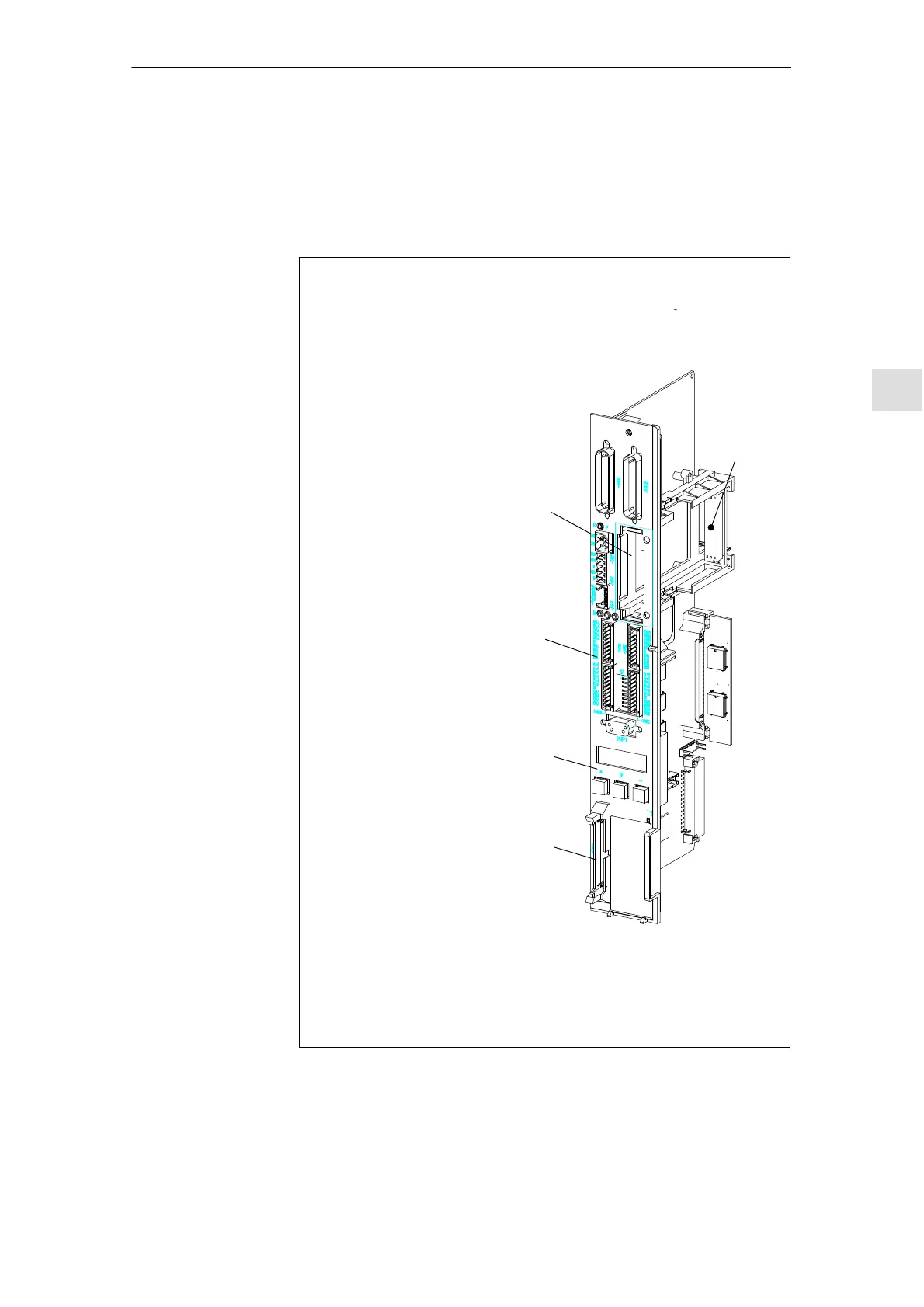

Fig. 5-4 Control boards for 2 axes (SIMODRIVE 611 universal HRS)
Control boards for
2 axes
