2 System Configuration
2
05.01
2.5 Power modules
2-52
© Siemens AG 2008 All Rights Reserved
SIMODRIVE 611 Configuration Manual (PJU) – 05/2008 Edition
2.5.1 Function of the power modules
The power module provides the required energy for the control boards and the
connected motor. The power module is selected depending on the selected
motor and the control board.
2.5.2 Connecting–up the power modules
The power module is grounded through the PE connecting screws.
The power module must be mounted on a grounded, low–resistance conductive
mounting surface and must have a conductive connection to this mounting sur-
face.
Power is fed–in through the DC link busbars.
Type plate/Order No.
50 mm power module
Control unit (refer
to Chapter 5)
Order number
PE

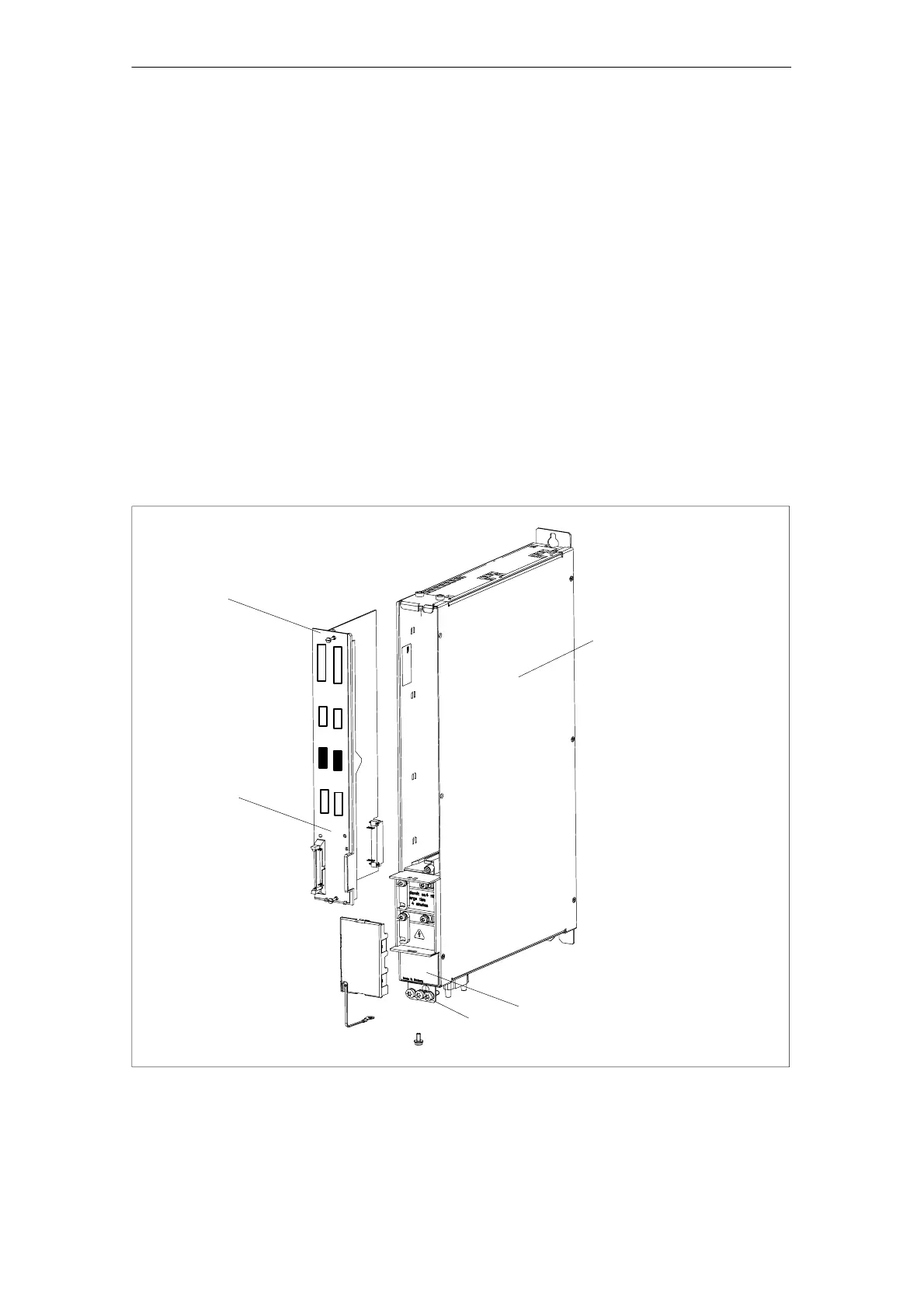

Fig. 2-4 Power module with control unit
Power module
Internal cooling
02.07
