Siemens SIMODRIVE 611 digital - Page 43

2 System Configuration
2
05.01
2.1 Arrangement of the modules and their mounting
2-43
© Siemens AG 2008 All Rights Reserved
SIMODRIVE 611 Configuration Manual (PJU) – 05/2008 Edition
I/R 300 mm PM 50 mm PM 100 mm PM 300 mm PM 50 mm PM 50 mm PM 150 mm PM 150 mm
Other
modules
Subsequent modules
P
ZK
55 kW

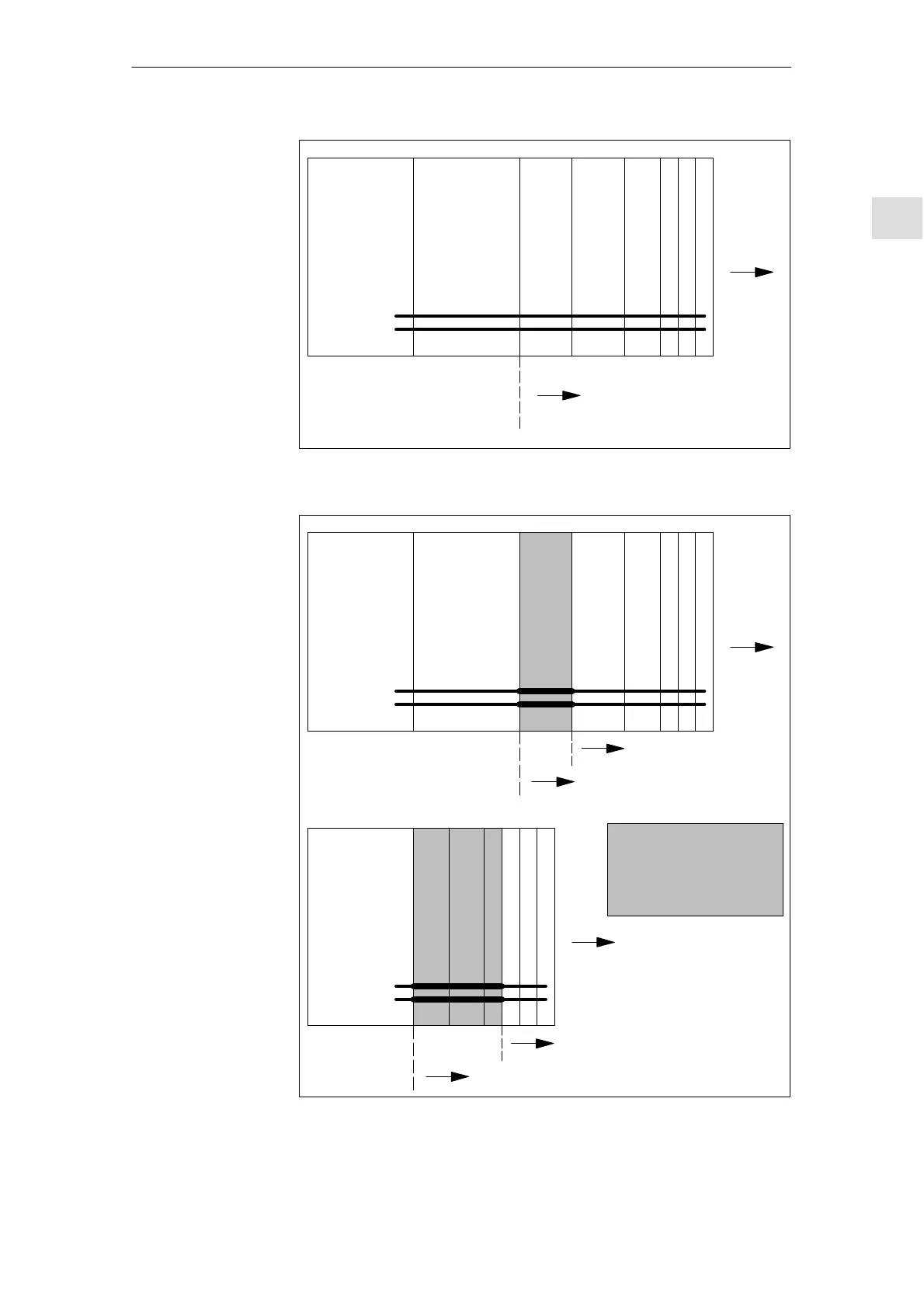

Fig. 2-2 Module group without larger DC link busbars
I/R 300 mm PM 50 mm PM 100 mm PM 300 mm PM 50 mm PM 50 mm PM 150 mm PM 150 mm
Other
modules
P
ZK
55 kW
P
ZK
55 kW
Note:
Reinforced
DC link busbars must be
used in the
modules
I/R 300 mm PM 50 mm PM 100 mm PM 50 mm PM 50 mm
P
ZK
55 kW
P
ZK
55 kW
PM 100 mm PM 50 mm
Other
modules
Fig. 2-3 Module group with larger busbars
