4
05.01
4.1 Description
4-84
© Siemens AG 2008 All Rights Reserved
SIMODRIVE 611 Configuration Manual (PJU) – 05/2008 Edition
The equipment bus cable is included in the scope of supply of the power mod-
ule. The drive bus cables must be ordered separately for the digital system.
The current data of the power modules (PM modules) are normalized values to
which all of the control units refer. The output currents can be limited by the con-
trol unit being used.
!
Caution
After the control unit has been inserted, the retaining screws of the control unit
front panel must be tightened in order to establish a good electrical connection
to the module housing.
Type plate/Order No.
50 mm power module
Control unit
(refer to Chapter 5)
Order number
M3/0.8 Nm
M4/1.8 Nm
PE

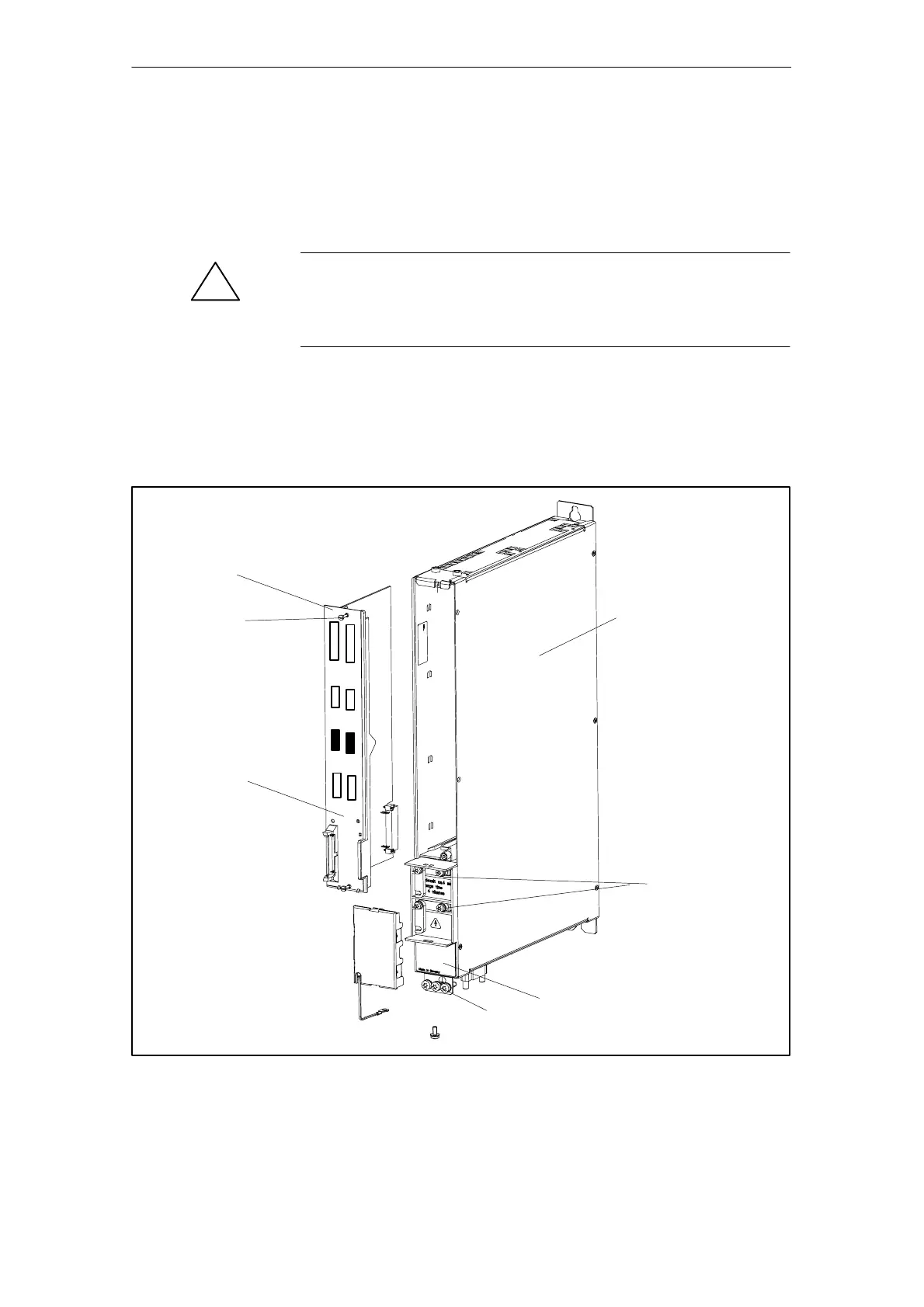

Fig. 4-1 Power module with control unit
Power module,
internal cooling
4 Power Modules 10.0402.07
