5.2 Configuring workflow
1FW6 Built-in torque motors
98 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
Example
A motor should be operated with maximum current from the cold state.
● I
MAX
= 47 A, I
N
= 26 A; this results in ν = 3.268
● t
TH
= 180 s
The motor can be operated for a maximum of 66 s at maximum current.
Intermittent duty S3
With intermittent duty S3, periods of load time Δt
B
with constant current alternate with
periods of downtime Δt
S
with no current feed. The motor heats up during the load time and
then cools down again while at standstill. After a sufficient number of duty cycles with cycle
duration Δt
Spiel
= Δt
B
+ Δt
S
, the temperature characteristic oscillates between a constant
maximum value T
o
and a constant minimum value T
u
; see figure below.

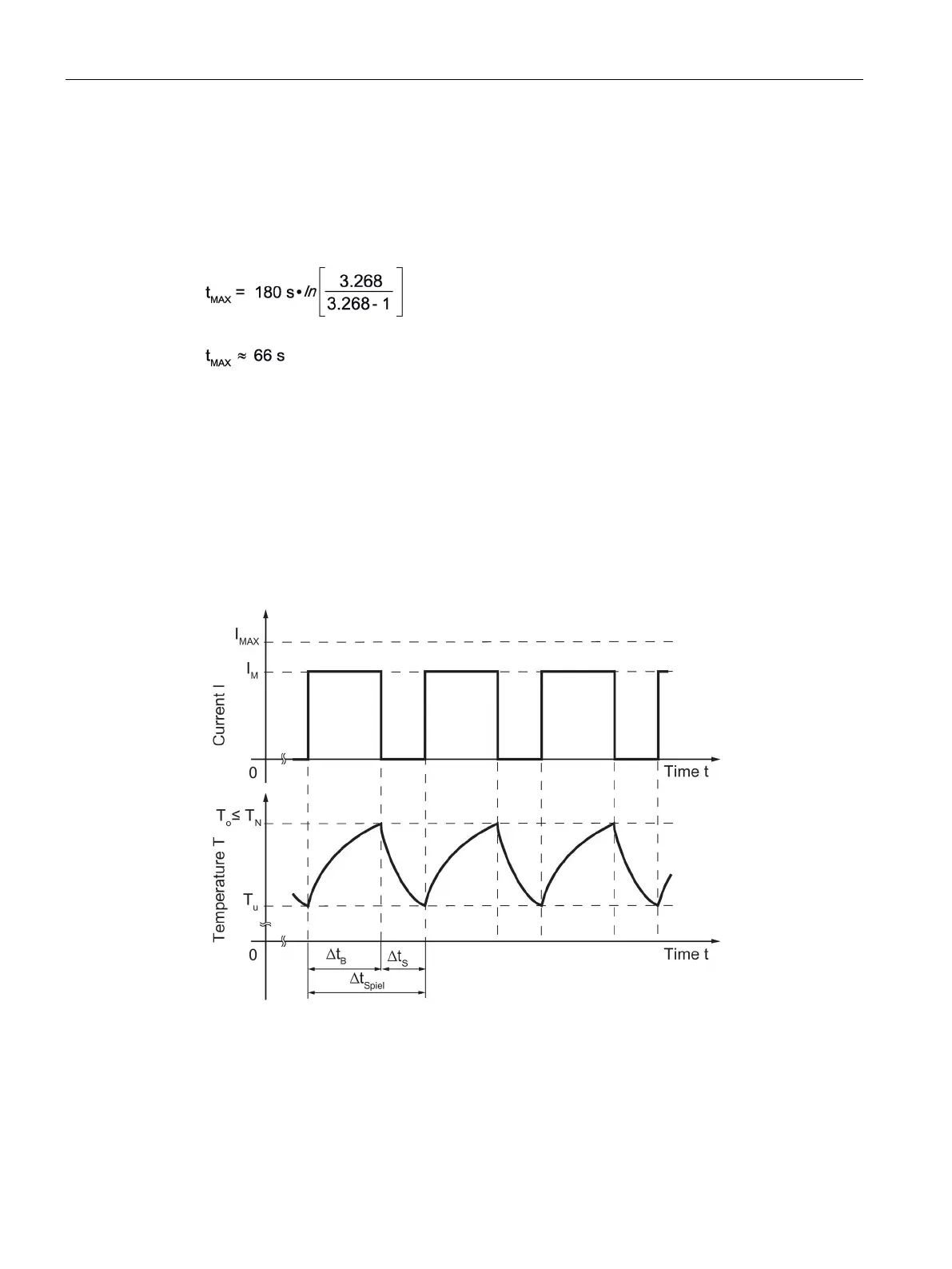

Figure 5-1 Current and temperature characteristic for intermittent duty S3
