Siemens SIMOTICS T-1FW6 Configuration Manual

Technical data and characteristics
6.2 Data sheets and diagrams
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
163
Short-circuit braking torque
For each frame size and active part length, the short-circuit braking torque M
BR
is specified
as characteristic "short-circuit braking torque with respect to speed".

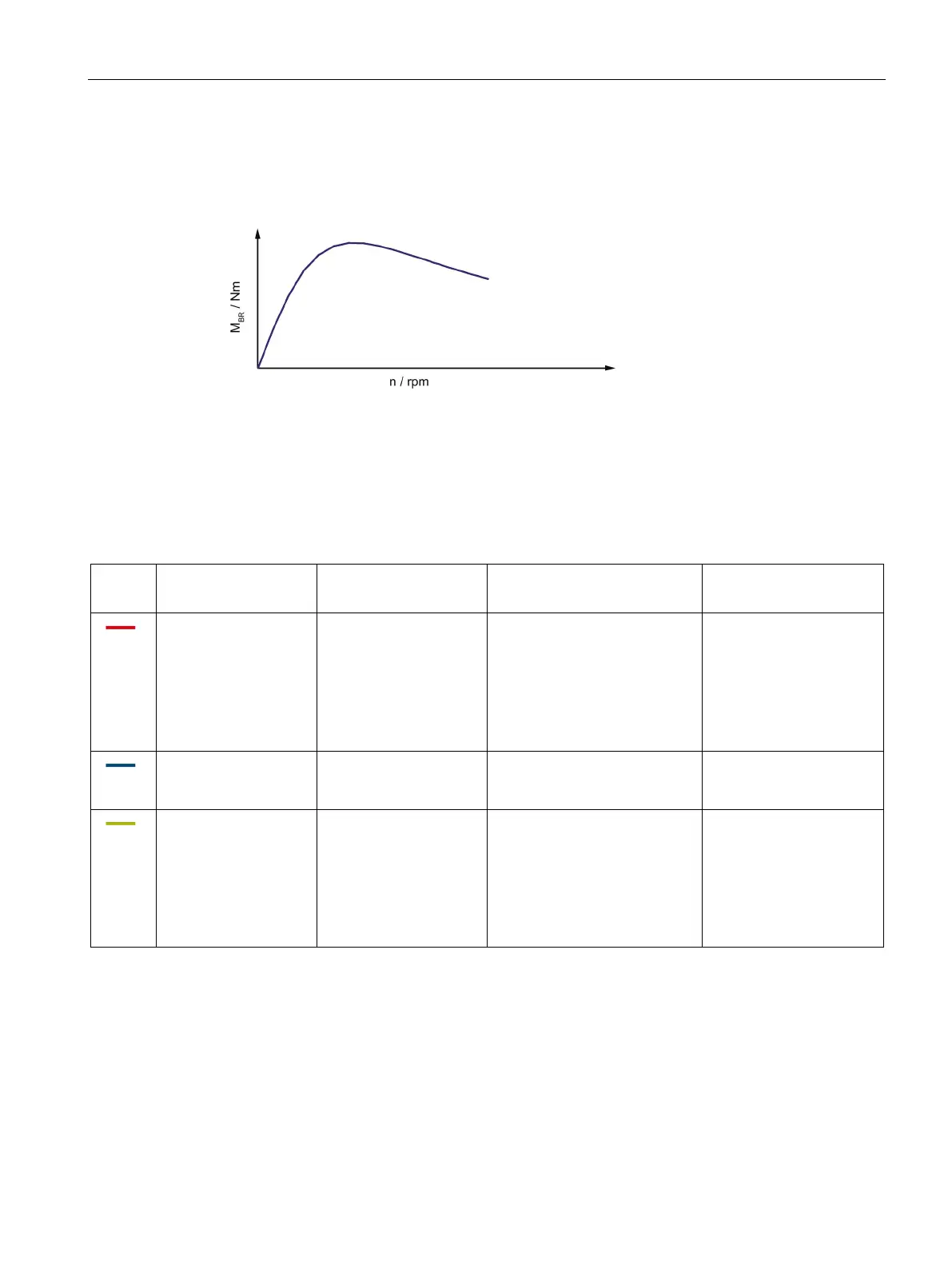

Figure 6-7 Short-circuit braking torque speed diagram (example)
6.2
Data sheets and diagrams
Table 6- 1 Color coding of the M-n characteristics in the diagrams
Color
Resulting DC link
voltage U
DC
Converter output voltage
(rms value) U
a max
Permissible line supply voltage
(rms value)
SINAMICS S120
Line Module
634 V 460 V 3 x AC 480 V Smart Line Module,
uncontrolled with regener-
ative feedback
or
Basic Line Module,
uncontrolled without re-
generative feedback
600 V 425 V 3 x AC 400 V Active Line Module,
controlled with regenera-
tive feedback
528 V 380 V 3 x AC 400 V Smart Line Module,
uncontrolled with regener-
ative feedback
or
Basic Line Module,
uncontrolled without re-
generative feedback
