Description of the motor
2.6 Rating plate data
1FW6 Built-in torque motors
52 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
2.6
Rating plate data
Technical data of the stator is provided on the rating plate (name plate). A second rating
plate is provided loose for the stator.
If, at a certain point in time, the stator and rotor are separated, then you must ensure that the
stator and rotor can be assigned to one another at a later point in time.
Data on the rating plate
Note
The data on the rating plate on
ly applies in conjunction with the corresponding rotor.

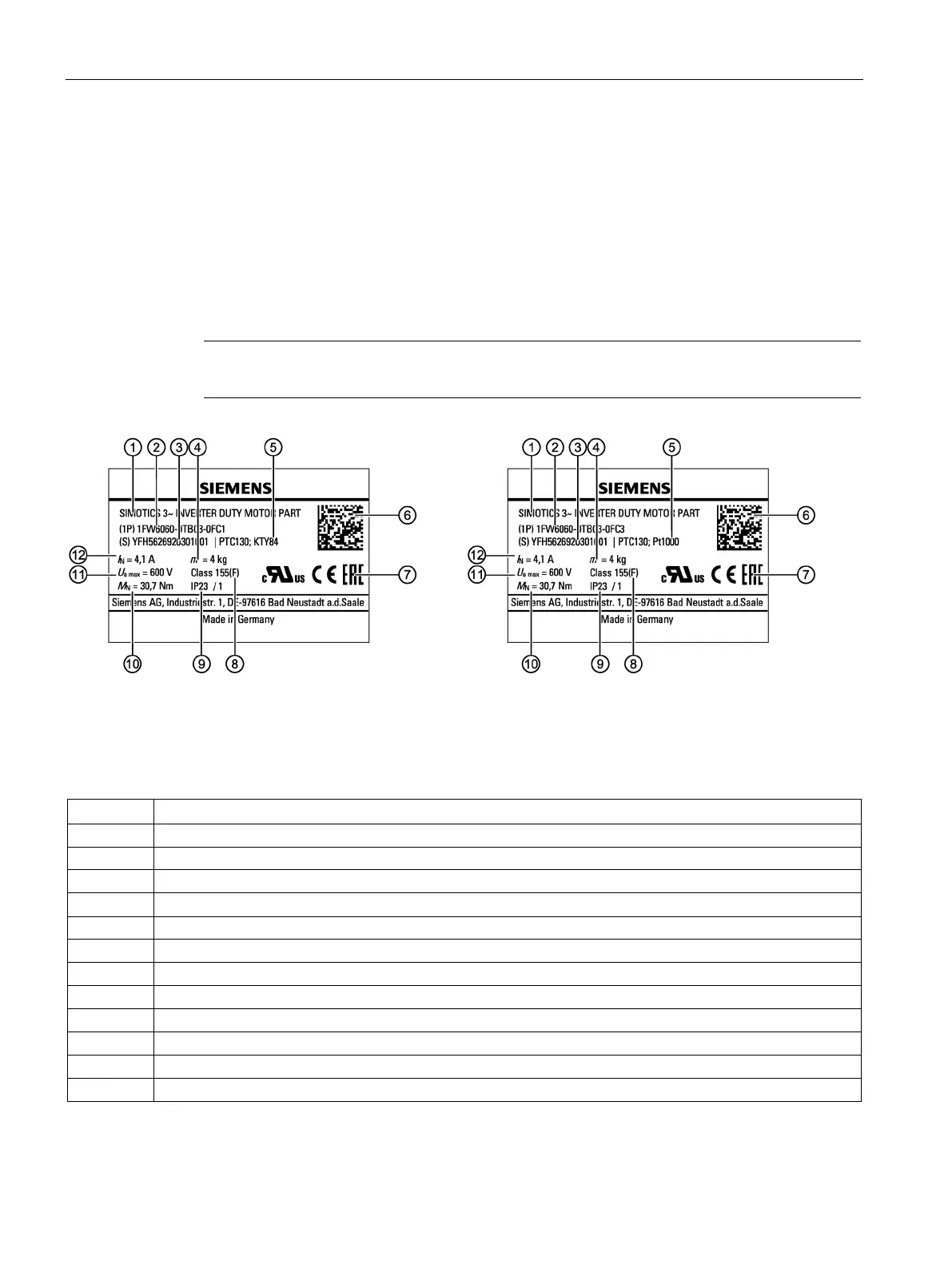

Figure 2-4 Examples of rating plates for 1FW6 built-in torque motors
Table 2- 8 Data on the rating plate for 1FW6 built-in torque motors
Position
Description
1
Type of motor
2
Article No.
3
Serial number
4 Weight
5
Temperature sensors
6 2D code, contains the motor data
7
Approvals/conformities
8
Temperature class
9
Degree of protection
10
Rated torque M
N
11
Maximum permissible rms value of the motor terminal voltage U
a max
12
Rated current I
N
