Configuration
5.4 Installation
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
125
5.4.4
Specifications relating to the mounting side
Permissible mounting side
Note
As a result of the design, the following motors may only be mounted at the A flange.
Table 5- 5 Mounting at the A flange
1FW616
1FW619
1FW623
1FW629
1FW6160-xxB10-2Pxx
1FW6190-xxB10-2Pxx
1FW6230-xxB15-0Wxx
1FW6290-xxB07-2Pxx
1FW6160-xxB15-2Pxx
1FW6190-xxB15-2Pxx
1FW6230-xxB20-0Wxx
1FW6290-xxB11-2Pxx
1FW6160-xxB15-0Wxx
1FW6190-xxB15-0Wxx
1FW6290-xxB15-2Pxx
1FW6160-xxB20-2Pxx
1FW6190-xxB20-2Pxx
1FW6290-xxB20-2Pxx
1FW6160-xxB20-0Wxx
1FW6190-xxB20-0Wxx

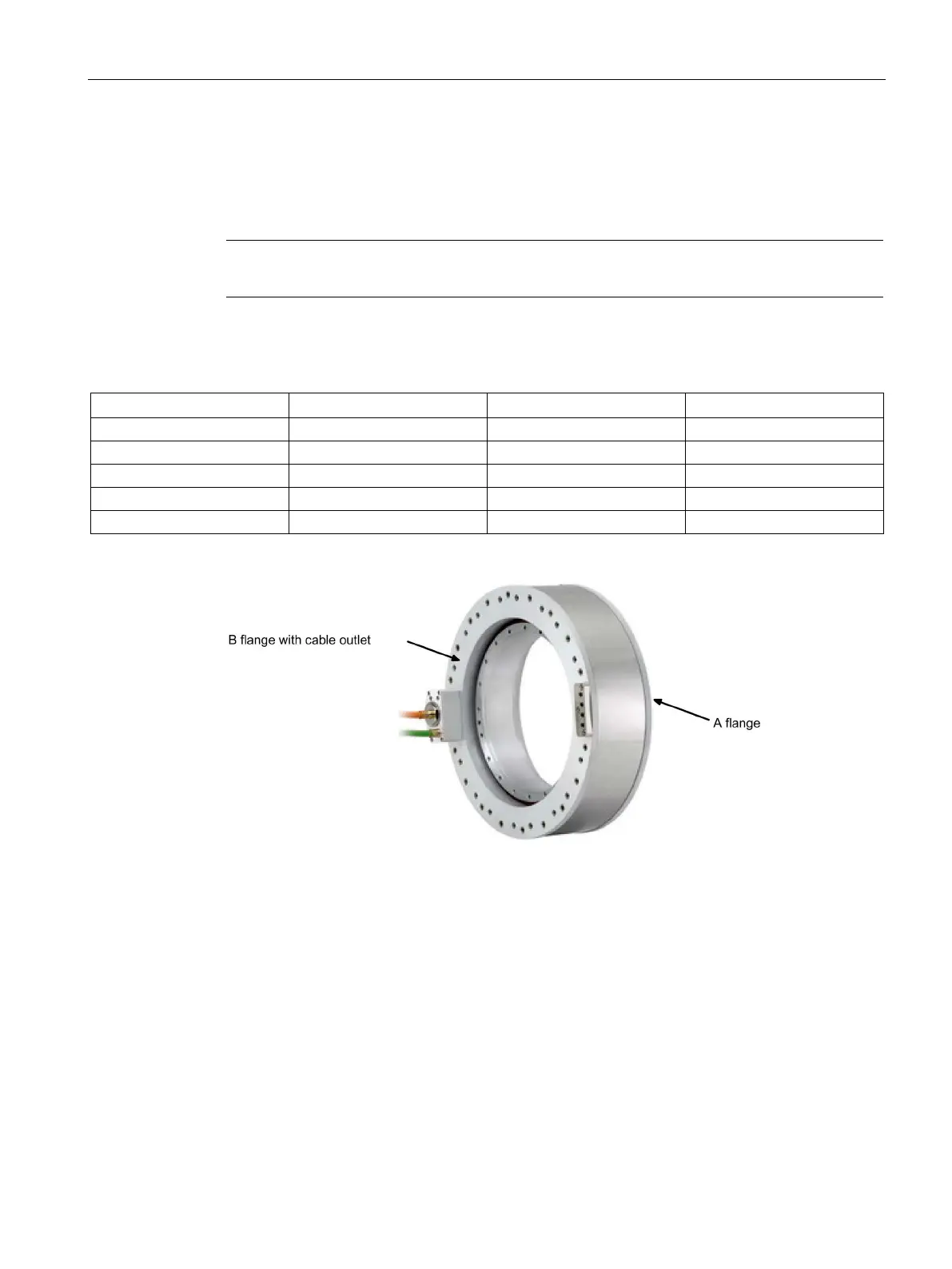

Figure 5-13 A flange and B flange
