Siemens SIMOTICS T-1FW6 Configuration Manual

Description of the motor
2.3 Technical features and ambient conditions
1FW6 Built-in torque motors
38 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
2.3.6
Scope of delivery
2.3.6.1
Built-in torque motor with a cooling jacket
● The rotor is secured in the stator by means of transport locks and is protected using a
spacer film
● Stator with a cooling jacket; one cable for the power connection and one cable for the
signal connection with connector or open core ends
● Transportation locks with spacers and screws
● O-rings (quantity: 2)
● Rating plate (attached); additional loose rating plate
● Safety instructions
2.3.6.2
Built-in torque motor with integrated cooling
● The rotor is secured in the stator by means of transport locks and is protected using a
spacer film
● Stator with ready-to-connect cooling system; one cable for the power connection and one
cable for the signal connection with connector or open conductor ends
● Transportation locks with spacers and screws
● Rating plate (attached); additional loose rating plate
● Safety instructions
2.3.6.3
Supplied pictograms
To warn of hazards, the following durable adhesive stickers are supplied:

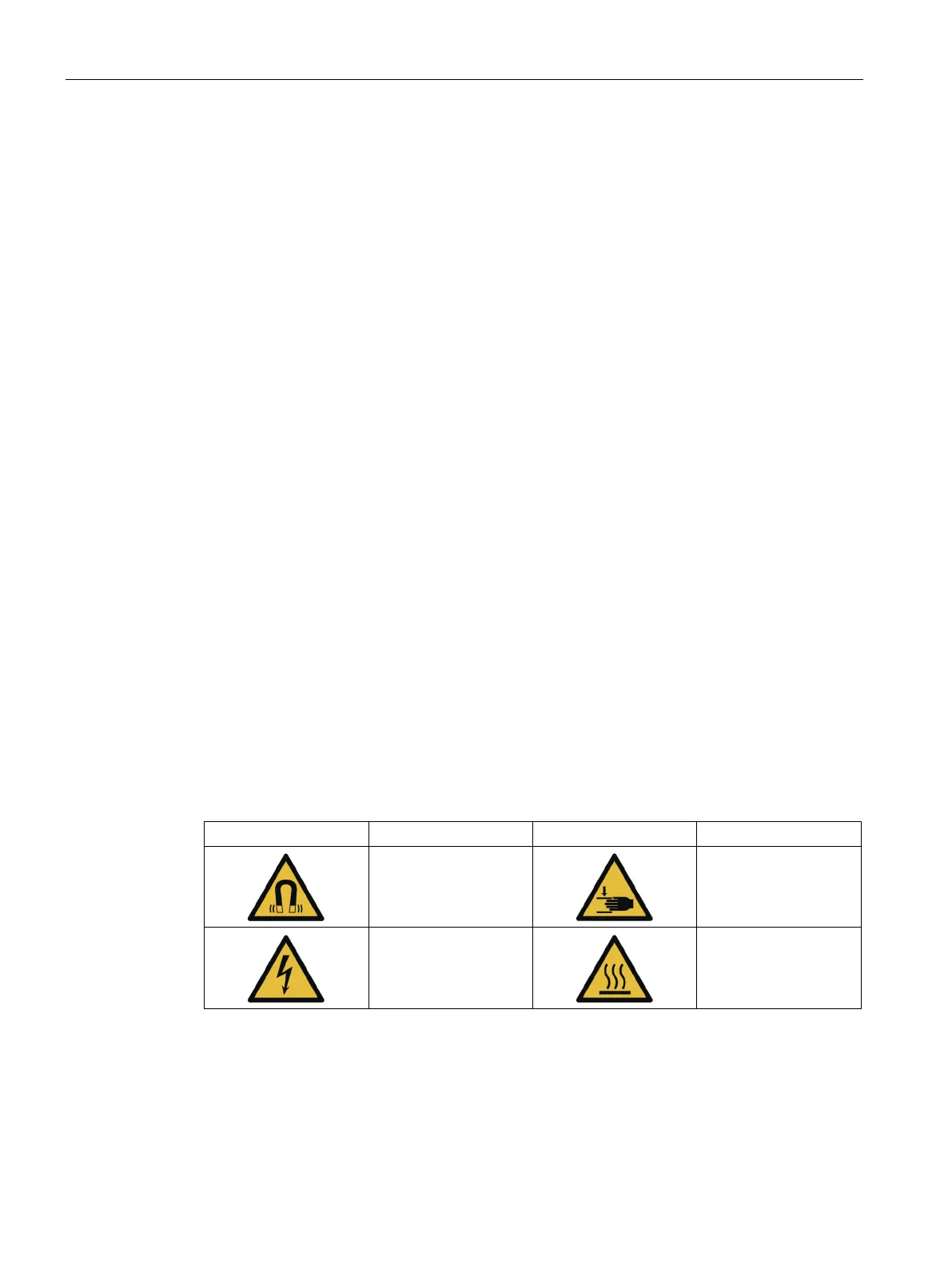

Table 2- 3 Warning signs provided according to BGV A8 and EN ISO 7010 and their significance
Sign
Meaning
Sign
Meaning
Warning against
magnetic field
(W006)
Warning against
hand injuries
(W024)
Warning against
electric voltage
(W012)
Warning against
hot surface
(W017)
