Siemens SIMOTICS T-1FW6 Configuration Manual

Configuration
5.2 Configuring workflow
1FW6 Built-in torque motors
106 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
5.2.7
Torque-speed requirements
Fulfilling the torque-speed requirements
If the selected torque motor cannot fulfill the torque-speed requirements, the following
options are available:
●
Larger motor
If an operating point in the range A is required, a motor with a larger diameter and/or
longer length is required (see motor 2 in the following diagram).
Advantage: Higher torques are available.
Disadvantage: A larger motor installation space is required.

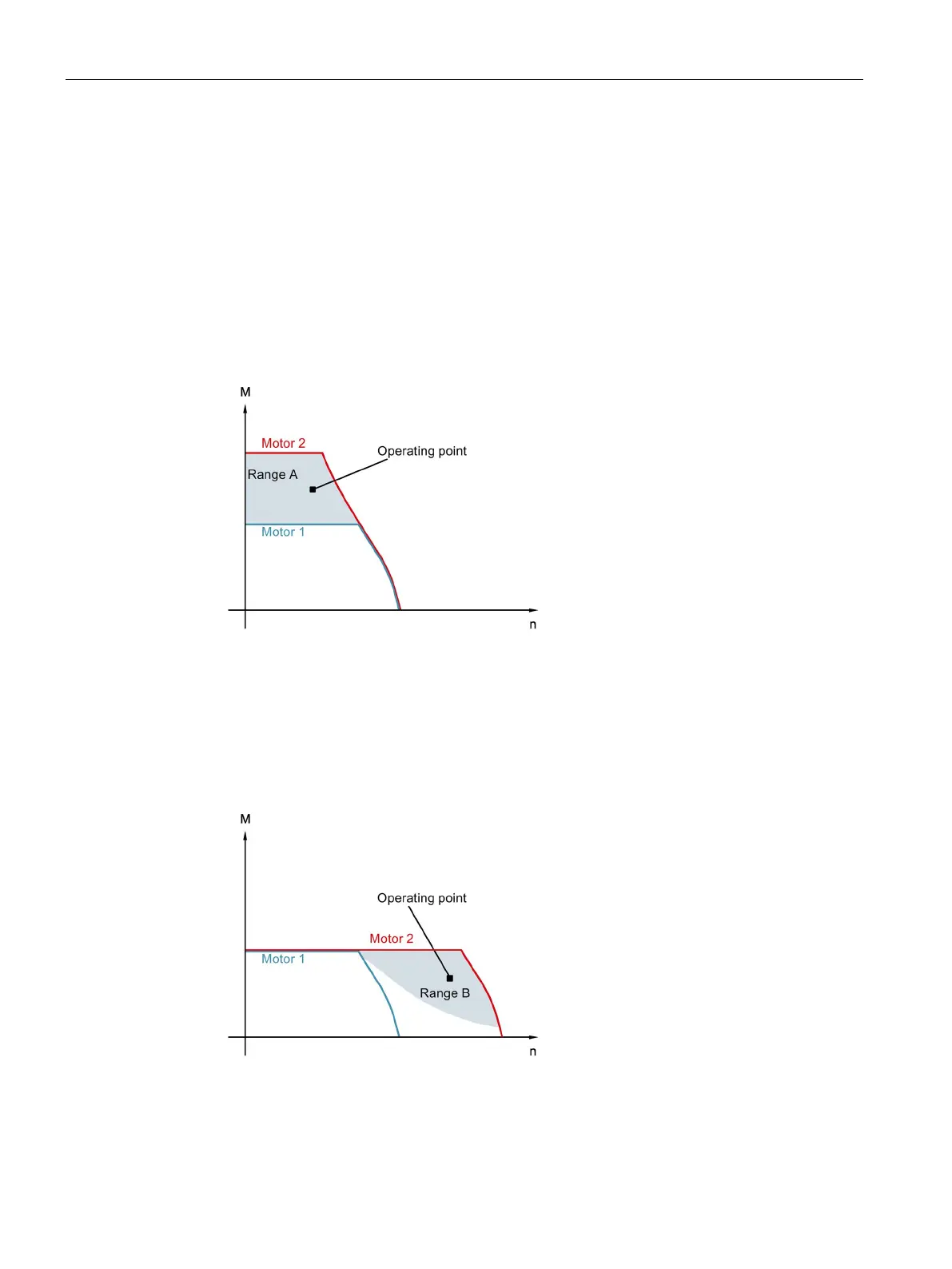

Figure 5-7 Requirement: larger motor
●
Motor with faster winding
If an operating point in the range B is required, a motor with a lower phase inductance is
required (see motor 2 in the following diagram).
Advantage: Higher speeds are possible.
Disadvantage: A higher motor current is required.
Figure 5-8 Requirement: lower phase inductance
