Configuration
5.4 Installation
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
133
Cooling connection adapter (option)

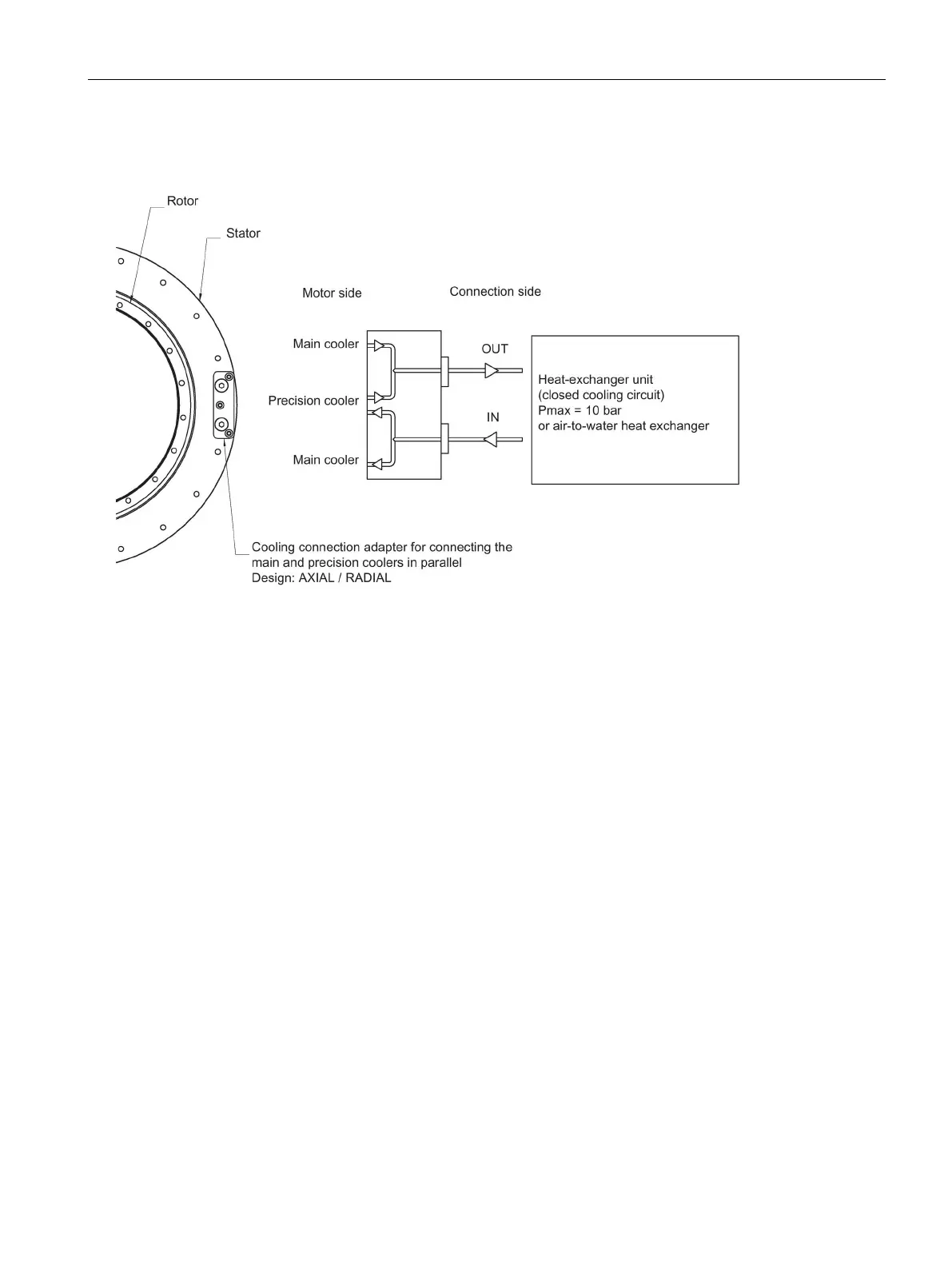

Figure 5-16 Cooling connection adapter (option) for parallel connection of main cooler and precision cooler for 1FW616,
1FW619, 1FW623, 1FW629
