Technical data and characteristics
6.2 Data sheets and diagrams
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
463

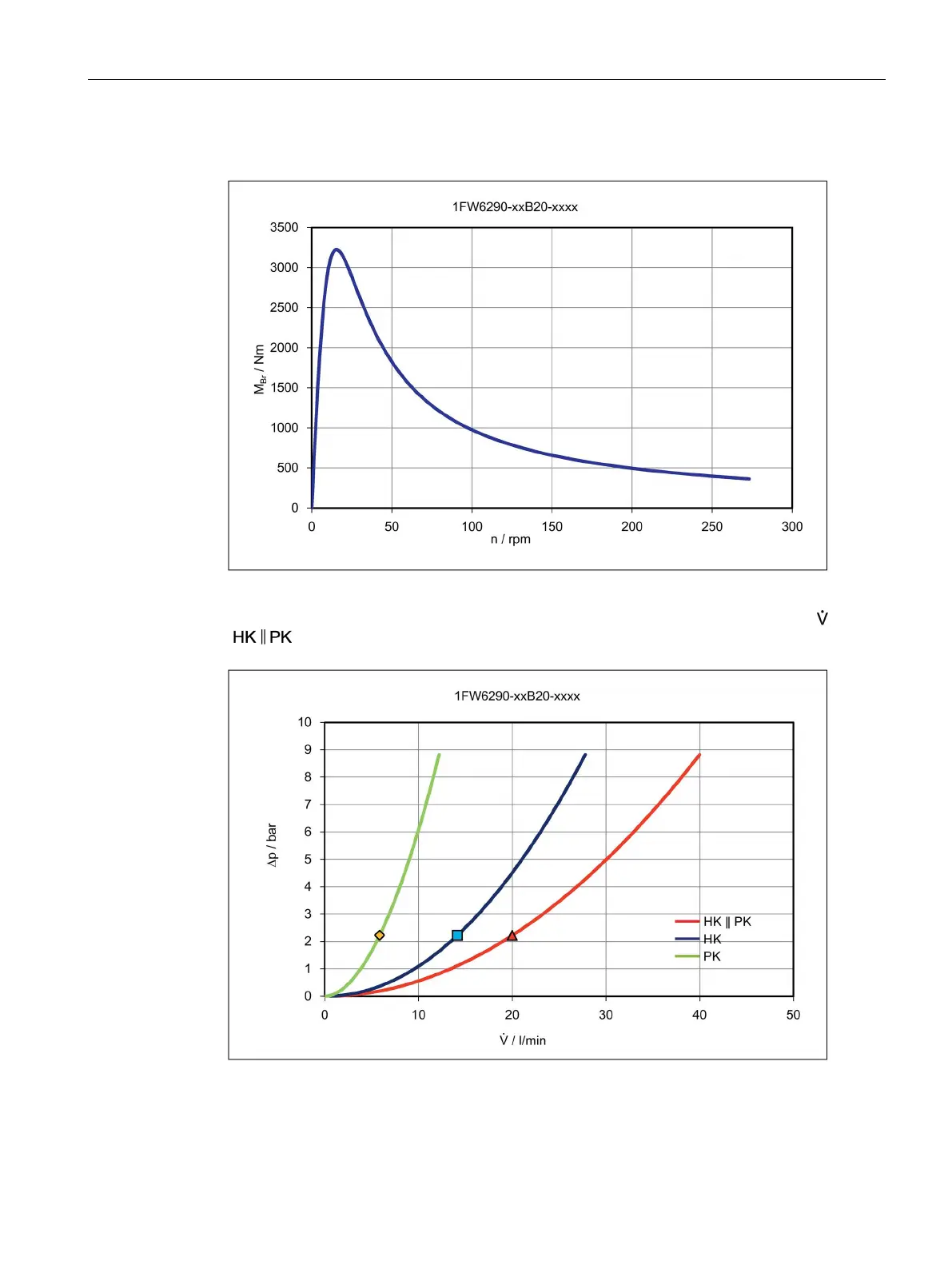

Short-circuit braking torque M
Br
with respect to speed n
Main cooler and precision cooler - pressure losses Δ p with respect to the flow rate
(
: main cooler HK and precision cooler PK connected in parallel)
