Electrical connection
8.3 System integration
1FW6 Built-in torque motors
484 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

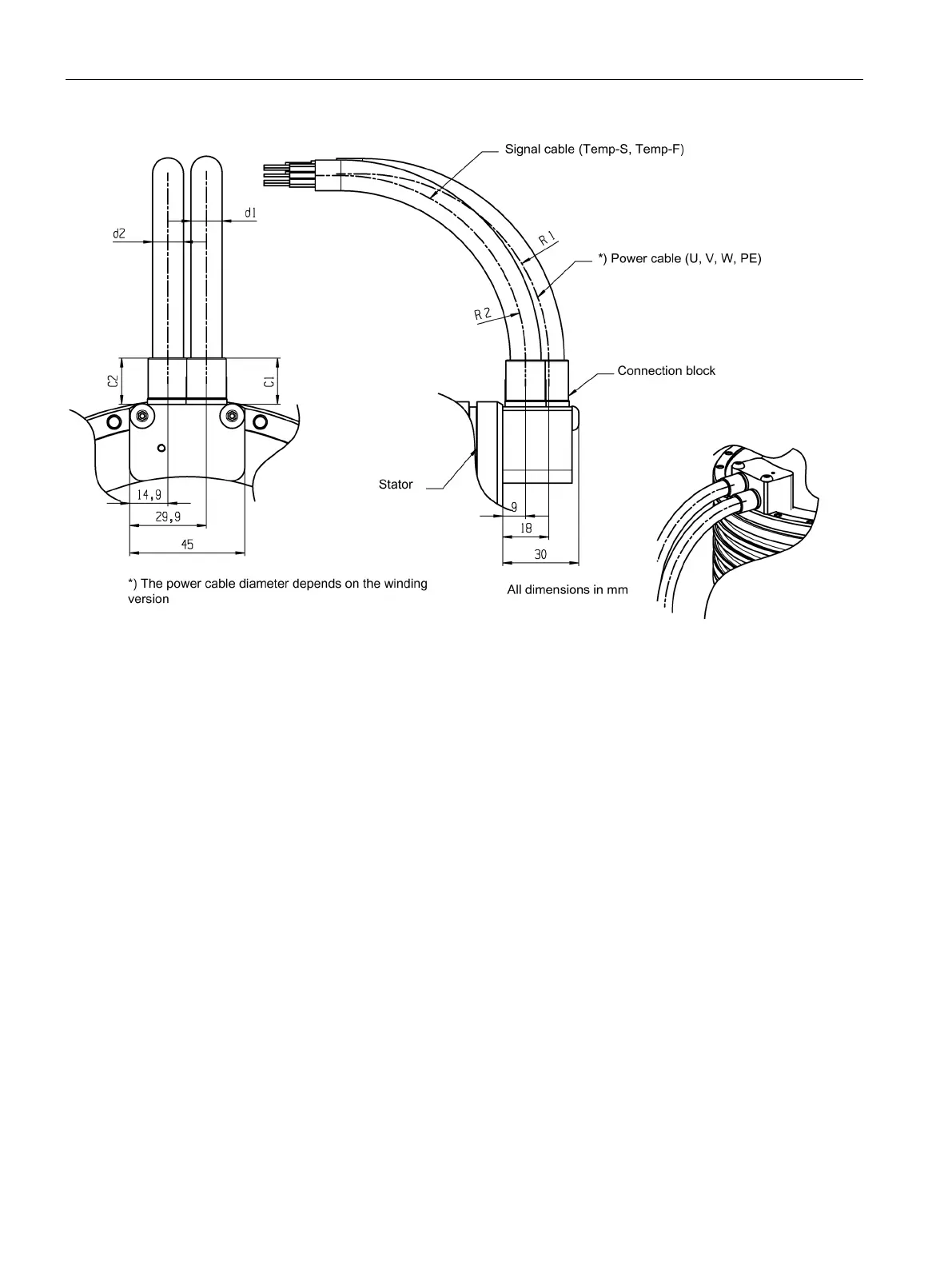

Figure 8-8 Electrical connection (radial, outward) with sleeve for 1FW609
