Electrical connection
8.3 System integration
1FW6 Built-in torque motors
504 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

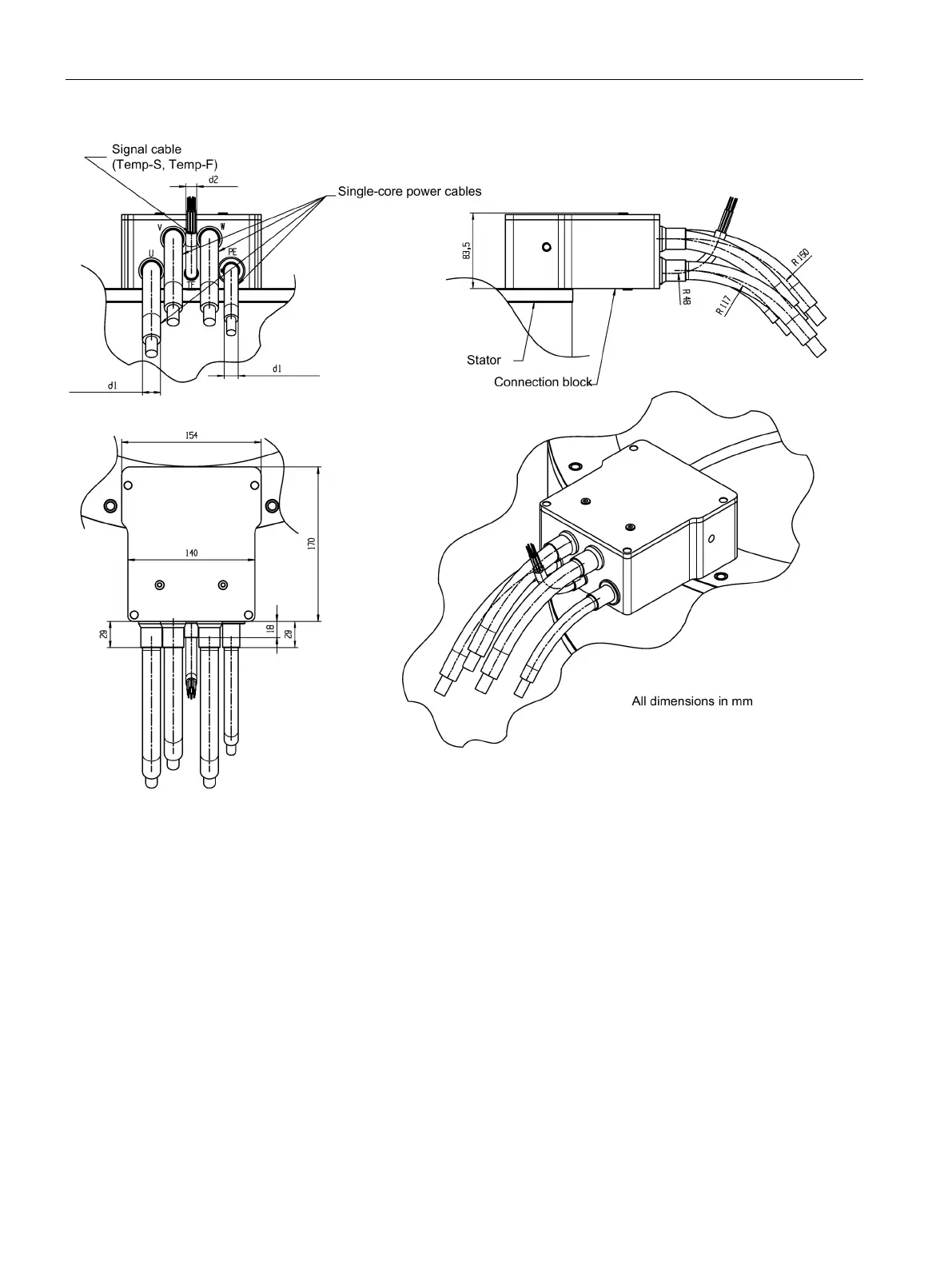

Figure 8-33 Electrical connection (radial, outward) with sleeve and single core for 1FW629, 70 mm
2
core cross-section
