Electrical connection
8.3 System integration
1FW6 Built-in torque motors
514 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

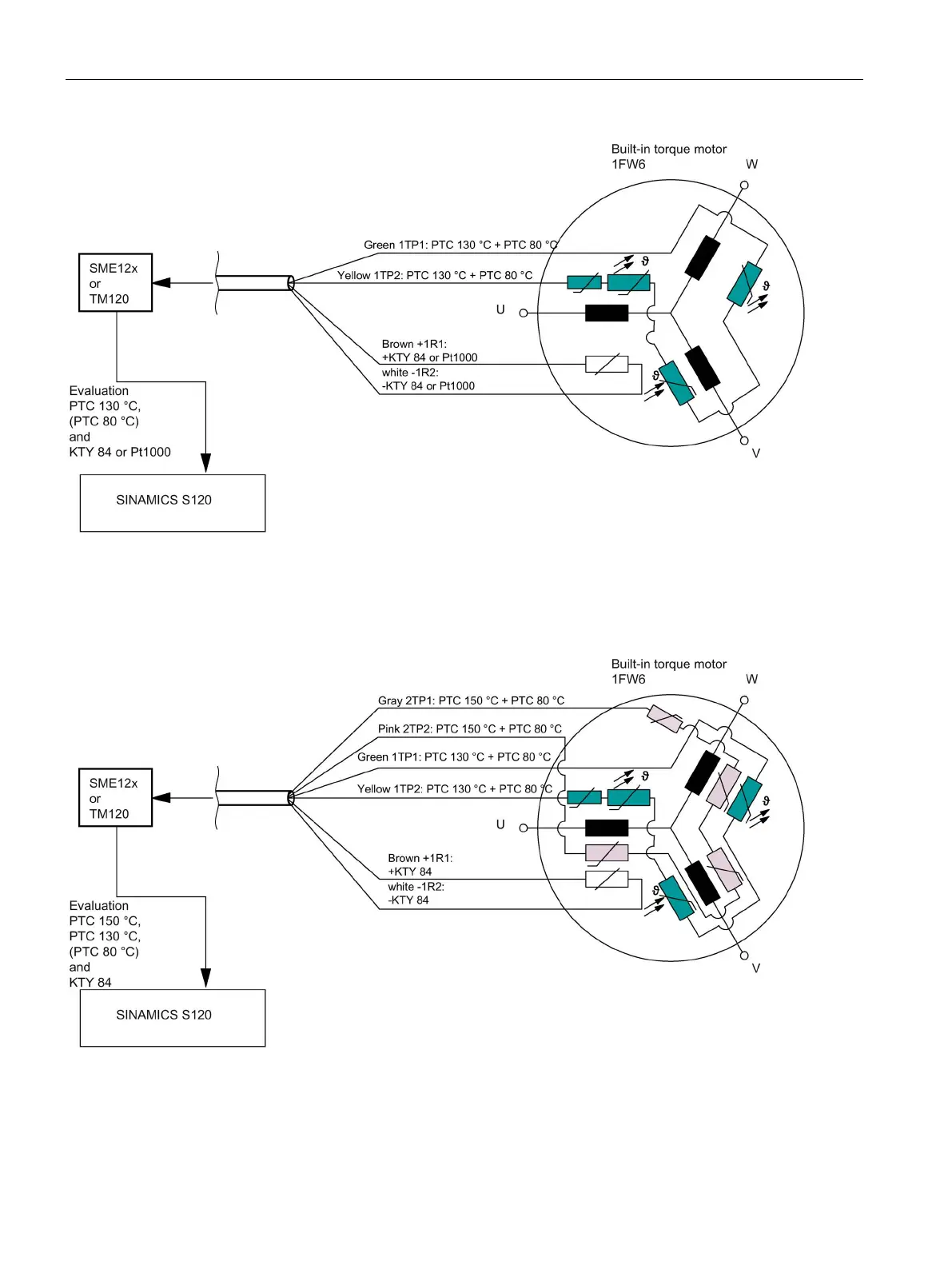

Figure 8-38 Connection overview for 1FW6050xxxxx-xxx1, 1FW6050xxxxx-xxx3,1FW6060xxxxx-xxx1,
1FW6060xxxxx-xxx3
The following diagram shows a connection overview for frame sizes 1FW609 to 1FW629
with connection of the PTC 130 °C and PTC 150 °C via SME12x or TM120.
Figure 8-39 Connection overview for 1FW6090-xxxxx-xxx2 to 1FW6290-xxxxx-xxx2
