9.4 Installation drawing/dimension drawing 1FW6060-xxB
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
529

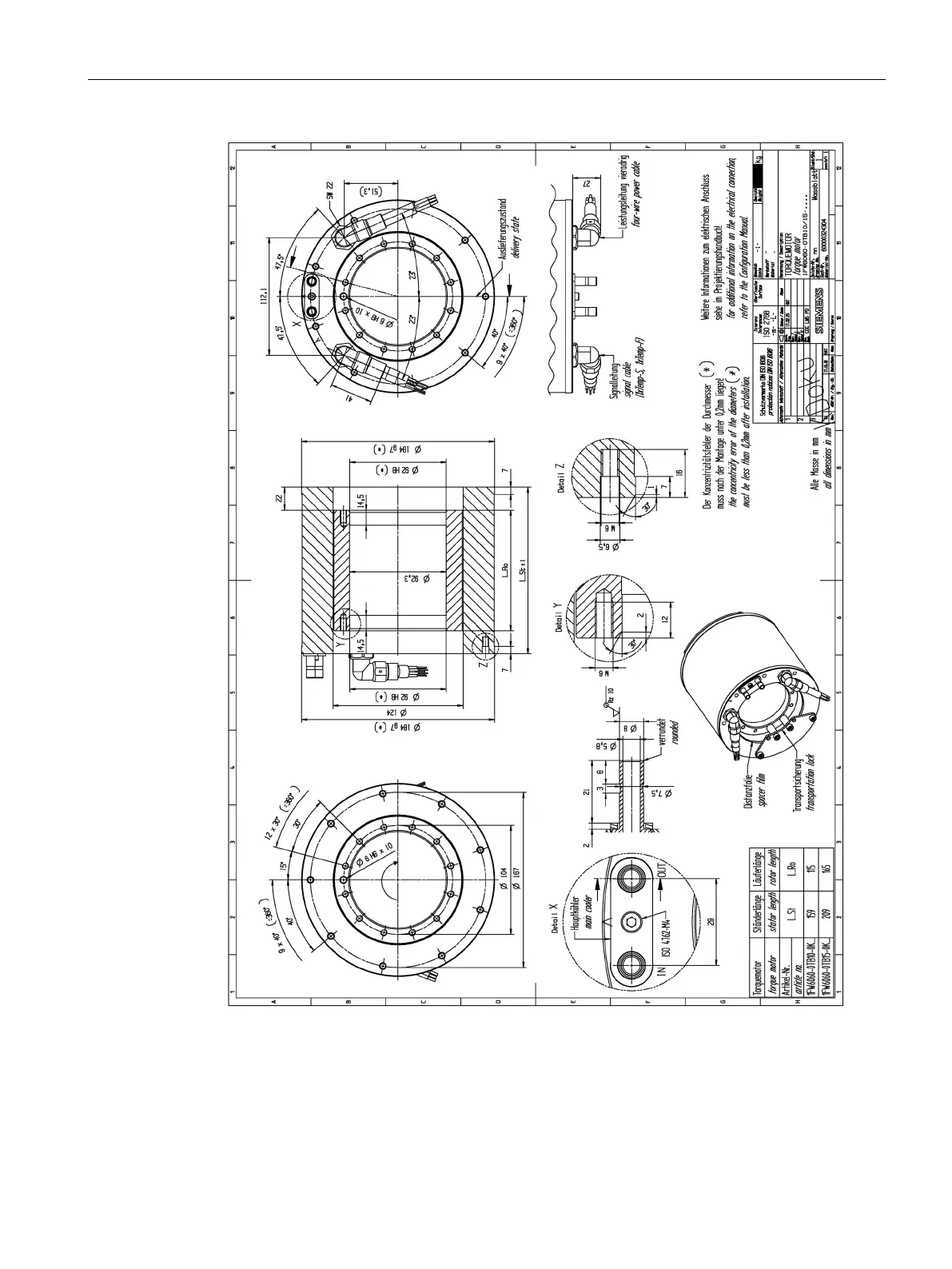

Figure 9-11 1FW6060-xxB (active part length 10 and 15, tangential electrical connection with sleeve)
