Coupled motors
10.4 Connection examples for parallel operation
1FW6 Built-in torque motors
544 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

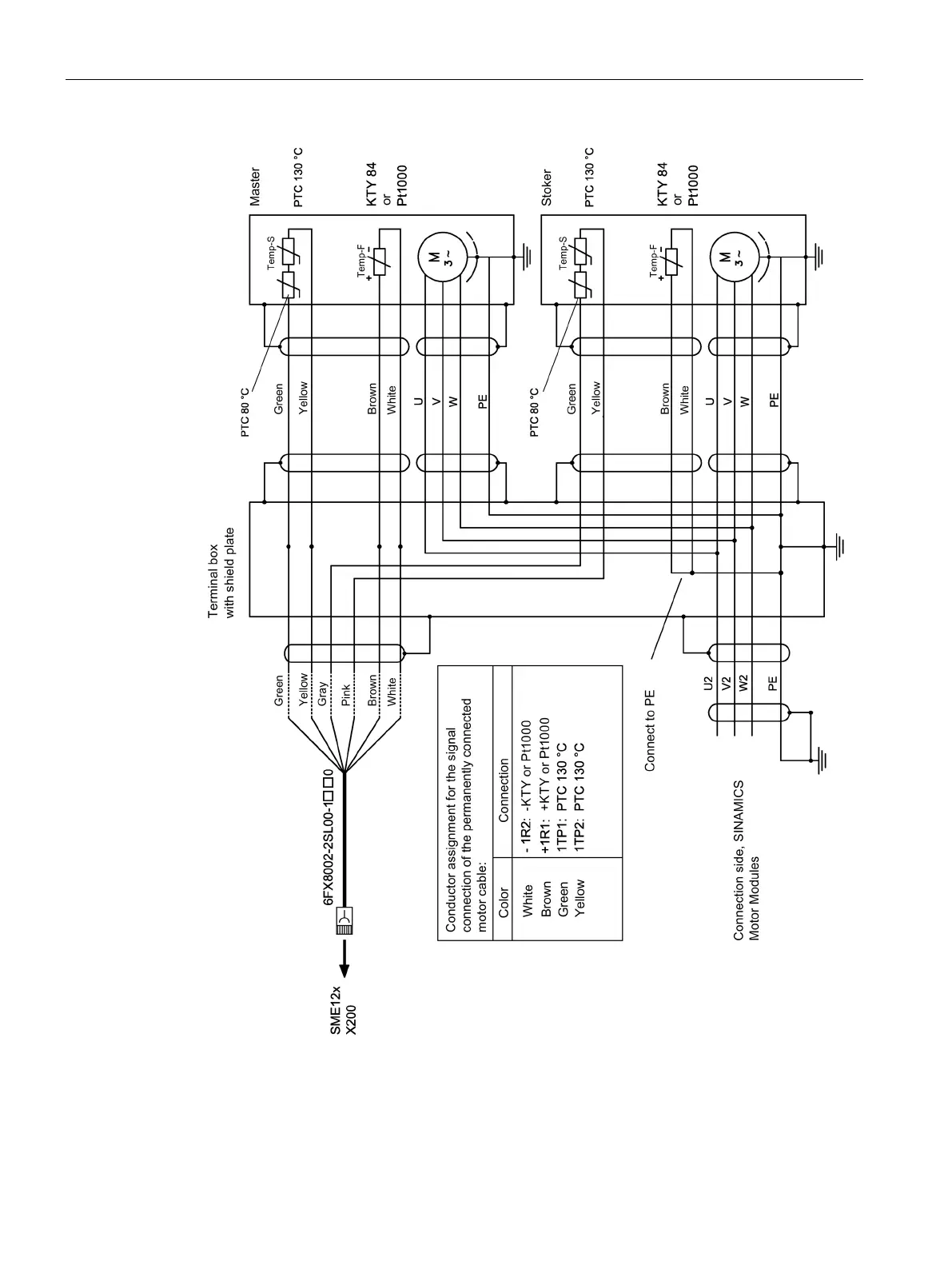

Figure 10-2 Connecting the PTC 130 °C via SME12x
